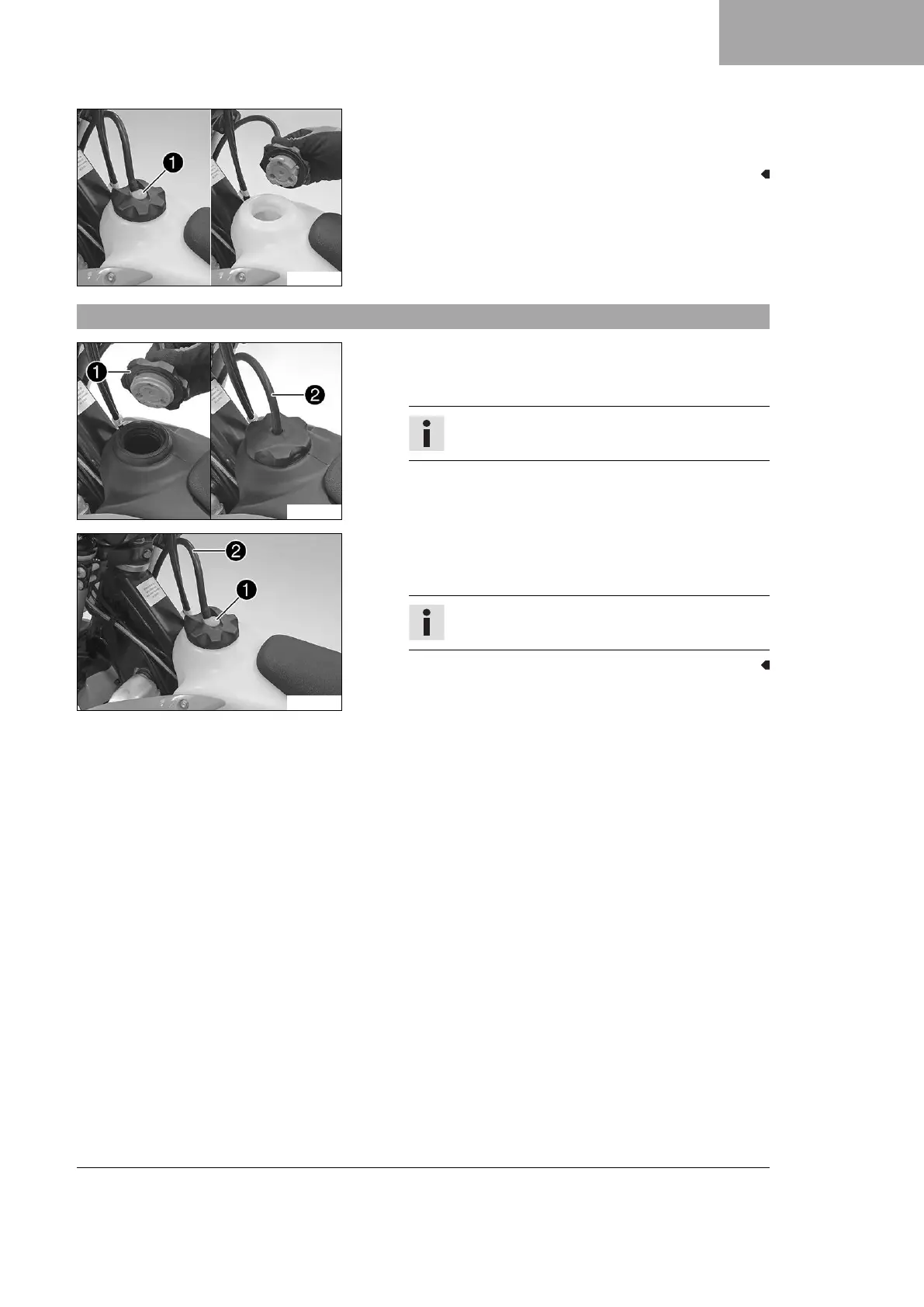

CONTROL
S
6
19
F01557-10
(XC
‑
F
US)
–
Press
release
button
1
,
turn
the
filler
cap
counterclock-
wise,
and
lift
it
off.
6.10
Closing
the
filler
cap
F01519-10
(All
SX
‑
F
models)
–
Mount
filler
cap
1
and
turn
it
clockwise
until
the
fuel
tank
is
tightly
closed.
Info
Route
fuel
tank
breather
hose
2
without
kinks.
F01556-10
(XC
‑
F
US)
–
Replace
the
filler
cap
and
turn
clockwise
until
release
but-
ton
1
locks
in
place.
Info
Route
fuel
tank
breather
hose
2
without
kinks.
20
