Page #93 background imageLoading...
Page #93 background image

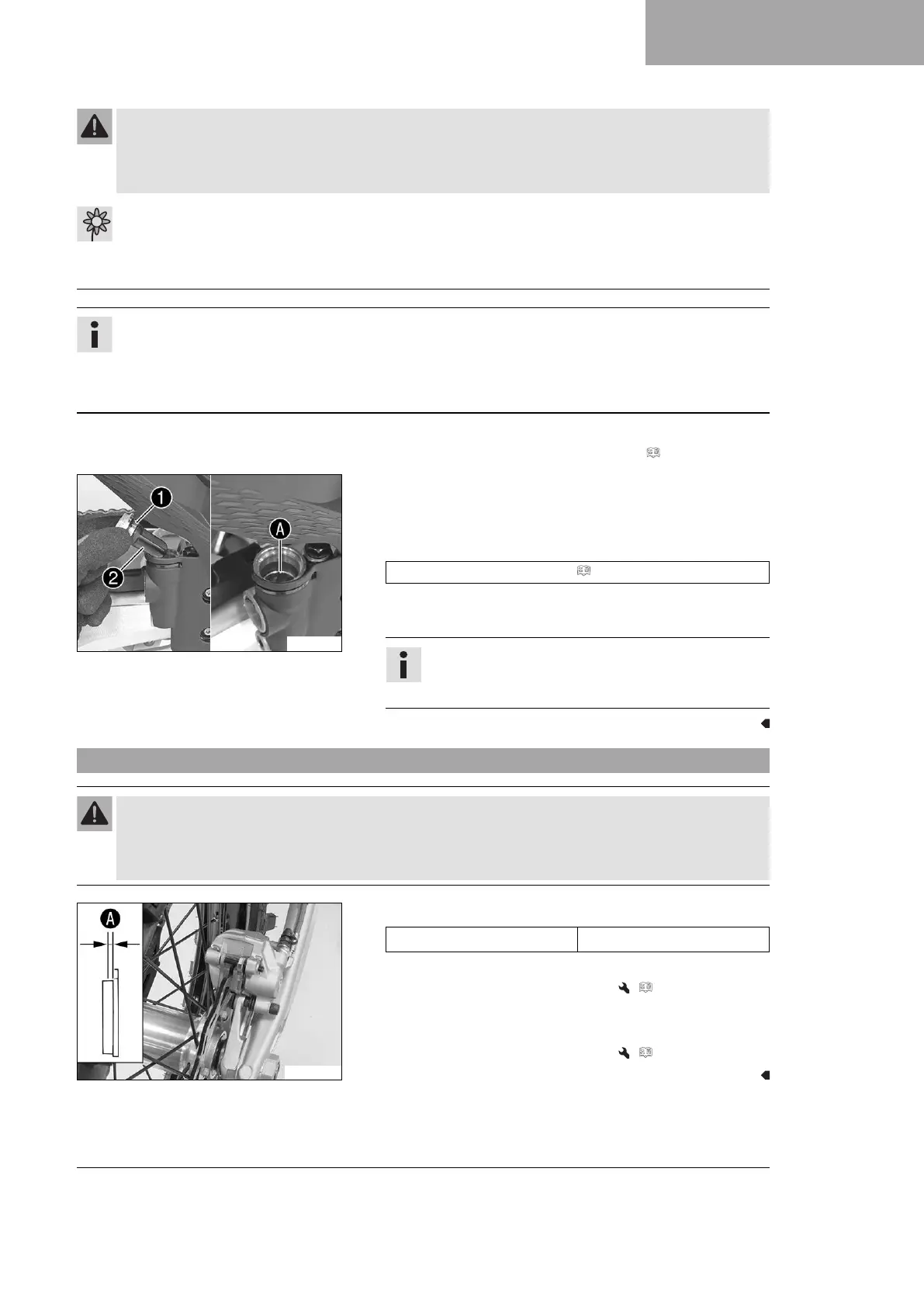

BRAKE SYSTEM 12
91
Warning
Danger of accidentsOld brake fluid reduces the braking effect.
Make sure that brake fluid for the front and rear brake is changed in accordance with the service
schedule. (Your authorized KTM workshop will be glad to help.)
Note
Environmental hazardHazardous substances cause environmental damage.
Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
Preparatory work
Check the brake linings of the rear brake. ( p. 91)
F01546-10
Main work
Stand the vehicle upright.
Remove screw cap
1
with membrane
2
and the O-ring.
Add brake fluid to level
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 138)
Mount and tighten the screw cap with the membrane and O-
ring.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
12.12 Checking the brake linings of the rear brake
Warning
Danger of accidentsWorn-out brake linings reduce the braking effect.
Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
M01180-10
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
1 mm ( 0.04 in)
» If the minimum thickness is less than specified:
Change the rear brake linings. ( p. 92)
Check the brake linings for damage and cracking.
» If damage or wear is encountered:
Change the rear brake linings. ( p. 92)
