11 SERVICE WORK ON THE CHASSIS
54

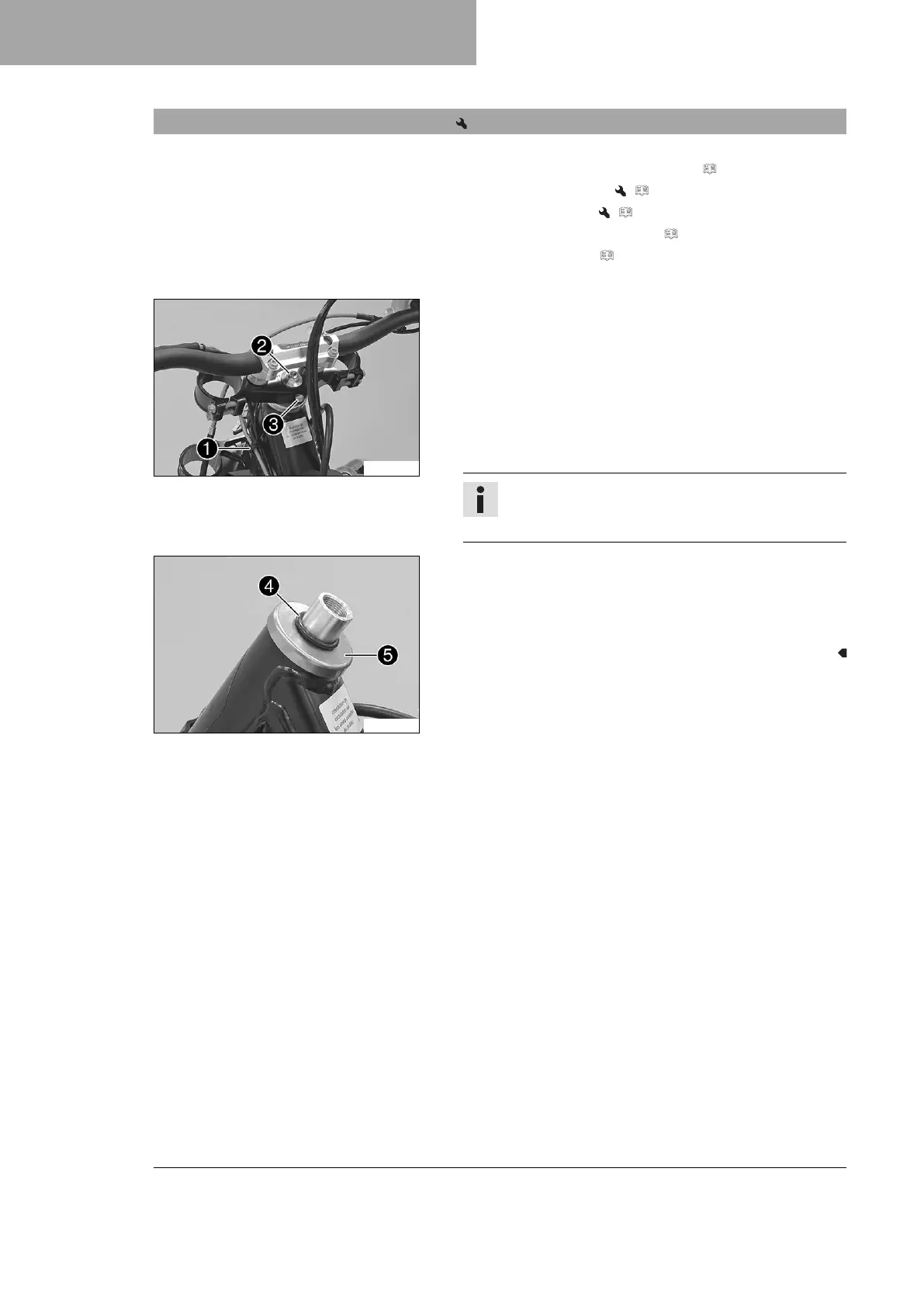

11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 50)
– Remove the front wheel. ( p. 94)
– Remove the fork legs. ( p. 52)
– Remove the start number plate. ( p. 59)
– Remove front fender. ( p. 59)
– Remove the handlebar cushion.
F01561-10
Main work
– Remove indicator lamp holder.
–
Open cable holder
1
on the left and detach the wiring har-
ness.
–
Remove screw
2
.
–
Remove screw
3
.
– Take off the upper triple clamp with the handlebar and place
to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
F01560-10
–
Remove O-ring
4
.
–
Remove protective ring
5
.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
