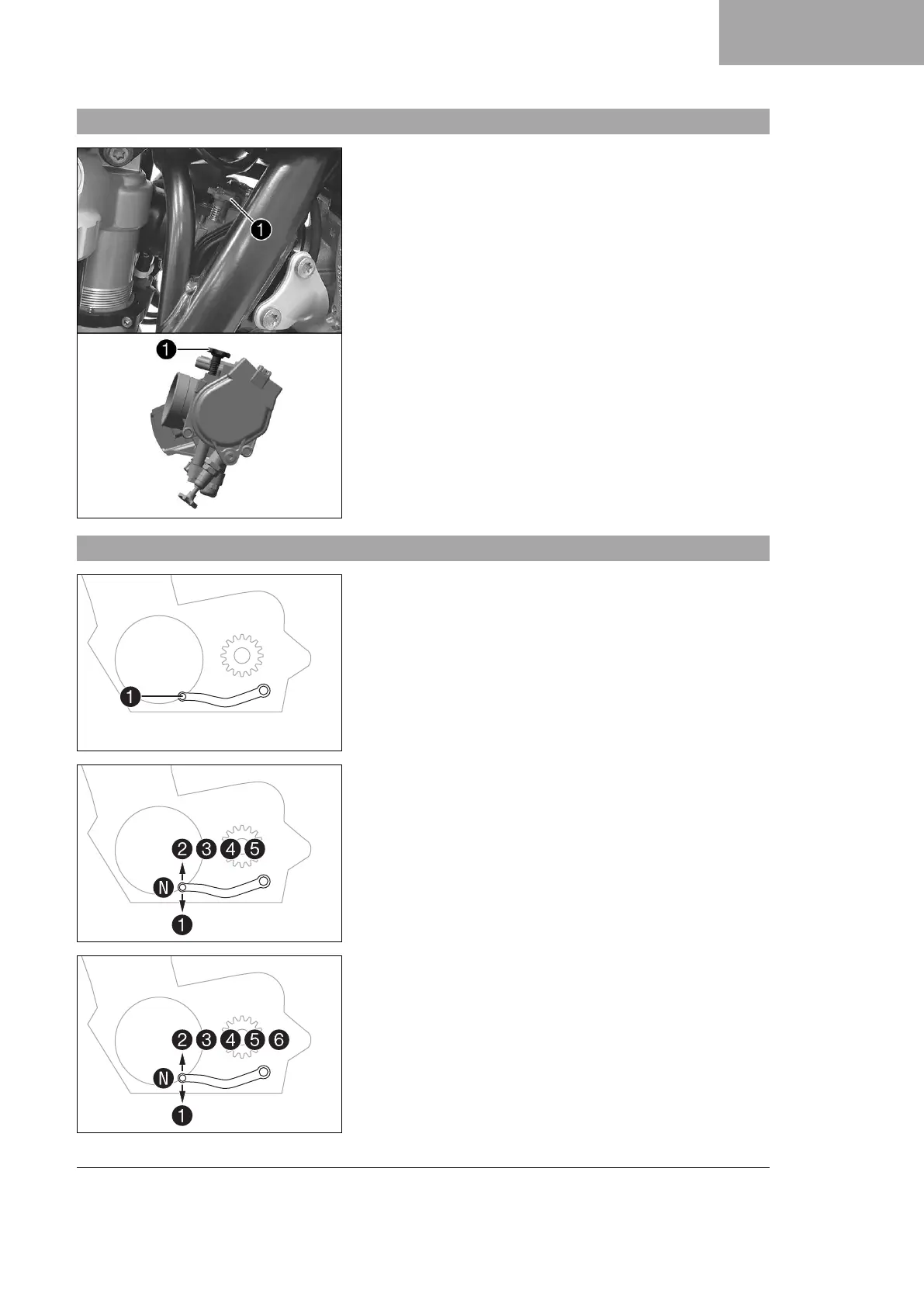

6.12 Idle speed adjusting screw
F01579-10
The idle setting of the throttle valve body has a big influence on
the vehicle's starting behavior, on stable idling, and on vehicle
response when the throttle is opened.
An engine with a correctly set idle speed is easier to start than an
engine with the idle speed set incorrectly.
The idle speed is adjusted with idle speed adjusting screw
1
.
Increase the idle speed by turning the idle speed adjusting screw
clockwise.
Decrease the idle speed by turning the idle speed adjusting screw
counterclockwise.
6.13 Shift lever
401950-10
Shift lever
1
is mounted on the left side of the engine.
401950-13
(All SX‑F models)
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second
gears.
401950-11
(XC‑F US)
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second
gears.
