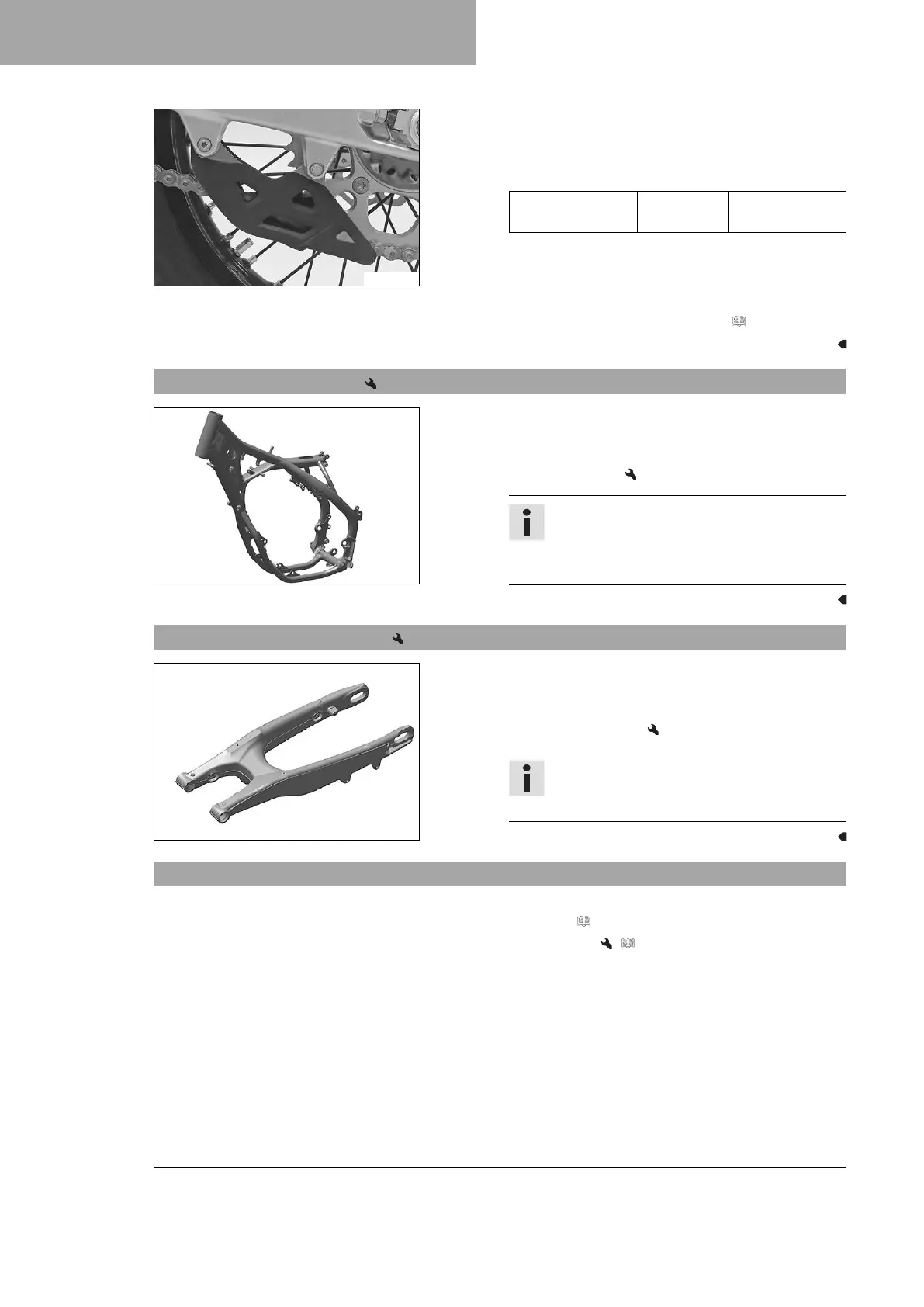

11 SERVICE WORK ON THE CHASSIS
78
F01553-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 50)
11.38 Checking the frame
S02306-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
11.39 Checking the swingarm
S02305-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or defor-
mation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair of
the swingarm is not authorized by KTM.
11.40 Checking the throttle cable routing
Preparatory work
– Remove the seat. ( p. 63)
– Remove the fuel tank. ( p. 69)
