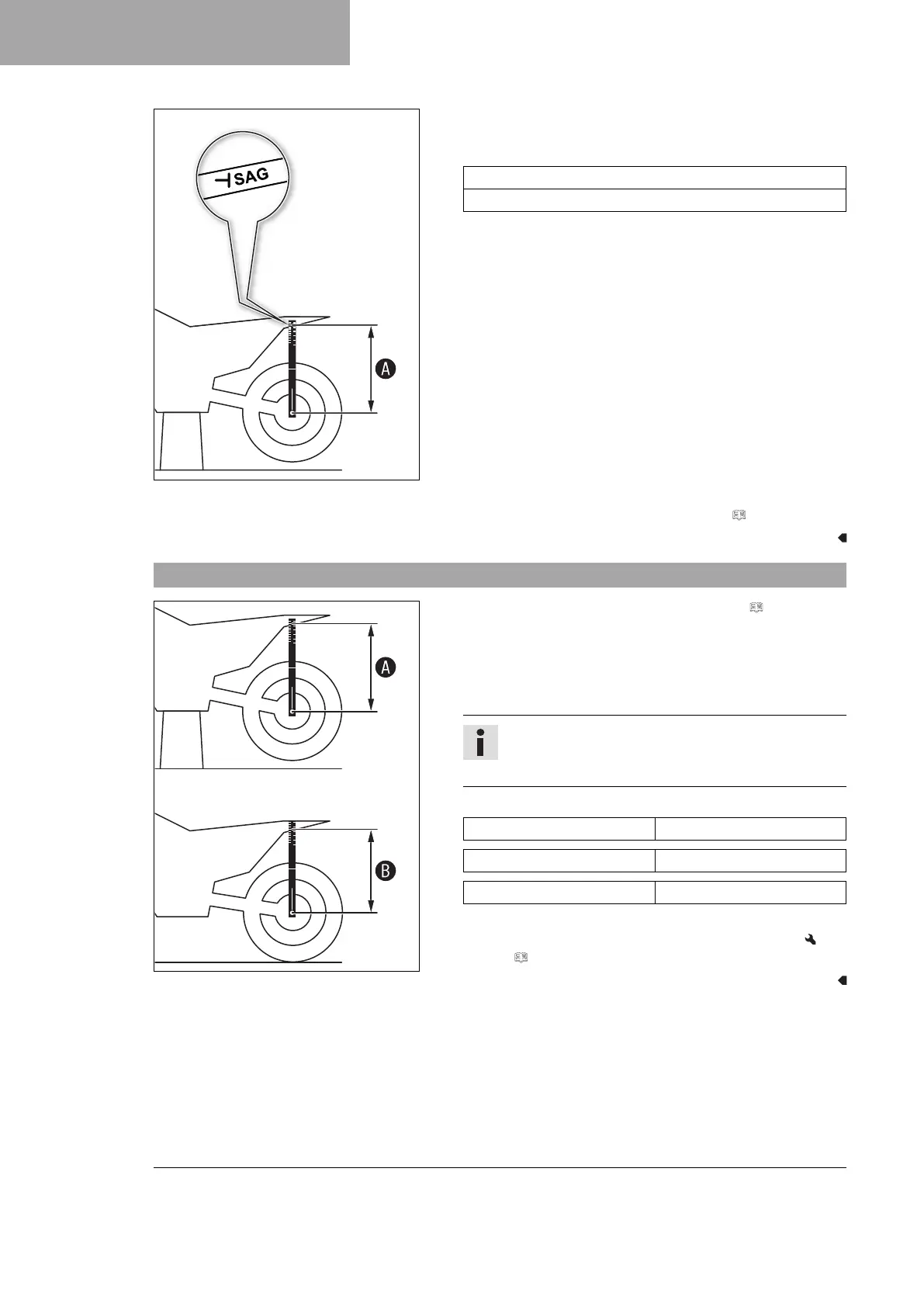

10 TUNING THE CHASSIS
42
402415-10
Main work
Position the sag gauge in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090000)
Pin for sag gauge (00029990010)
Note down the value as dimension
A
.
Finishing work
Remove the motorcycle from the lift stand. ( p. 50)
10.8 Checking the static sag of the shock absorber
402416-10
Measure distance
A
of rear wheel unloaded. ( p. 41)
Hold the motorcycle upright with the aid of an assistant.
Again measure the distance between the rear axle and mark-
ing SAG on the rear fender using the sag gauge.
Note down the value as dimension
B
.
Info
The static sag is the difference between
measurements
A
and
B
.
Check the static sag.
Static sag (SXF EU) 35 mm (1.38 in)
Static sag (SXF US) 35 mm (1.38 in)
Static sag (XCF US) 35 mm (1.38 in)
» If the static sag is less or more than the specified value:
Adjust the spring preload of the shock absorber.
( p. 43)
