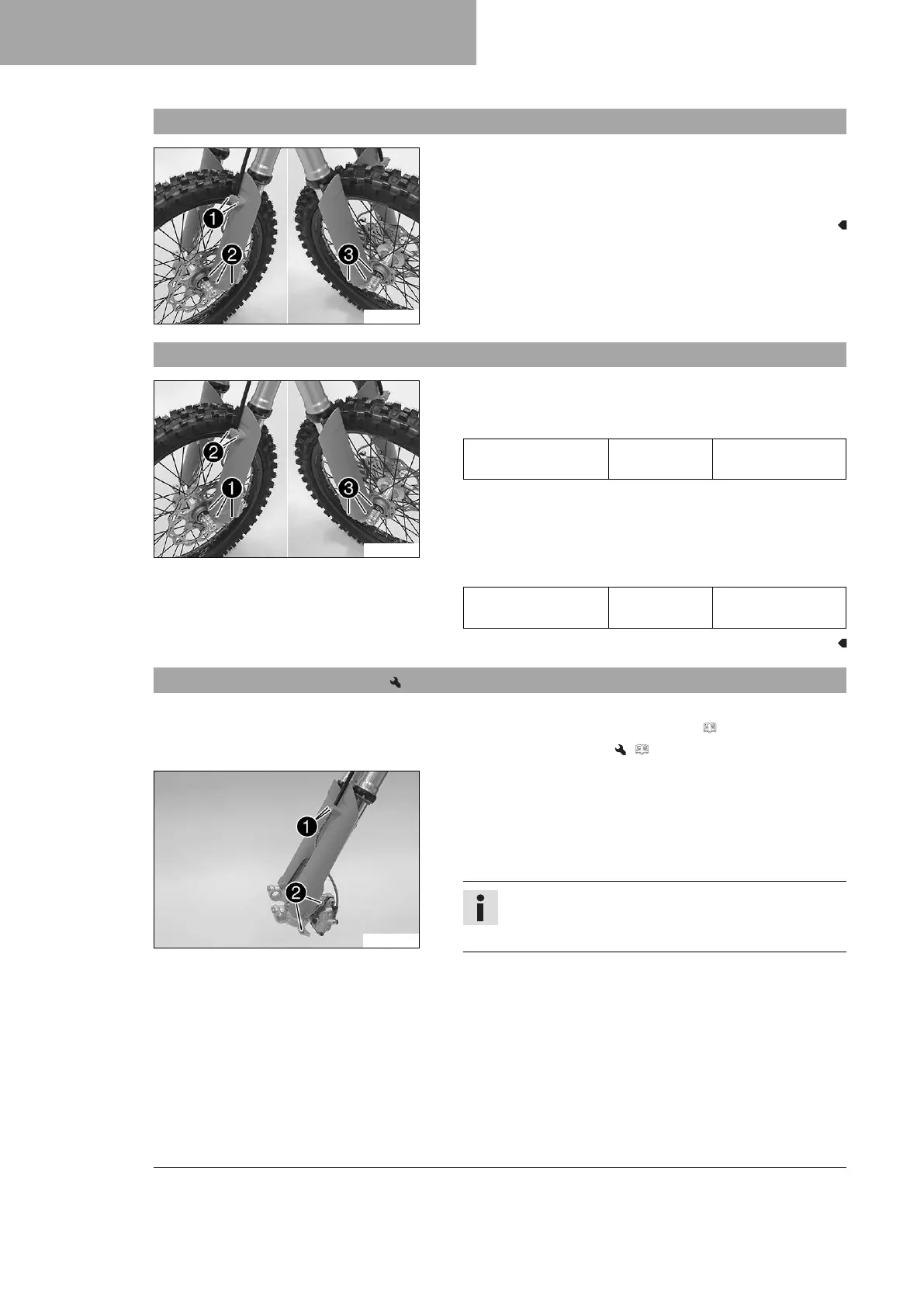

11 SERVICE WORK ON THE CHASSIS
52
11.5 Removing the fork protector
S01208-10
Remove screws
1
and take off the clamp.
Remove screws
2
and take off the left fork protector.
Remove screws
3
and take off the right fork protector.
11.6 Installing the fork protector
S01208-11
Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Position the brake line and clamp. Mount and tighten
screws
2
.
Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.7 Removing the fork legs
Preparatory work
Raise the motorcycle with a lift stand. ( p. 50)
Remove the front wheel. ( p. 94)
K01014-10
Main work
Remove screws
1
and take off the clamp.
Remove screws
2
and take off the brake caliper.
Allow the brake caliper and brake line to hang tension-free to
the side.
Info
Do not pull the hand brake lever when the front wheel
is removed.
