TUNING THE CHASSIS 10
49

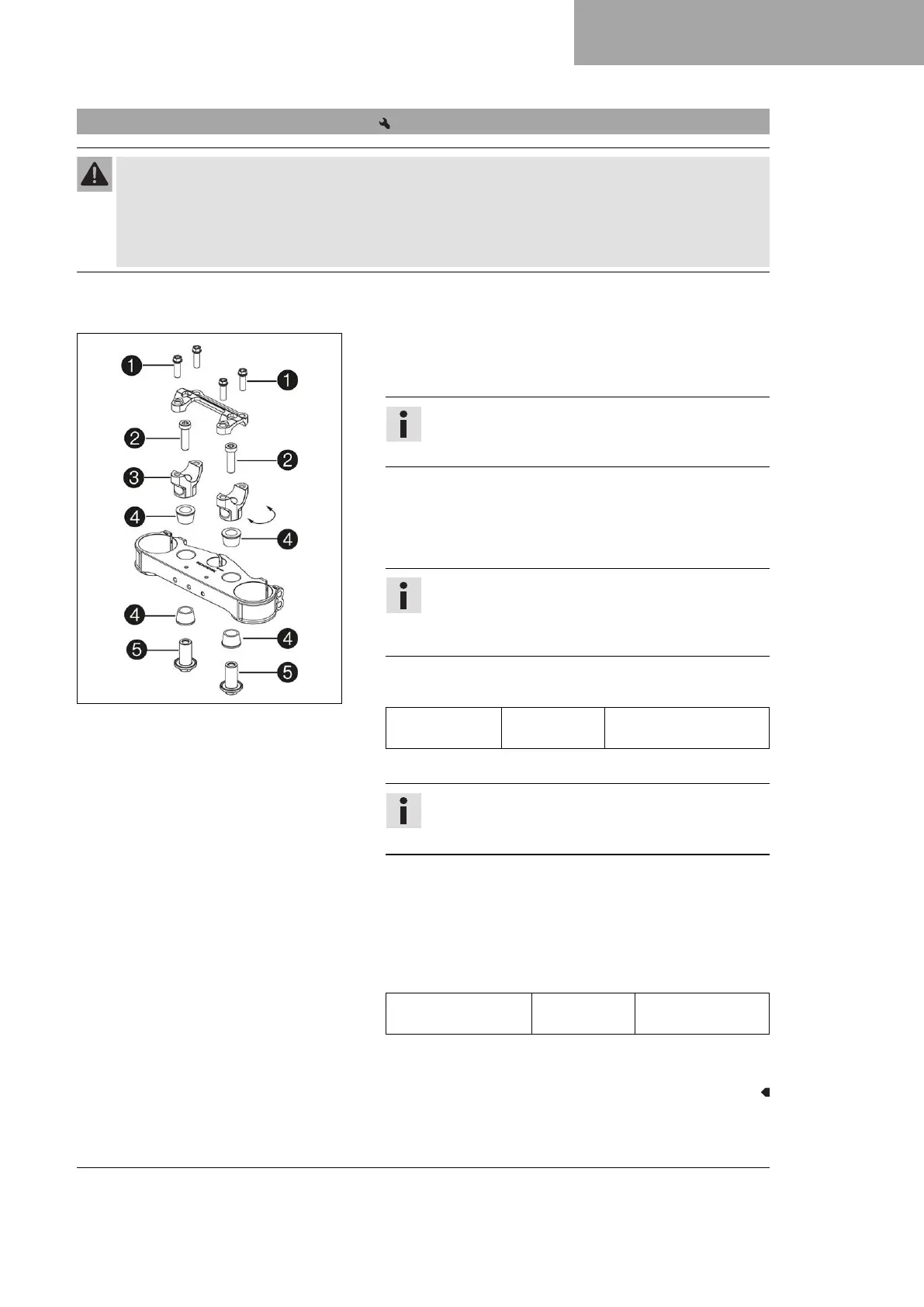

10.17 Adjusting the handlebar position
Warning
Danger of accidentsA repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
Change the handlebar if the handlebar is damaged or bent.
Preparatory work
Remove the handlebar cushion.
H01189-10
Main work
Remove screws
1
. Remove the handlebar clamp. Remove the
handlebar and lay it to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
Remove screws
2
. Take off handlebar supports
3
.
Position rubber bushings
4
and push through nuts
5
from
below.
Place the handlebar supports in the required position.
Info
The handlebar supports are longer and higher on one
side.
Position the left and right handlebar supports evenly.
Mount and tighten screws
2
.
Guideline
Screw, handle-
bar support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
Position the handlebar clamp.
Mount screws
1
but do not tighten yet.
First bolt the handlebar clamp with screws
1
onto the longer,
higher side of the handlebar supports so that both parts touch.
Tighten screws
1
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Finishing work
Mount the handlebar cushion.
