SERVICE WORK ON THE CHASSIS 11
55

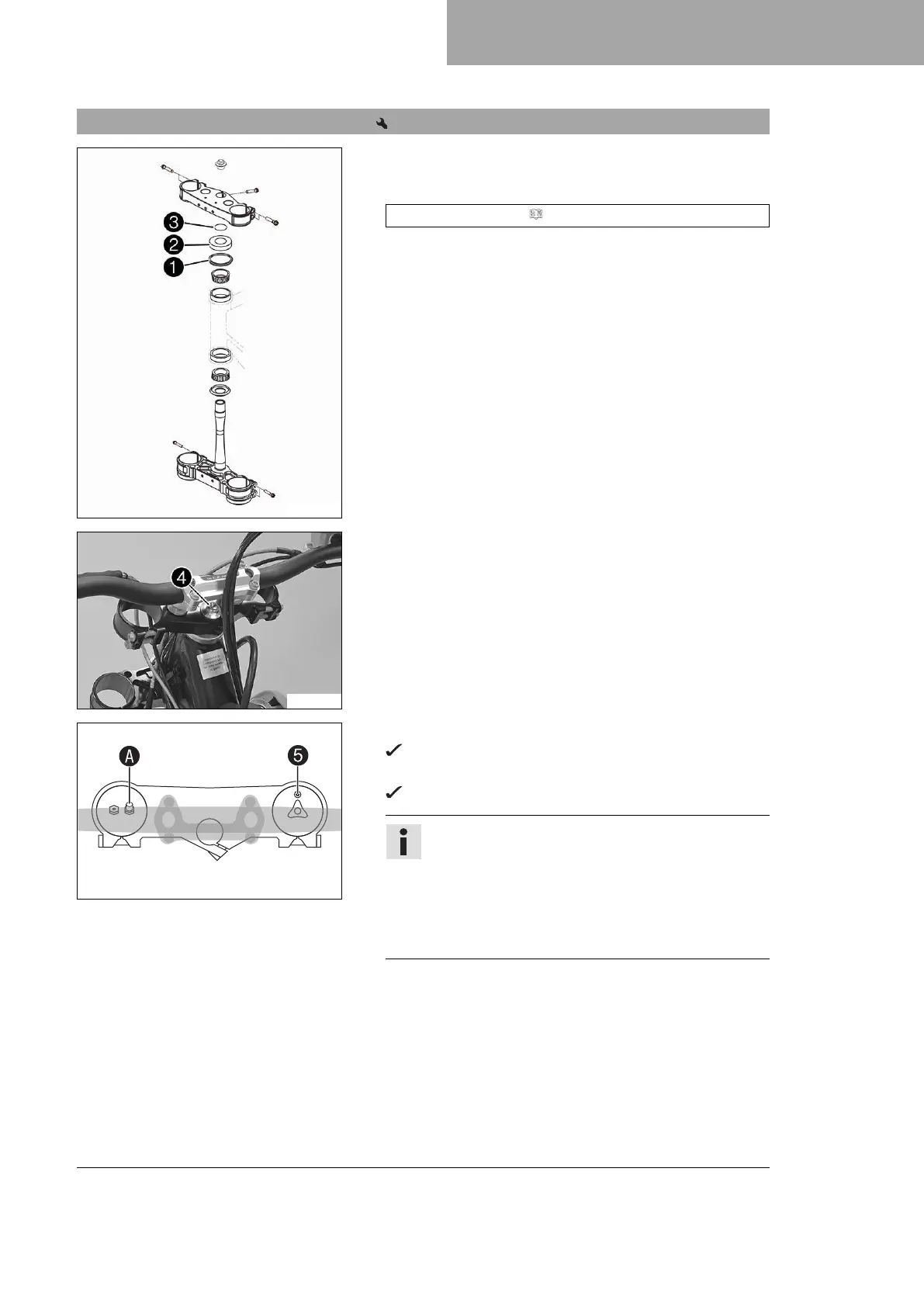

11.10 Installing the lower triple clamp
S02307-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 140)
– Insert the lower triple clamp with the steering stem. Mount the
upper steering head bearing.
–
Check whether upper steering head seal
1
is correctly posi-
tioned.
–
Slide on protective ring
2
and O-ring
3
.
F01562-10
– Position the upper triple clamp with the handlebar.
–
Mount screw
4
but do not tighten yet.
H01182-11
– Position the fork legs.
Air bleeder screw
5
of the right fork leg is positioned to
the front.
Valve
A
of the left fork leg faces the front.
Info
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
The air suspension is located in the left fork leg. The
pressure and rebound damping is located in the right
fork leg.
