KTM F8101S5 User Manual

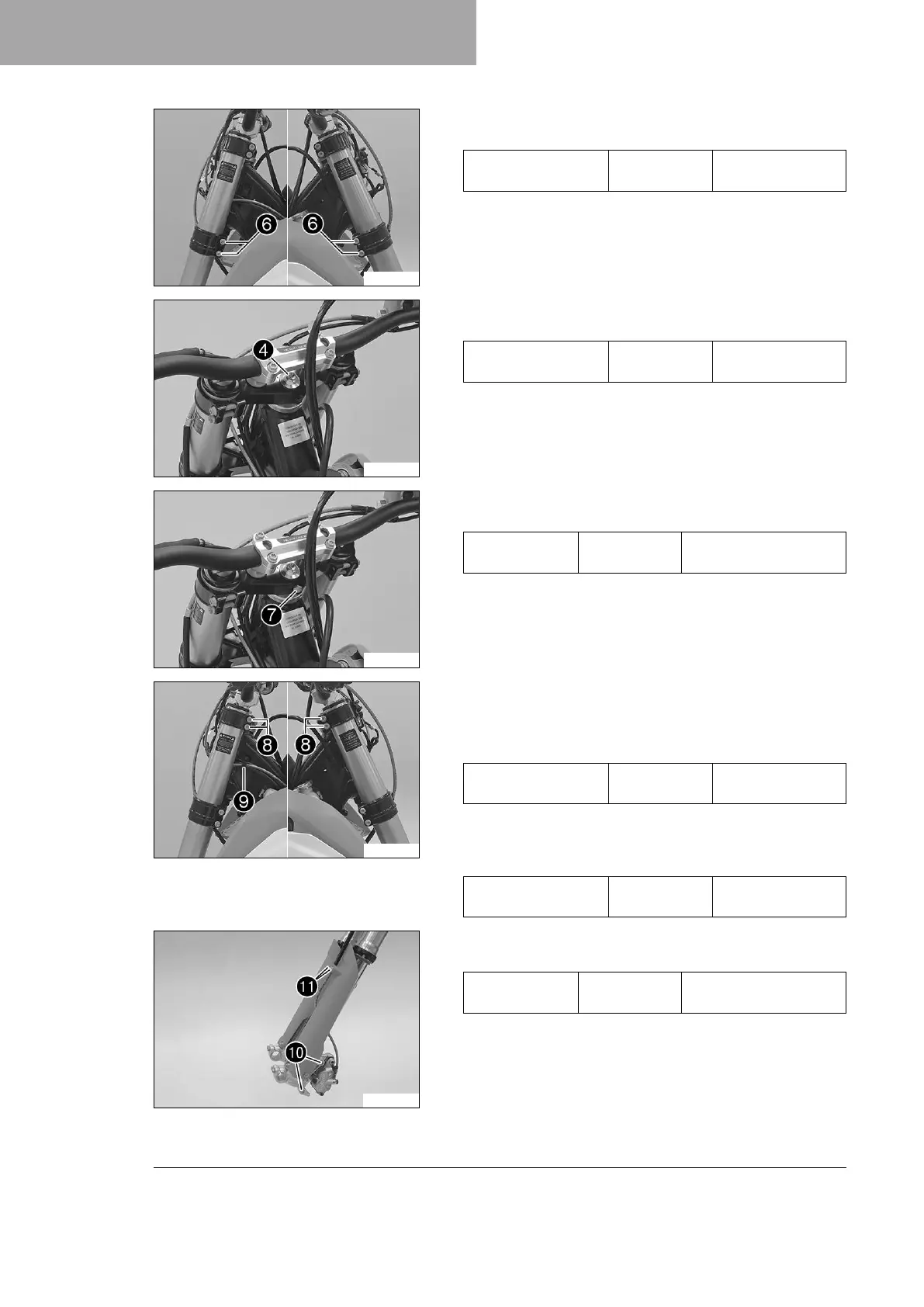

11 SERVICE WORK ON THE CHASSIS
56
F01572-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple
clamp
M8 12 Nm (8.9 lbf ft)
F01563-10
–
Tighten screw
4
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
F01563-11
–
Mount and tighten screw
7
.
Guideline
Screw, top
steering stem
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
F01573-10
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
–
Tighten screws
8
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
–
Secure the wiring harness with cable holder
9
on the left.
– Mount indicator lamp holder.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
K01014-12
–
Position the brake caliper. Mount and tighten screws
bk
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Position the brake line and the clamp. Mount and tighten
screws
bl
.
