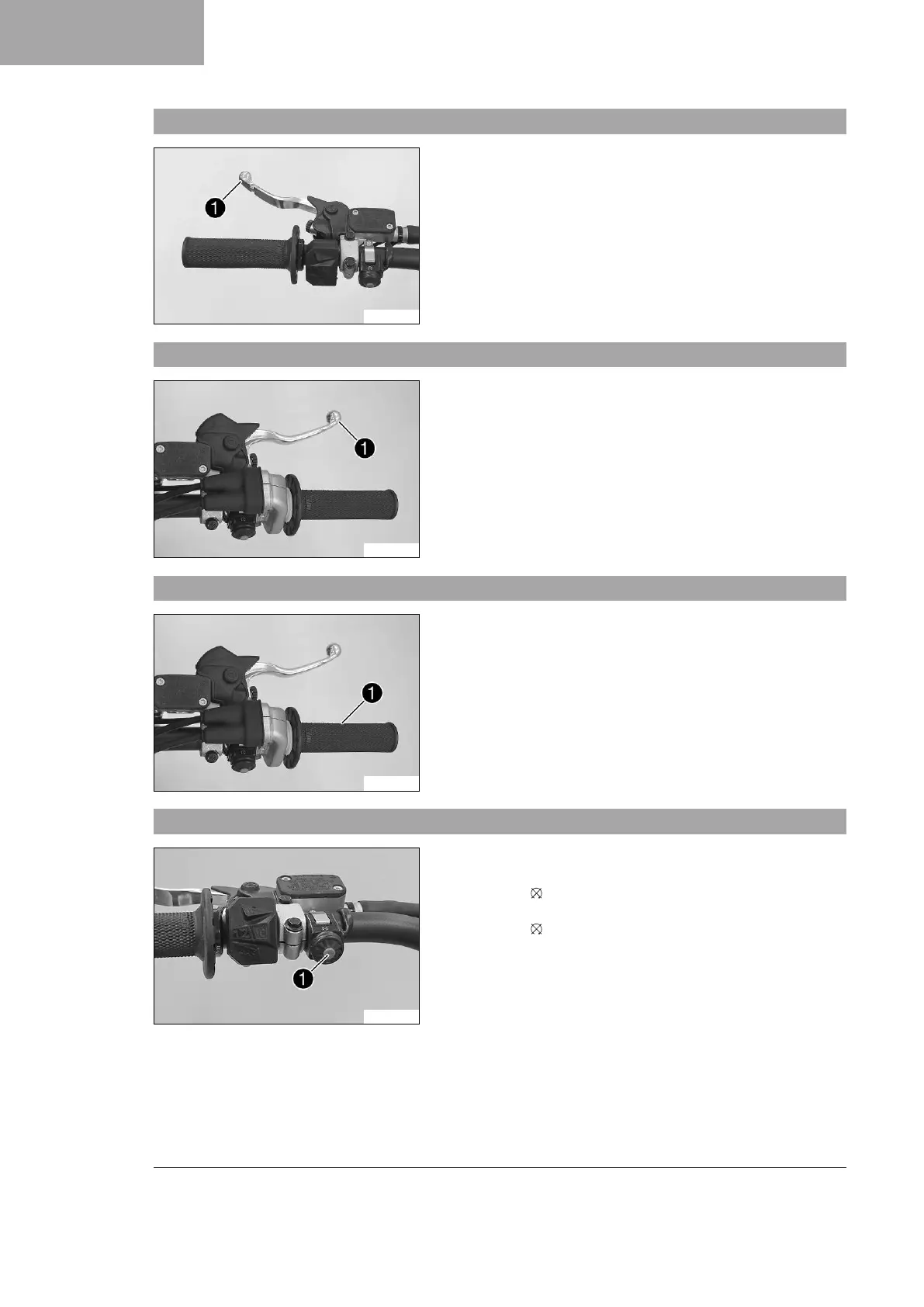

6.1 Clutch lever
S01192-10
The clutch lever
1
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
S01193-10
Hand brake lever
1
is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.
6.3 Throttle grip
S01193-11
The throttle grip
1
is fitted on the right side of the handlebar.
6.4 Kill switch
S01194-10
Kill switch
1
is fitted on the left side of the handlebar.
Possible states
• Kill switch in the basic position – In this position, the igni-
tion circuit is closed and the engine can be started.
• Kill switch pressed – In this position, the ignition circuit
is interrupted, a running engine stops, and a non-running
engine will not start.
