KTM F8101S5 User Manual

11 SERVICE WORK ON THE CHASSIS
60

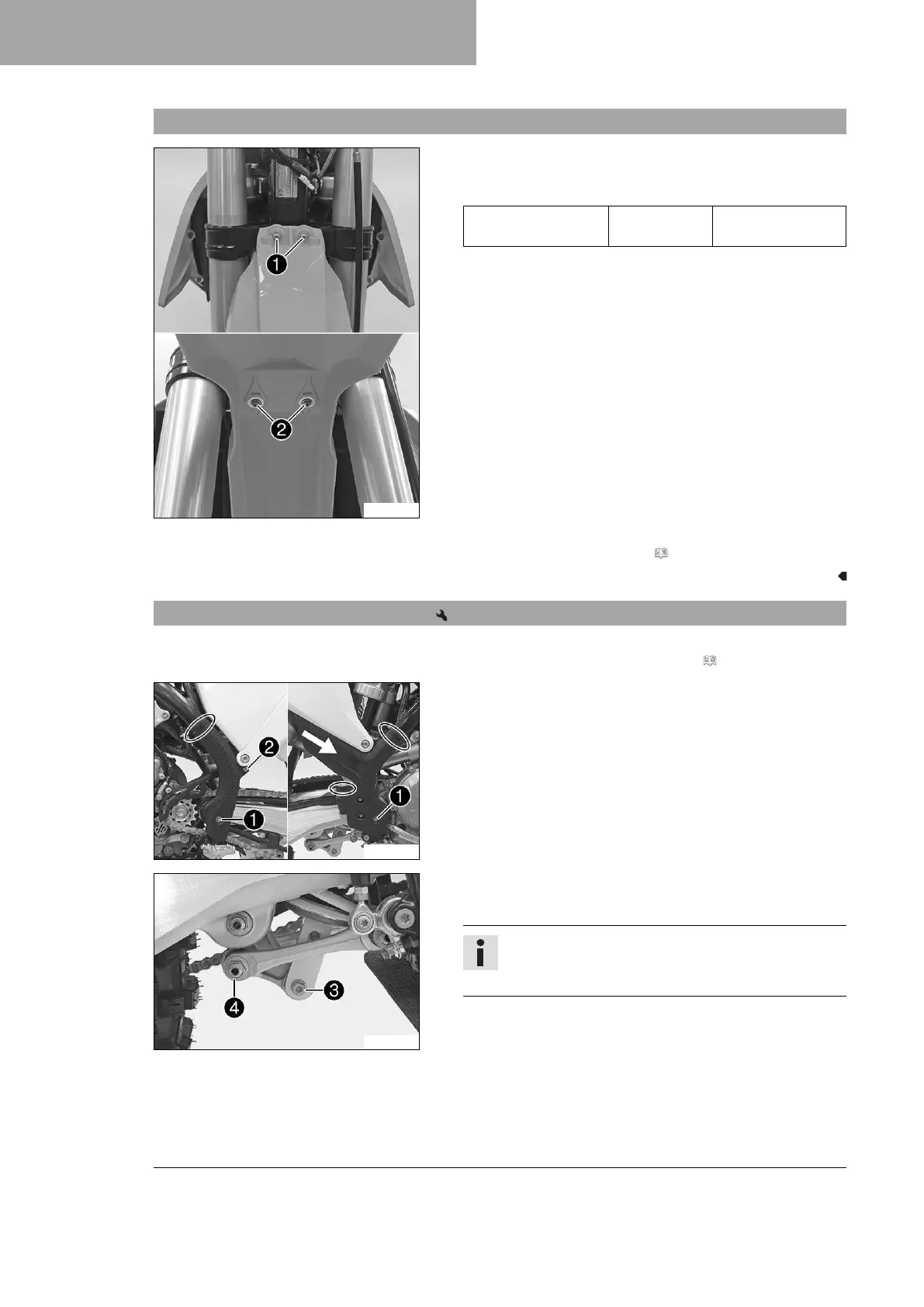

11.17 Installing front fender
F01526-10
Main work
–
Position front fender. Mount and tighten screws
1
and
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 59)
11.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 50)
F01581-10
Main work
– Remove the cable ties.
–
Remove screws
1
with the washers.
–
Remove screw
2
.
– Take off the left frame protector.
– Push the right frame protector to the front and take off at the
bottom.
S01220-10
–
Remove screw
3
.
–
Remove fitting
4
.
Info
Raise the wheel slightly to be able to remove the screws
more easily.
