11 SERVICE WORK ON THE CHASSIS
70
F01591-10

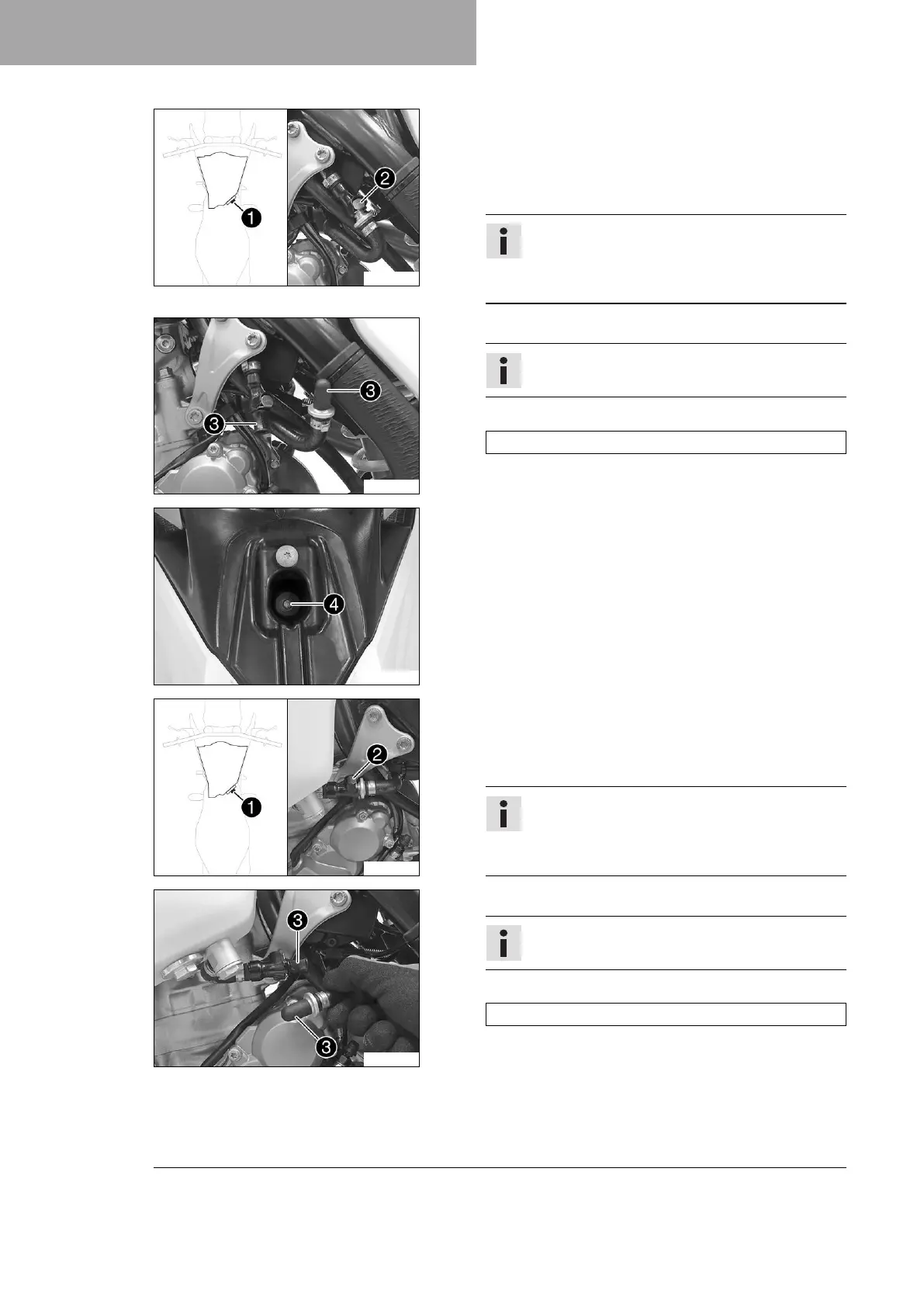

Main work
(All SX‑F models)
–
Unplug connector
1
of the fuel pump.
–
Clean plug-in connection
2
of the fuel line thoroughly
with compressed air.
Info
Under no circumstances should dirt enter into the
fuel line. Dirt in the fuel line clogs the injection
valve!
F01593-10
– Disconnect the plug-in connection of the fuel line.
Info
Remaining fuel may flow out of the fuel hose.
–
Mount wash cap set
3
.
Wash cap set (81212016100)
– Pull the fuel tank breather hose off the tank lid.
K01034-10
–
Remove screw
4
with the rubber bushing.
F01594-10
(XC‑F US)
–
Unplug connector
1
of the fuel pump.
–
Clean plug-in connection
2
of the fuel line thoroughly
with compressed air.
Info
Under no circumstances should dirt enter into the
fuel line. Dirt in the fuel line clogs the injection
valve!
F01595-10
– Disconnect the plug-in connection of the fuel line.
Info
Remaining fuel may flow out of the fuel hose.
–
Mount wash cap set
3
.
Wash cap set (81212016100)
– Pull the fuel tank breather hose off the tank lid.
