BRAKE SYSTEM 12
93
F00155-10

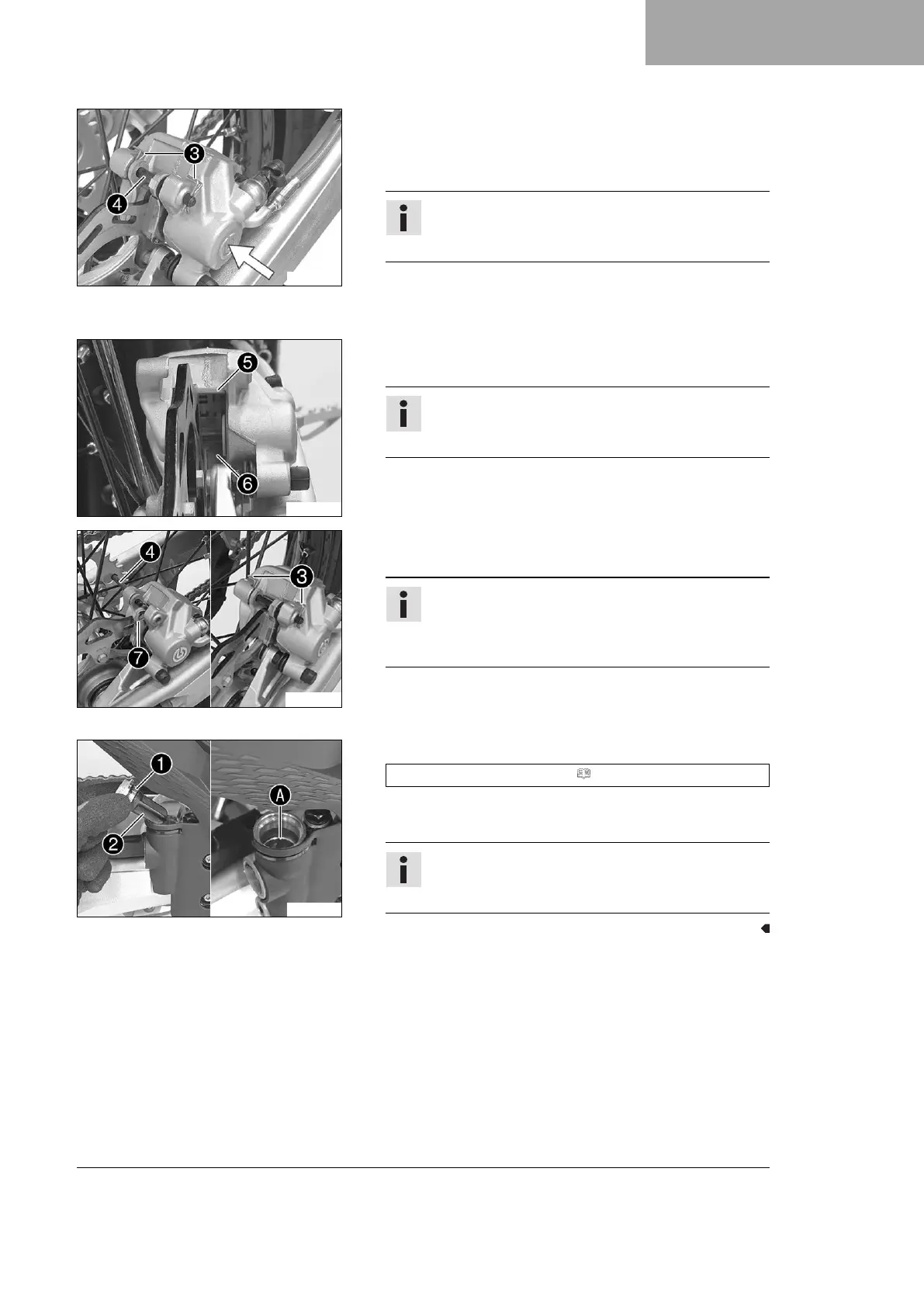

Manually press the brake caliper to the brake disc to push
back the brake piston. Ensure that brake fluid does not flow
out of the brake fluid reservoir, extracting it by suction if it
does.
Info
Make sure when pushing back the brake piston that you
do not press the brake caliper against the spokes.
Remove the cotter pins
3
, pull out pin
4
, and remove the
brake linings.
Clean the brake caliper and brake caliper support.
S01251-10
Check that leaf spring
5
in the brake caliper and sliding
plate
6
in the brake caliper support are seated correctly.
Info
The arrow on the leaf spring points in the rotation
direction of the brake disc.
H00025-10
Insert the new brake linings, insert pin
4
, and mount the
cotter pins
3
.
Info
Always change the brake linings in pairs.
Make sure that decoupling plate
7
is mounted on the
piston side brake lining.
Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
F01546-10
Add brake fluid to level
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 138)
Mount and tighten screw cap
1
with membrane
2
and the
O-ring.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
