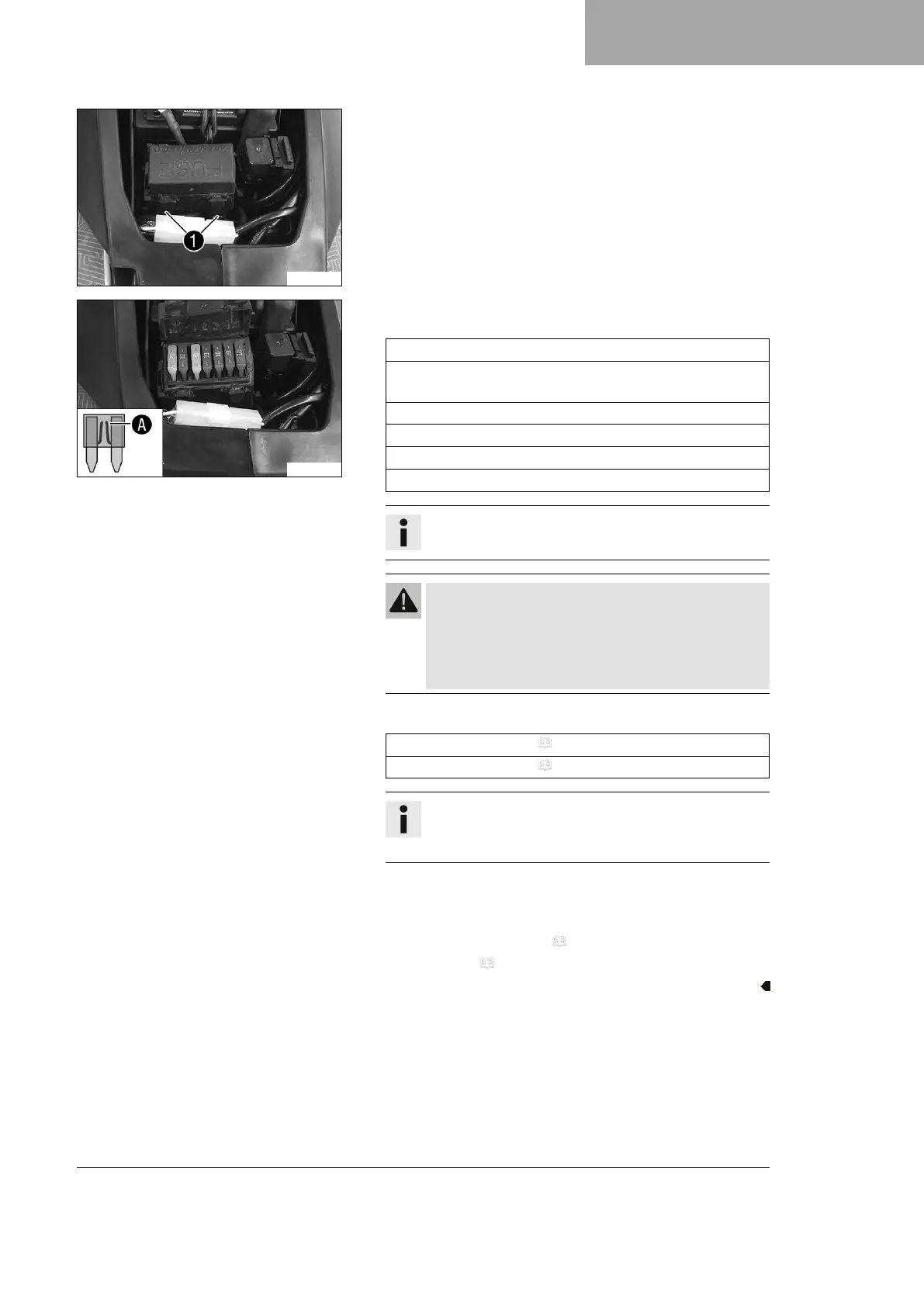

Main work
–
Detach catches
1
and open the fuse box cover.
F03142-10
–
Remove the faulty fuse.
Guideline
Fuses res - 10 A and 20 A - spare fuses
Fuse 1 - 20 A - main fuse, motor electronics control unit,
ignition lock
Fuse 2 - 10 A - ignition lock, main switch, start button
Fuse 3 – 10 A – high beam, low beam
Fuse 4 - 10 A - horn, brake light, turn signal
Fuse 5 - 10 A - water pump
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 139)
Fuse (75011088020) ( p. 139)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
– Close the fuse box cover and allow the catches to engage.
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
