12 TUNING THE CHASSIS
50
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during rebound of the shock
absorber.
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)

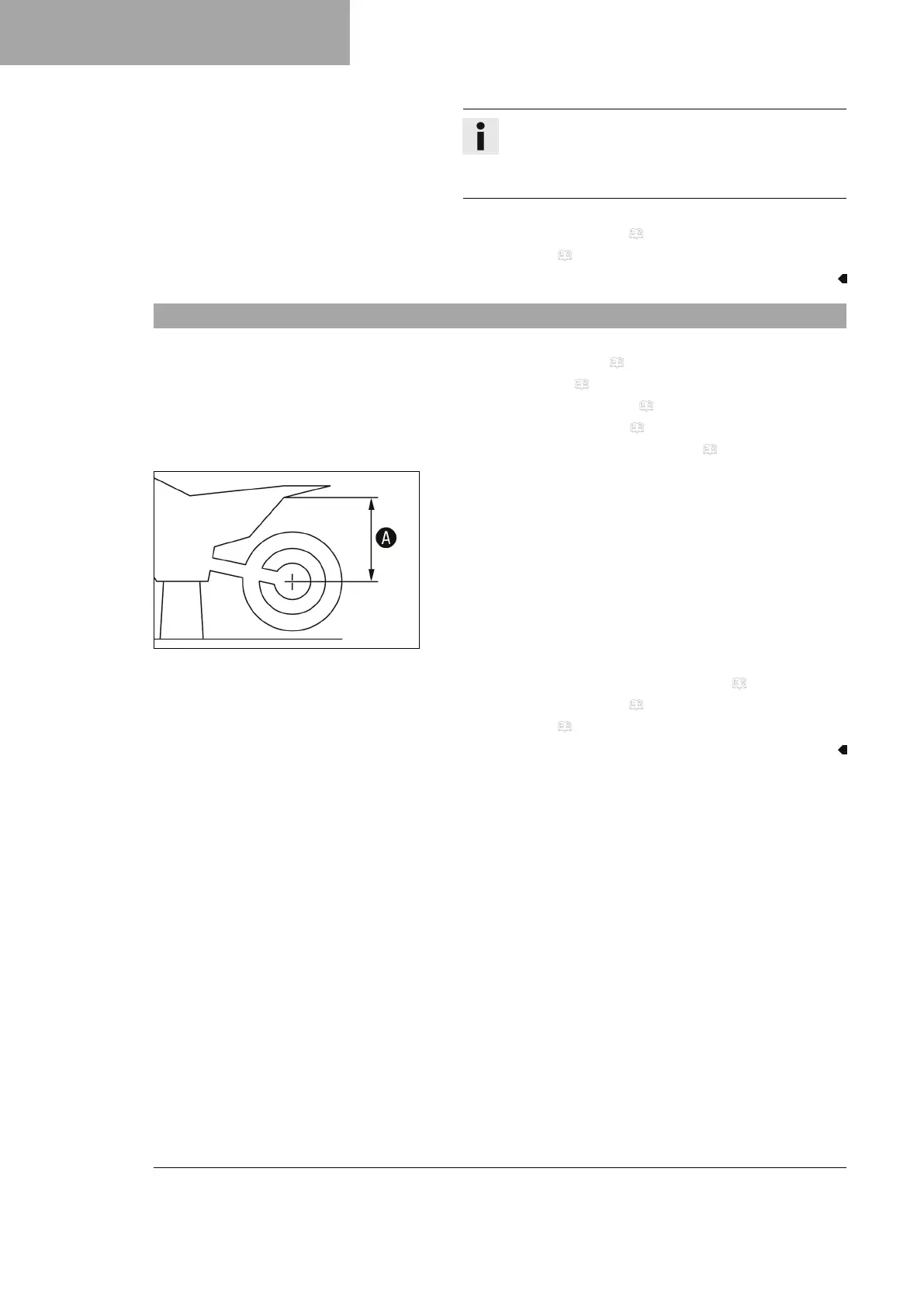

12.6 Measuring the rear wheel dimension unloaded
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
– Raise the motorcycle with a lift stand. ( p. 57)
400988-10
Main work
– Measure the distance – as vertical as possible – between the
rear axle and another fixed point, for example, a marking on
the rear fairing.
–
Note down the value as dimension
A
.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 57)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
