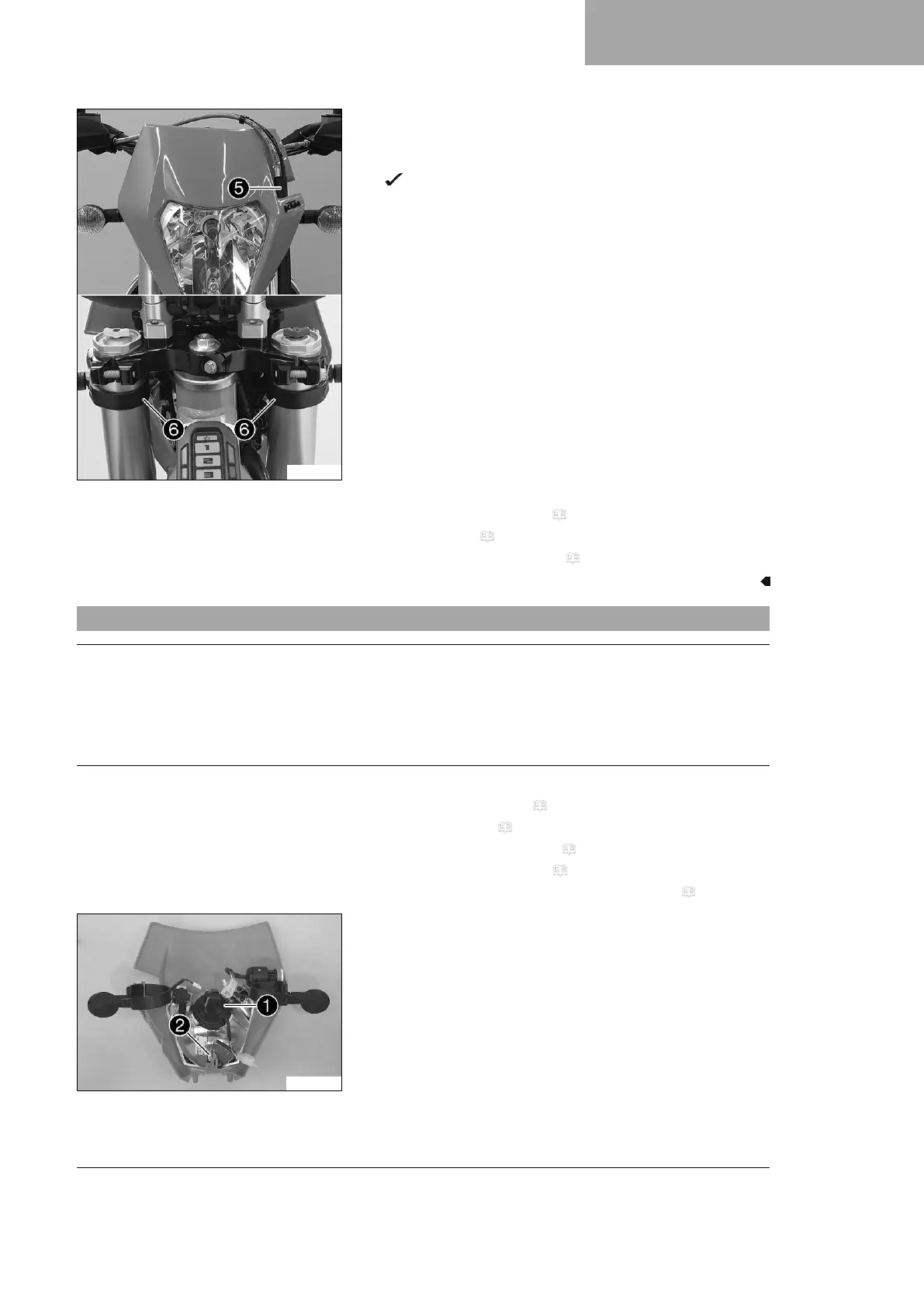

KTM Freeride E-XC 2021 - Changing the Headlight Bulb

ELECTRICAL SYSTEM 16
103
F03143-11
–
Attach the brake line and wiring harness
5
.
– Position the headlight mask and secure it with rubber
straps
6
.
The holding lugs on the headlight mask engage in the
fender.
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
– Check the headlight setting. ( p. 105)
16.7 Changing the headlight bulb
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
– Remove the headlight mask with the headlight. ( p. 102)
E01029-10
Main work
–
Turn rubber cap
1
with the bulb socket beneath it all the
way counterclockwise and lift it off.
–
Pull bulb socket
2
of the position light out of the reflector.
