16 ELECTRICAL SYSTEM
106
–
Tighten screw
1
.

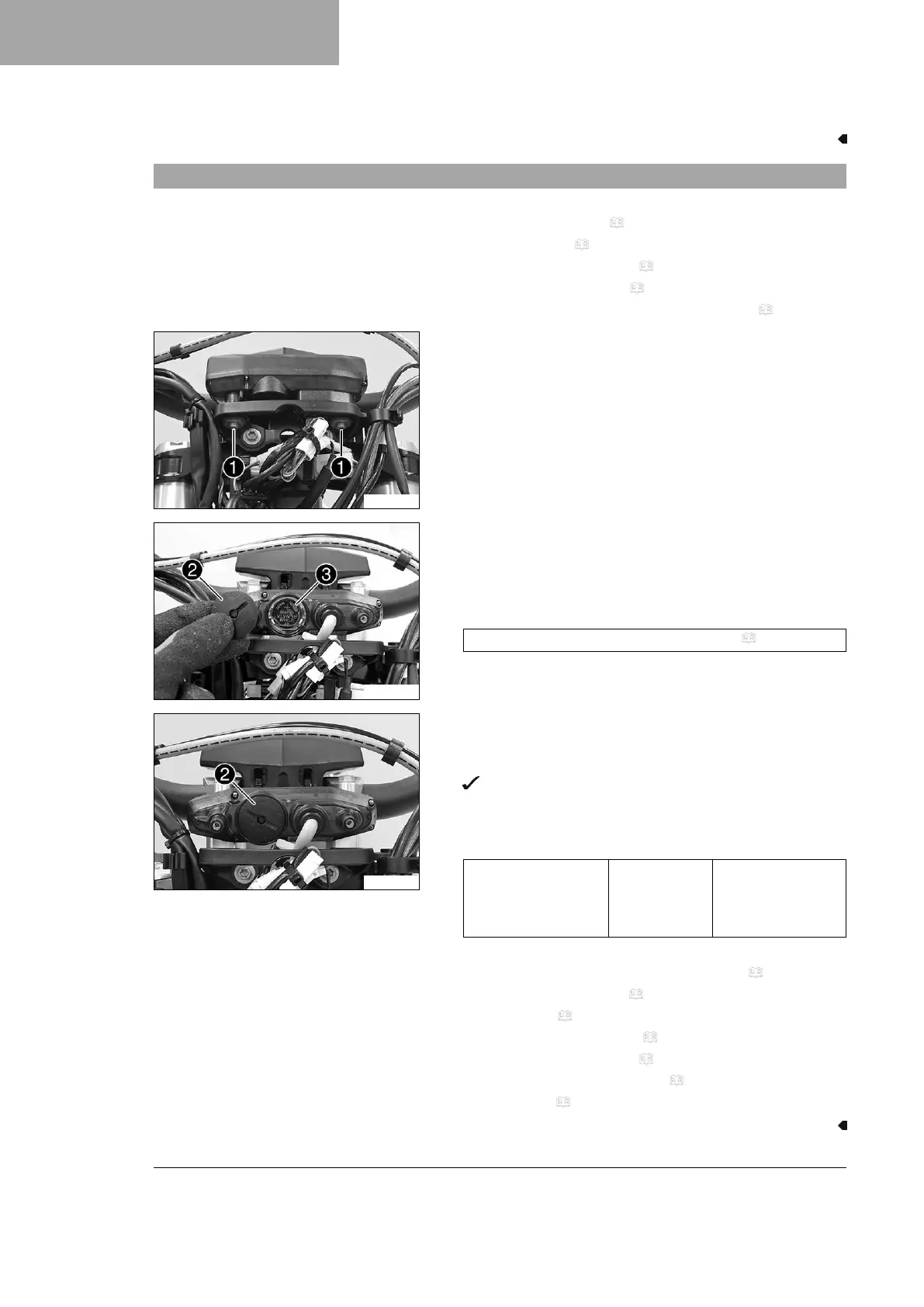

16.11 Changing the combination instrument battery
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
– Remove the headlight mask with the headlight. ( p. 102)
F02494-10
Main work
–
Remove screws
1
.
– Pull the combination instrument upward out of the holder.
F02495-10
–
Using a coin, turn protection cap
2
all the way counterclock-
wise and take it off.
–
Remove combination instrument battery
3
.
– Insert the combination instrument battery with the label facing
outward.
Combination instrument battery (CR 2430) ( p. 139)
– Check the O-ring of the protection cap for correct seating.
F02496-10
–
Position protection cap
2
and turn all the way clockwise
using a coin.
– Press any button on the combination instrument.
The combination instrument is activated.
– Position the combination instrument in the holder.
– Mount and tighten the screws with washers.
Guideline
Screw, combination
instrument on com-
bination instrument
bracket
EJOT DELTA PT
®
45x12-Z
1 Nm (0.7 lbf ft)
Finishing work
– Install the headlight mask with the headlight. ( p. 102)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
– Check the headlight setting. ( p. 105)
– Set the kilometers or miles. ( p. 27)
– Set the combination instrument. ( p. 28)
– Set the clock. ( p. 29)
