KTM Freeride E-XC 2021 - Removing the Headlight Mask with the Headlight; Installing the Headlight Mask with the Headlight

16 ELECTRICAL SYSTEM
102

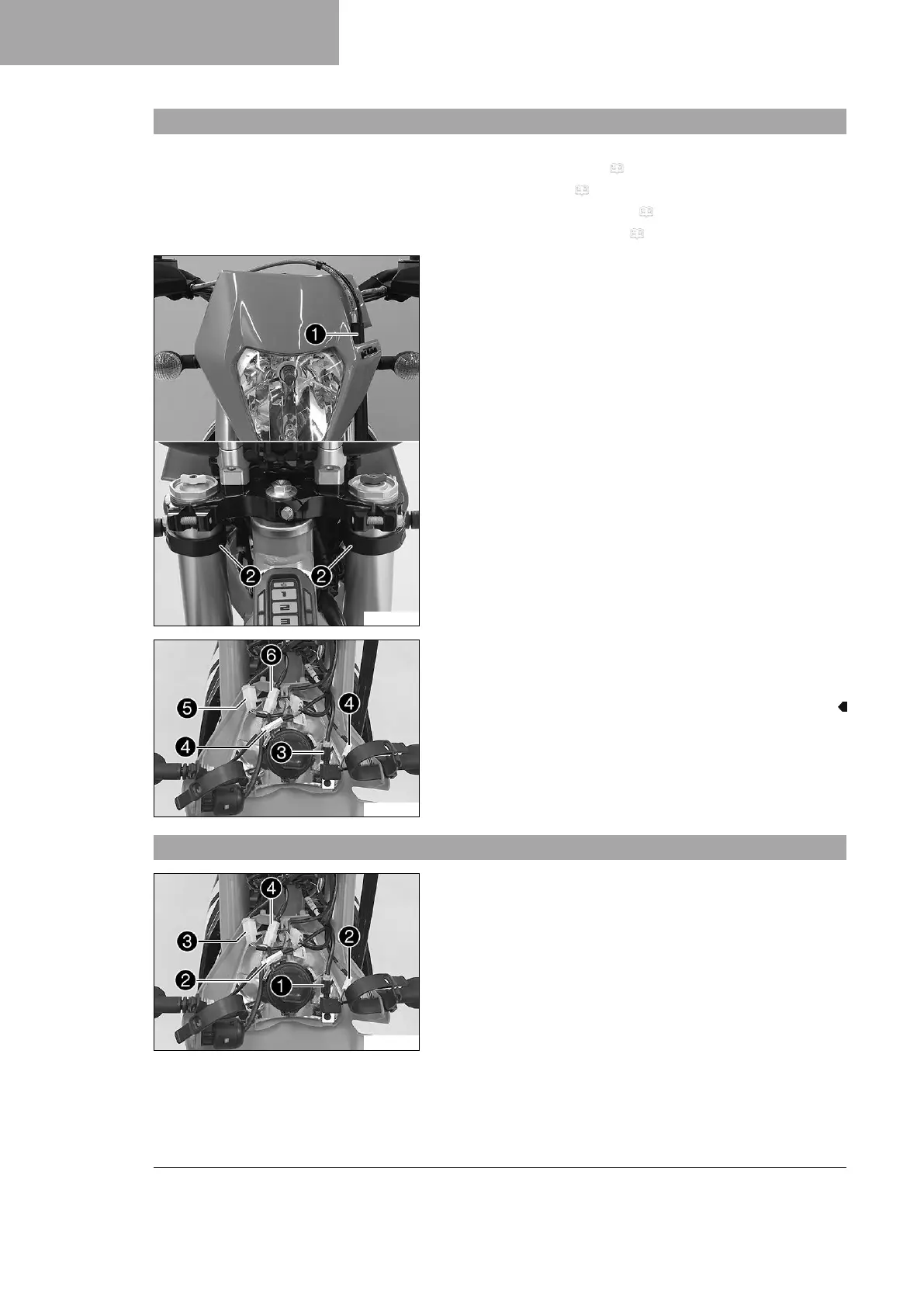

16.5 Removing the headlight mask with the headlight
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
F03143-10
Main work
–
Detach the brake line and wiring harness
1
.
–
Loosen rubber straps
2
. Slide the headlight mask up and
swing it forward.
E00968-11
–
Disconnect plug-in connector
3
of the turn signal relay, plug-
in connectors
4
of the turn signals, plug-in connector
5
of
the headlight and plug-in connector
6
of the ignition lock.
16.6 Installing the headlight mask with the headlight
E00968-10
Main work
–
Join plug-in connector
1
of the turn signal relay, plug-in con-
nectors
2
of the turn signals, plug-in connector
3
of the
headlight and plug-in connector
4
of the ignition lock.
