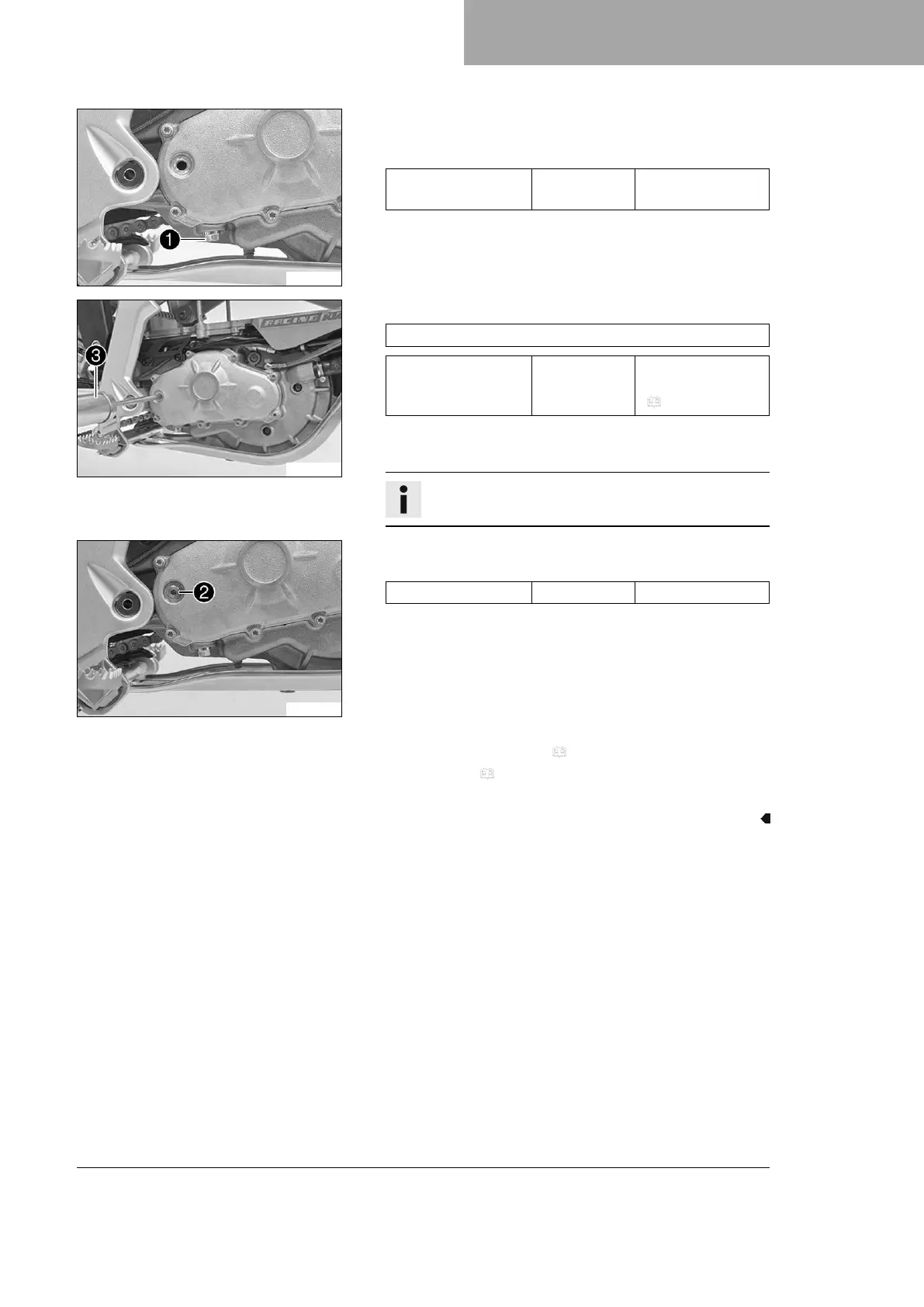

SERVICE WORK ON THE ENGINE 20
129
C00746-10
–
Mount the oil drain plug
1
with the magnet and seal ring and
tighten it.
Guideline
Oil drain plug with
magnet
M12x1.5x12 20 Nm (14.8 lbf ft)
– Place the motorcycle on its left side with the aid of an assis-
tant.
C00747-10
–
Fill special tool
3
with the specified quantity of gear oil.
Oil filler syringe (58429048000)
Gear oil 0.2 l (0.2 qt.) Gear oil (SAE
80W/90)
( p. 143)
– Fill the gear oil using the special tool.
– Wipe away any excess gear oil.
Info
The screw plug is not used for checking the oil level!
C00745-11
–
Mount and tighten screw plug
2
with the seal ring.
Guideline
Oil seal plug M10 8 Nm (5.9 lbf ft)
– Stand the motorcycle upright.
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
– Go for a short test ride and check the motor has no leaks.
