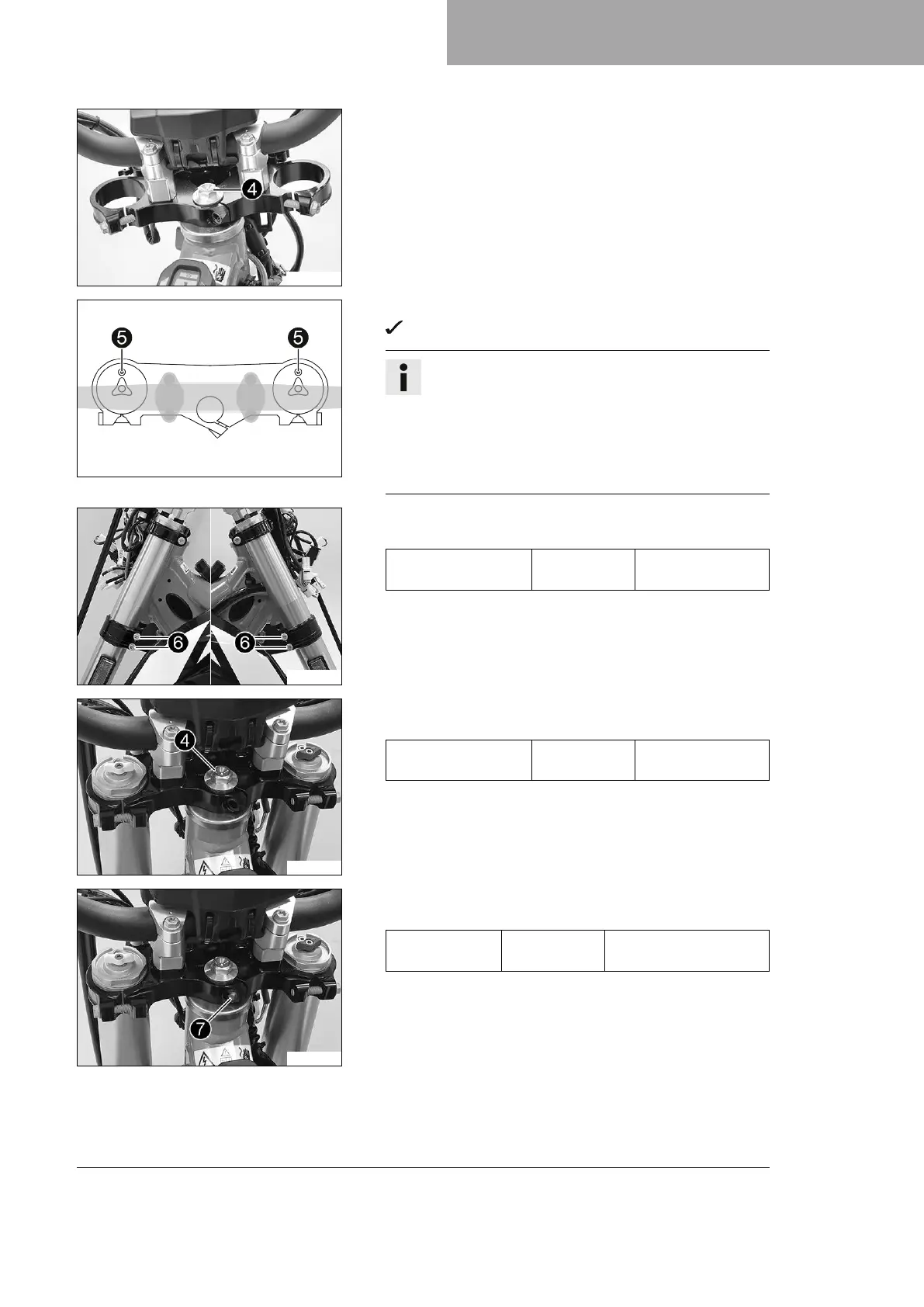

SERVICE WORK ON THE CHASSIS 13
63
C00834-10
– Position the upper triple clamp with the handlebar.
–
Mount screw
4
, but do not tighten yet.
– Position the rear wheel brake line and wiring harness.
402556-11
–
Position the fork legs.
Bleeder screws
5
face forwards.
Info
The rebound damping is located in right fork leg REB
(red adjusting screw). The compression damping is
located in left fork leg COM (white adjusting screw).
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
F02484-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple
clamp
M8 18 Nm (13.3 lbf ft)
F02485-10
–
Tighten screw
4
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
F02485-11
–
Mount and tighten screw
7
.
Guideline
Screw, top
steering stem
M8 17 Nm (12.5 lbf ft)
Loctite
®
243™
