14 BRAKE SYSTEM
84

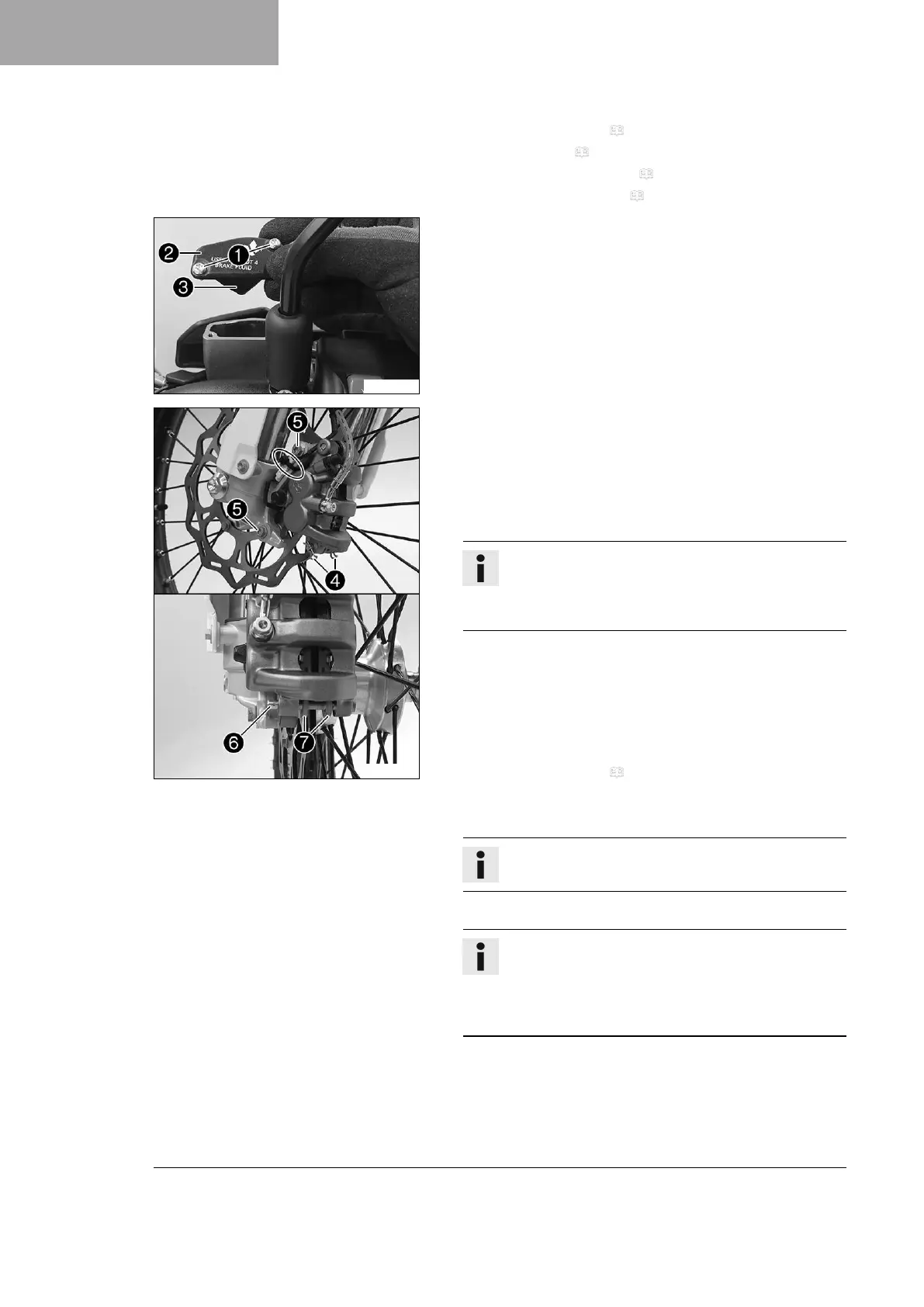

Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
F03130-11
Main work
– Move the brake fluid reservoir attached to the right of the han-
dlebar to a horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
F03132-10
–
Remove cotter pin
4
.
– Remove the cable tie(s) and disconnect plug-in connector.
–
Remove screws
5
.
– Manually press the brake caliper toward the brake disc to push
back the brake pistons. Ensure that brake fluid does not flow
out of the brake fluid reservoir; extract some if necessary.
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake
pistons.
–
Remove pin
6
.
–
Remove brake linings
7
and the retainer spring.
– Press the brake piston back into the basic position and ensure
that brake fluid does not flow out of the brake fluid reservoir,
extracting some if necessary.
– Clean brake caliper.
– Check the brake discs. ( p. 79)
– Position the retainer spring.
– Position the new brake linings.
Info
Always change the brake linings in pairs.
–
Mount pin
6
.
Info
To make it easier to mount the pin, push the brake lin-
ings against the retainer spring.
Make sure the brake linings and retainer spring are
seated correctly.
–
Mount cotter pins
4
.
–
Position the brake caliper. Mount screws
5
, but do not
tighten yet.
