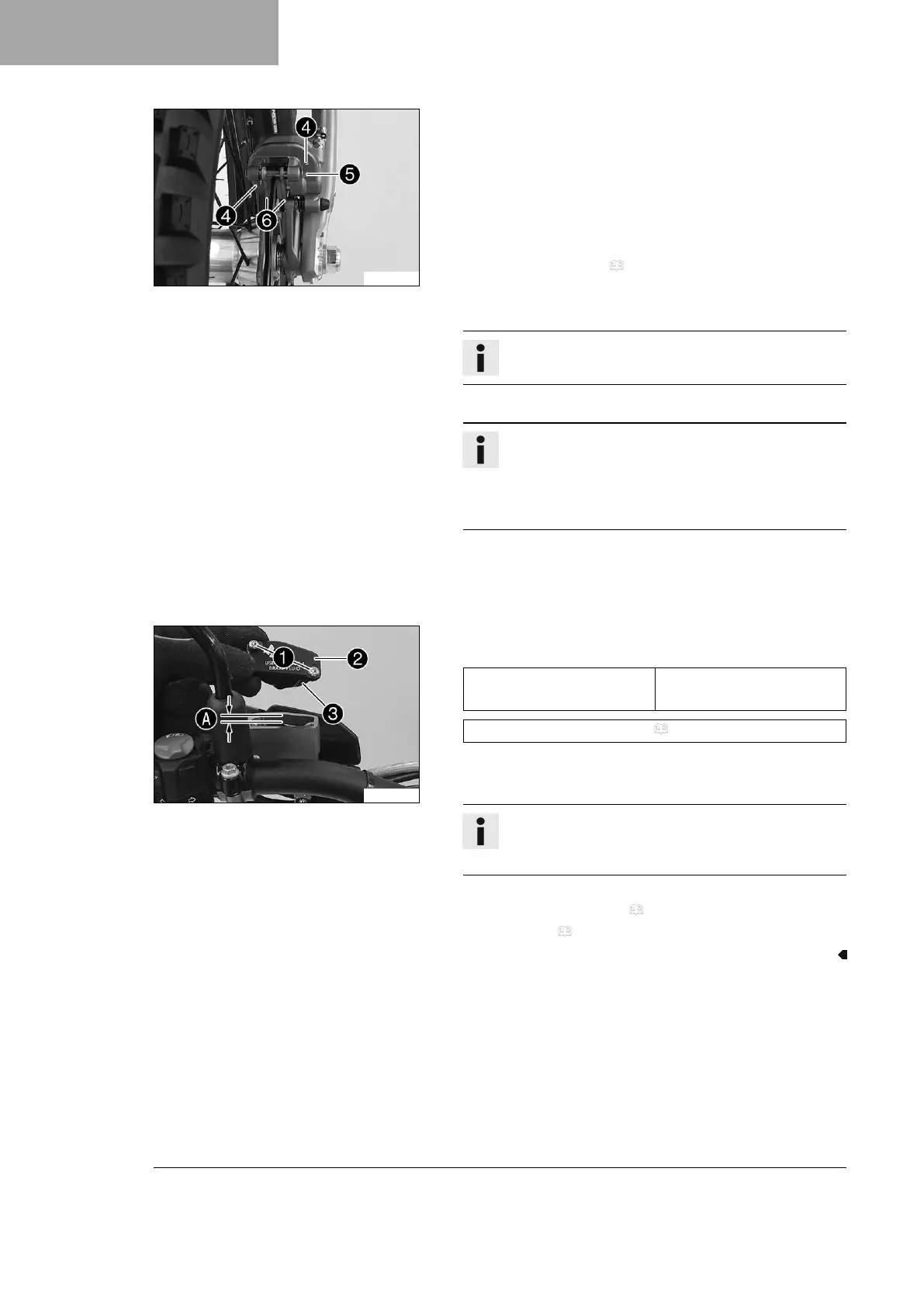

14 BRAKE SYSTEM
90
F03136-10
–
Remove cotter pin
4
.
–
Remove pin
5
.
–
Remove brake linings
6
and the retainer spring.
– Press the brake piston back into the basic position and ensure
that brake fluid does not flow out of the brake fluid reservoir,
extracting some if necessary.
– Clean brake caliper.
– Check the brake discs. ( p. 79)
– Position the retainer spring.
– Position the new brake linings.
Info
Always change the brake linings in pairs.
–
Mount pin
5
.
Info
To make it easier to mount the pin, push the brake lin-
ings upwards against the retainer spring.
Make sure the brake linings and retainer spring are
seated correctly.
–
Mount cotter pins
4
.
– Operate the rear brake lever several times until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
F03134-10
–
Correct brake fluid level to marking
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 143)
–
Mount cover
2
with membrane
3
.
–
Mount and tighten screws
1
.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
