15 WHEELS, TIRES
94
H03001-10

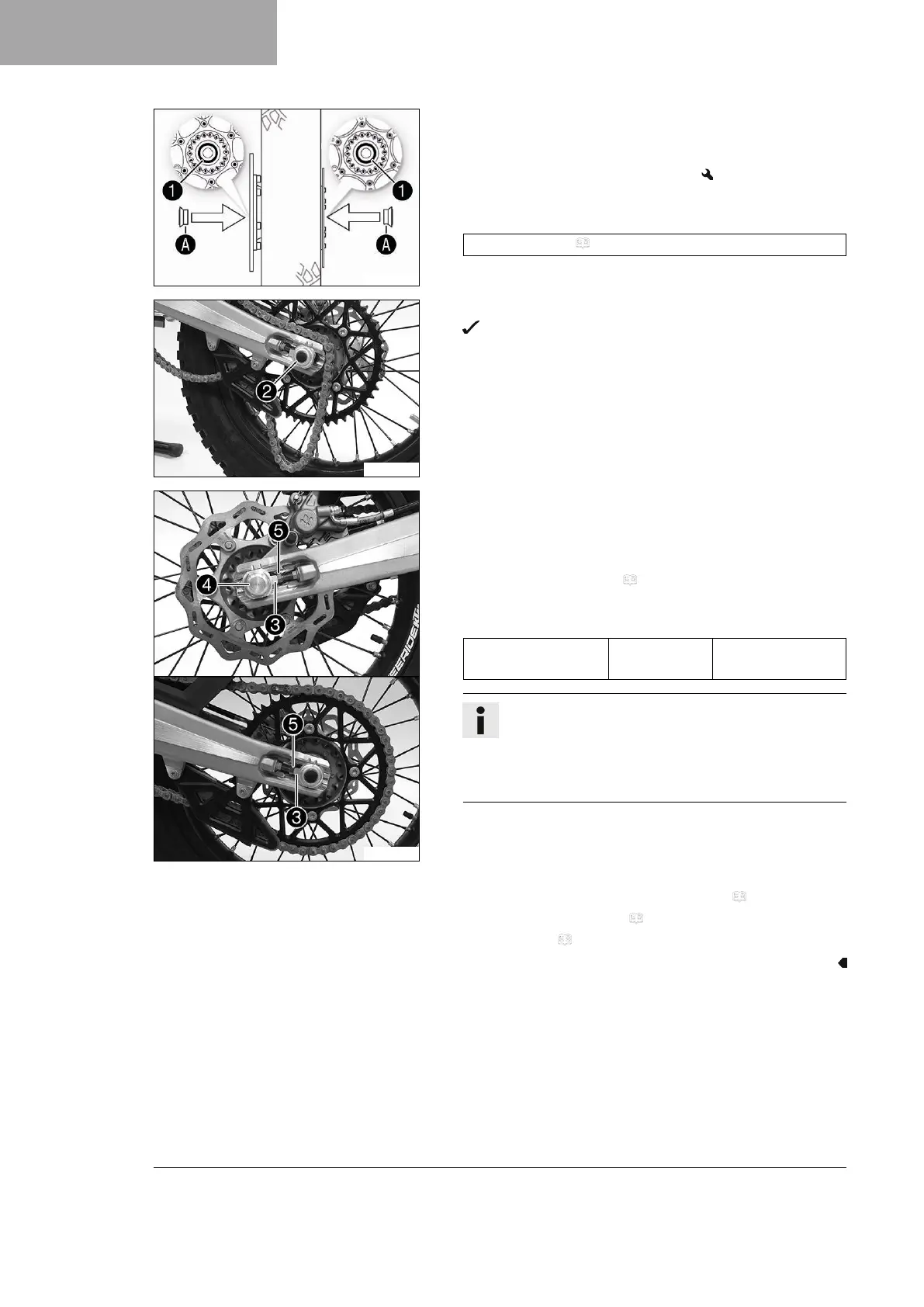

Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the rear wheel bearing.
–
Clean and grease shaft seal rings
1
and contact surfaces
A
of the spacers.
Long-life grease ( p. 145)
– Insert the spacers.
F03139-10
–
Position the rear wheel.
The brake linings are correctly positioned.
–
Insert wheel spindle
2
.
– Mount the chain.
F03127-11
–
Position chain adjuster
3
. Mount nut
4
, but do not tighten
it yet.
–
Make sure that chain adjusters
3
are fitted correctly on
adjusting screws
5
.
– Check the chain tension. ( p. 73)
–
Tighten nut
4
.
Guideline
Nut, rear wheel spin-
dle
M20x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters
enables different secondary ratios with the same chain
length.
Chain adjusters
3
can be turned by 180°.
– Operate the rear brake lever several times until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 57)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
