KTM RC 390 2018 User Manual

TUNING THE CHASSIS 12
109
A00279-10
–

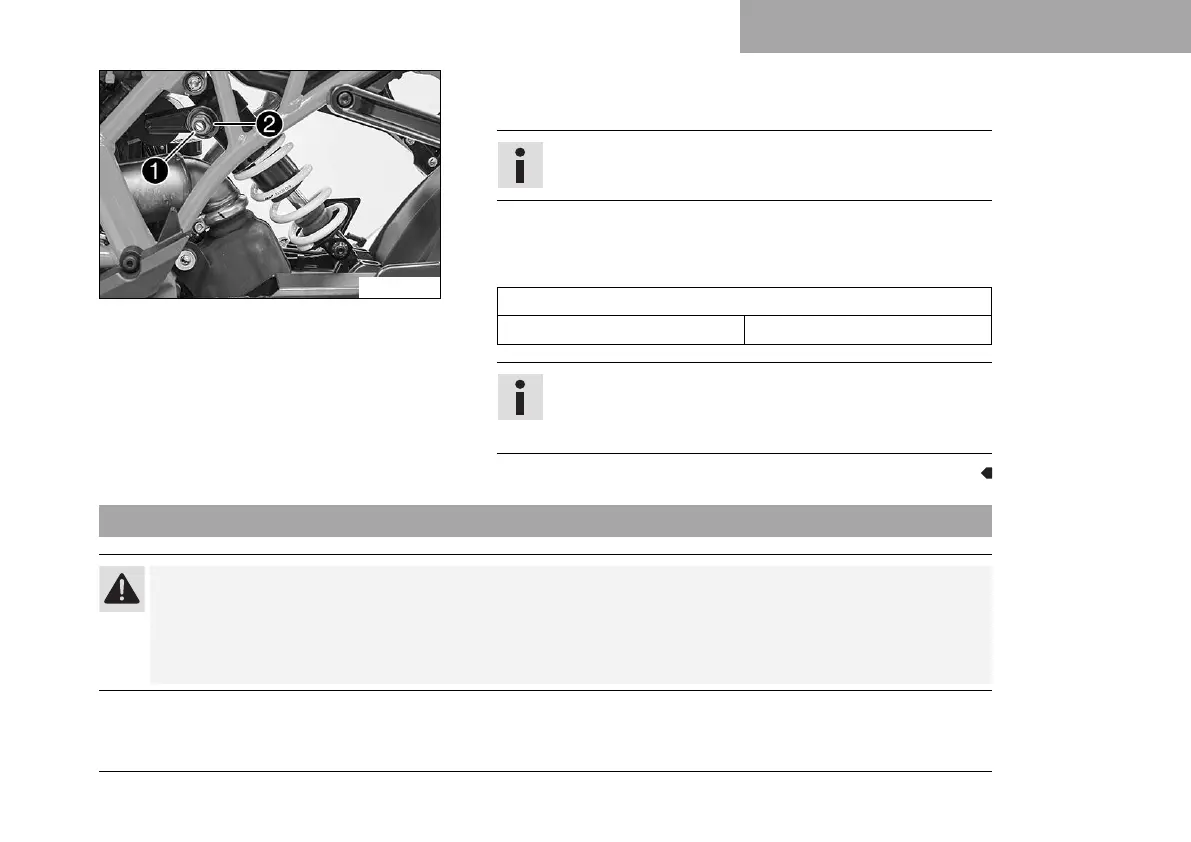

Turn adjusting screw
1
all the way anticlockwise with a
socket wrench.
Info
Do not loosen fitting
2
!
– Turn clockwise by the number of turns corresponding to the
shock absorber type.
Guideline
Compression damping, high-speed
Standard 1.5 turns
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping.
12.6 Adjusting the low-speed compression damping of the shock absorber (RC 390 R EU)
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incorrectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized KTM workshop will be glad to help.)

KTM RC 390 2018 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Torque	36 Nm @ 7, 000 rpm
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP monoshock
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Ground Clearance	178.5 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Engine Type	Single Cylinder, 4-Stroke
Power	43 hp (32 kW) @ 9, 000 rpm
Fuel System	Electronic Fuel Injection
Frame	Steel trellis frame
Front Suspension	WP upside-down Ø 43 mm
Front Brake	320 mm disc
Rear Brake	230 mm disc, single-piston caliper
ABS	Two-channel Bosch 9MB ABS
