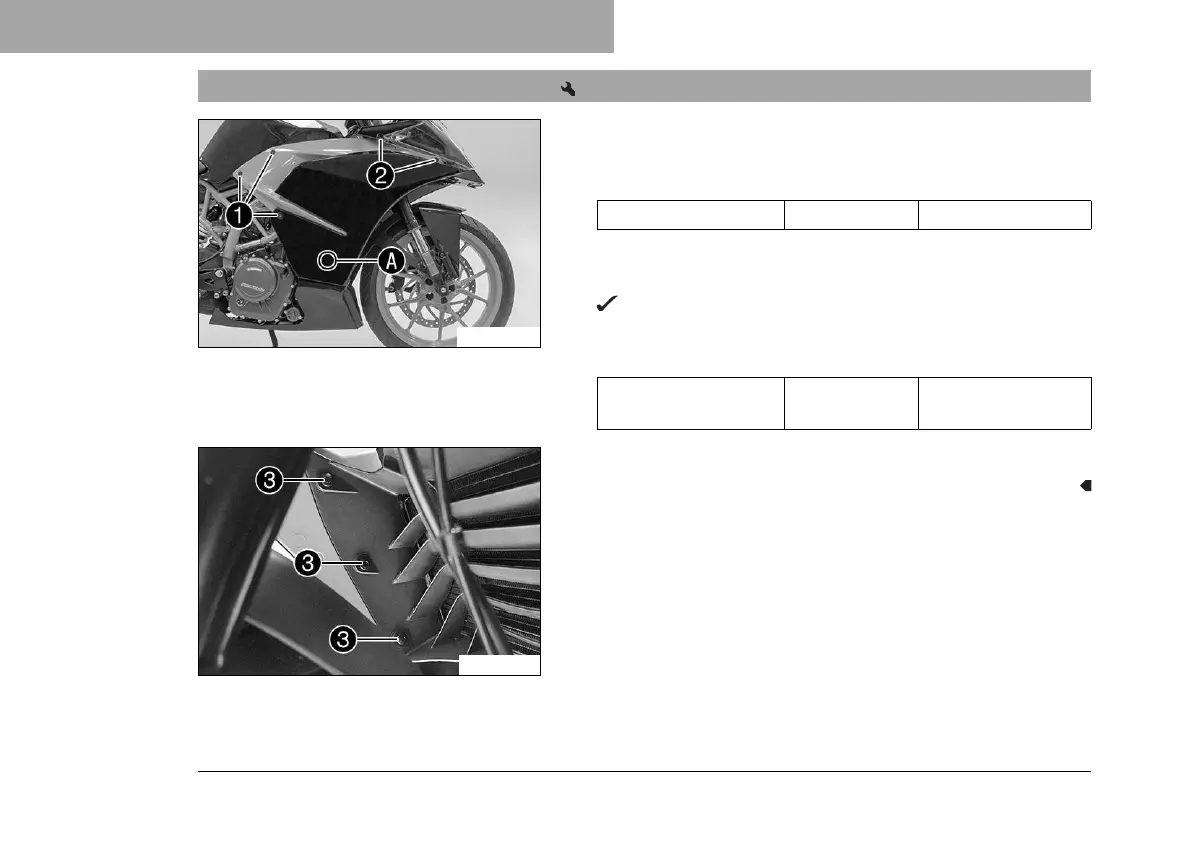

13.22 Installing the right side cover
K00714-10
– Position the side cover.
–
Mount and tighten screws
1
.
Guideline
Screw, side cover M6 6 Nm (4.4 lbf ft)
–
Press lightly on the side cover in the
A
area in order to snap
the side cover on.
The holding lug engages in the hole on the front spoiler.
–
Mount and tighten screws
2
.
Guideline
Screw, side cover on
front fairing
M6 6 Nm (4.4 lbf ft)
V00606-10
–
Mount expanding rivet
3
.
