OTHER ADJUSTMENTS AND REPLACEMENTS80
CHANGING THE BUCKET
To avoid personal injury:
A There are two people required to replace the
bucket. One person operates the excavator,
and the other one mounts the bucket.
The person who mounts the front must
command-guide the movements of the front
end attachments. The operator should move
the front end attachments only according to the
commands of the person who mounts the
bucket. A continuous intervisibility between
both persons is indispensable. If there is no
intervisibility, stop working immediately.
A When replacing the bucket, make sure to wear
an eye protection, a helmet and protective
gloves.
A During attaching and detaching, chippings and
burns may occur at the bolts or bushings.
These may cause severe injuries.
A Never use your fingers for the alignment of the
components (linkage, bucket, arm). The
components may sever your fingers by
uncontrolled movements.
A Read the manual of the attachment to do a
correct operation safely when other
attachments are installed instead of Kubota
specified bucket.
FUSES
To avoid personal injury:
A When changing fuse, stop the engine and turn
the key in position "STOP". Keep the lock lever
for attachment control in the "LOCK" position.
BReplacing Fuses
1. Remove the cover of the fuse box.
2. Replace the burnt out fuse with a fuse having the same
capacity.

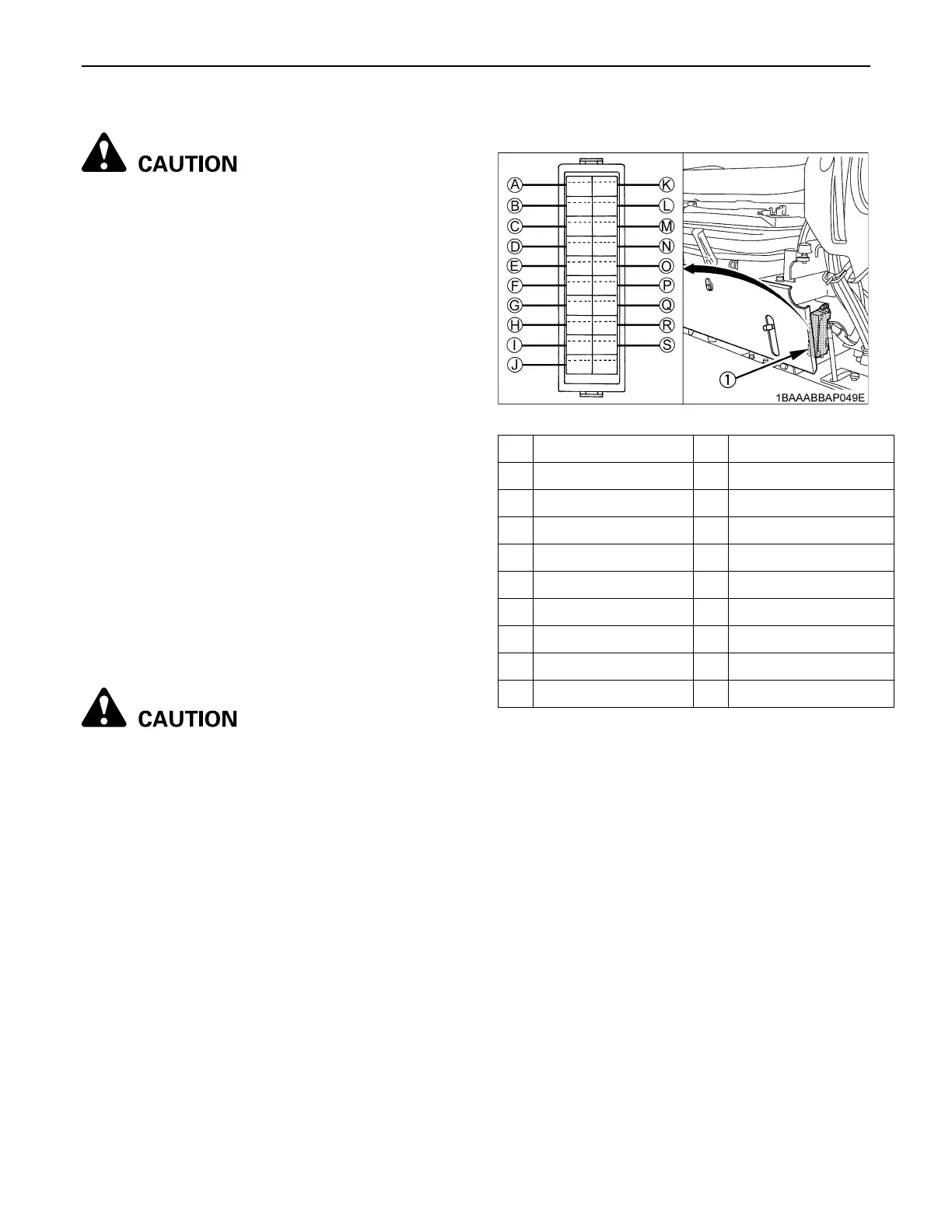

BFuse Capacities and Circuits
(1) Fuse box
(A) 5A Room Light (K) 20A Blower Motor (A/C)
(B) 20A Work Light (L) 15A AI Motor
(C) 5A Meter Sub (M) 10A Anti-theft Sub
(D) 10A Compressor (A/C) (N) 10A Alternator
(E) 15A Cigarette Lighter (O) 5A Lever Lock
(F) 15A Auxiliary (P) 10A Horn
(G) 15A Wiper / Washer (Q) 10A Meter Main
(H) 5A Anti-theft Main (R) 5A Travel Hi-Low
(I) 10A Overload Warning (S) 5A Relay Source
(J) 10A Starter
To Next Page
