Kubota KX080-3 - Auxiliary Electric; Slow Blow Fuse

81OTHER ADJUSTMENTS AND REPLACEMENTS
BAuxiliary Electric
Max power is less than 110 W including the "Beacon".
If you need another auxiliary electric, contact your
KUBOTA dealer for details.
BSlow Blow Fuse
Slow blow fuse is provided to protect the electrical circuits.
If the fusible link is blown, check the electrical circuits for
trouble and then replace with a new compatible slow blow
fuse.

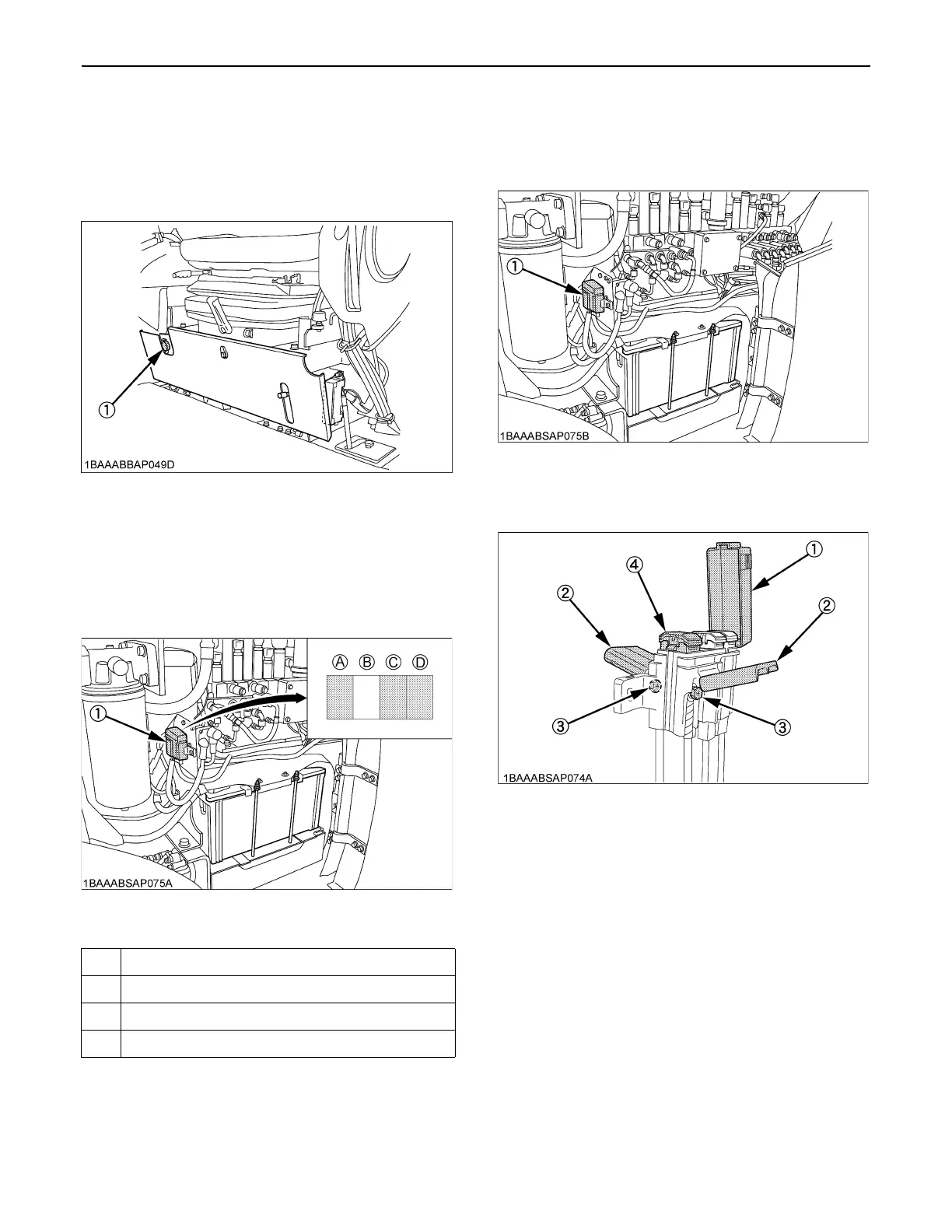

C Replacement procedure
[100 Amp. Slow-blow fuse]
1. Disconnect the negative cord of the battery.
2. Remove the slow blow fuse case.
3. Open the slow blow fuse case cap and cover then
remove the bolts and draw out the slow blow fuse (A).
(1) Auxiliary electric
(1) Slow blow fuse
(A) 100A Alternator
(B)
(C) 30A Fuel Supply Pump
(D) 60A Main Power
(1) Slow blow fuse case
(1) Slow blow fuse case cap
(2) Cover
(3) Bolt
(4) Slow blow fuse (A)
