25EXCAVATOR OPERATION

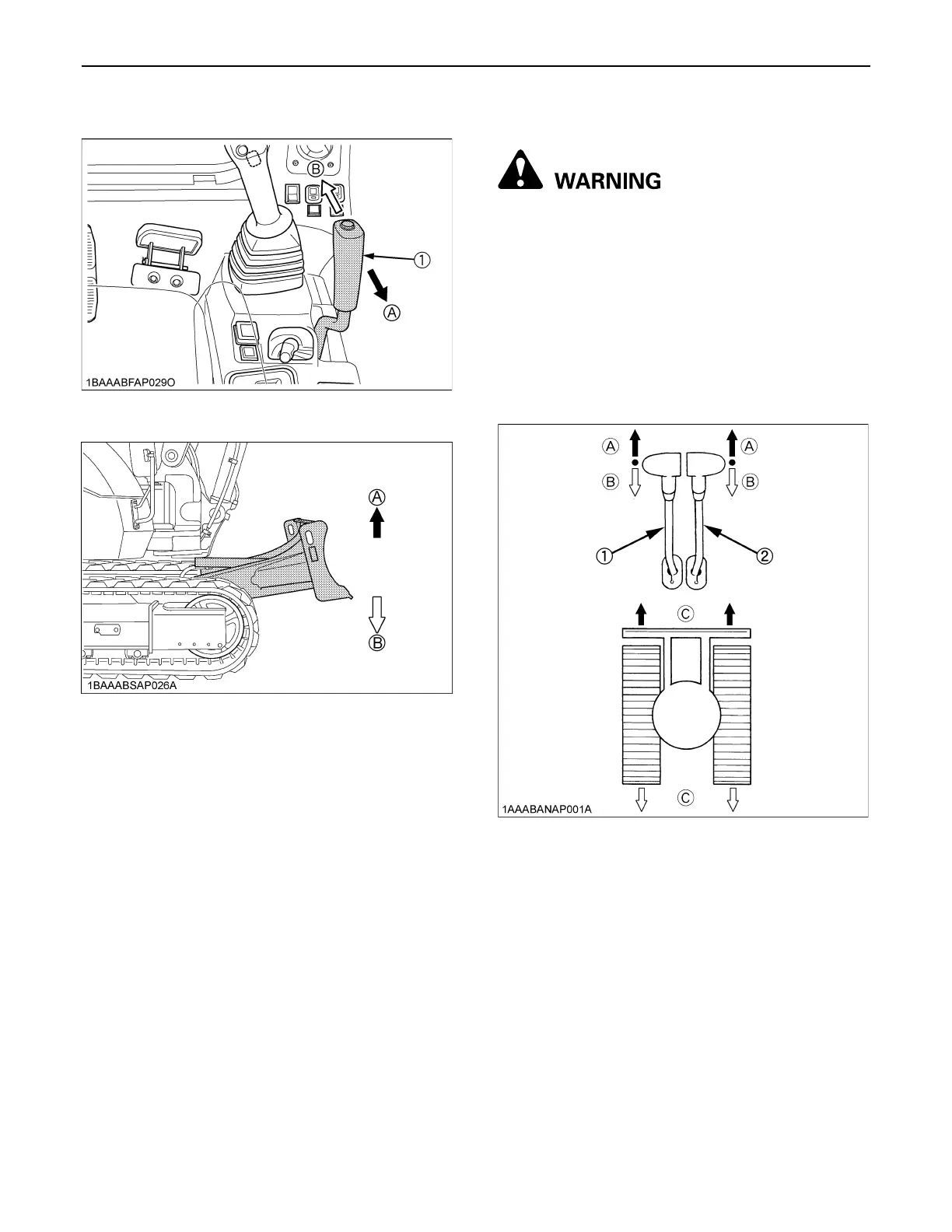

3. Activate the dozer control lever to raise the dozer.
BDrive Levers(Right,Left)
To avoid personal injury or death:
A If the swing frame has been turn 180 deg, i.e. the
dozer in relation to the operator's seat is
"behind", then the travel direction is opposite to
the drive direction of the levers (when activating
the drive lever forward, the machine, in relation
to the operator's seat, will move backward).
Pushing the drive lever forwards, moves the excavator
forwards, and vice-versa. The front of the excavator is the
side where the dozer is located; the drive sprocket is in the
rear of the excavator.
(1) Dozer control lever (A) "Raise"
(B) "Lower"
(A) "Raise"
(B) "Lower"
(1) Drive lever (left)
(2) Drive lever (right)
(A) "Forward"
(B) "Backward"
(C) "Straight"
