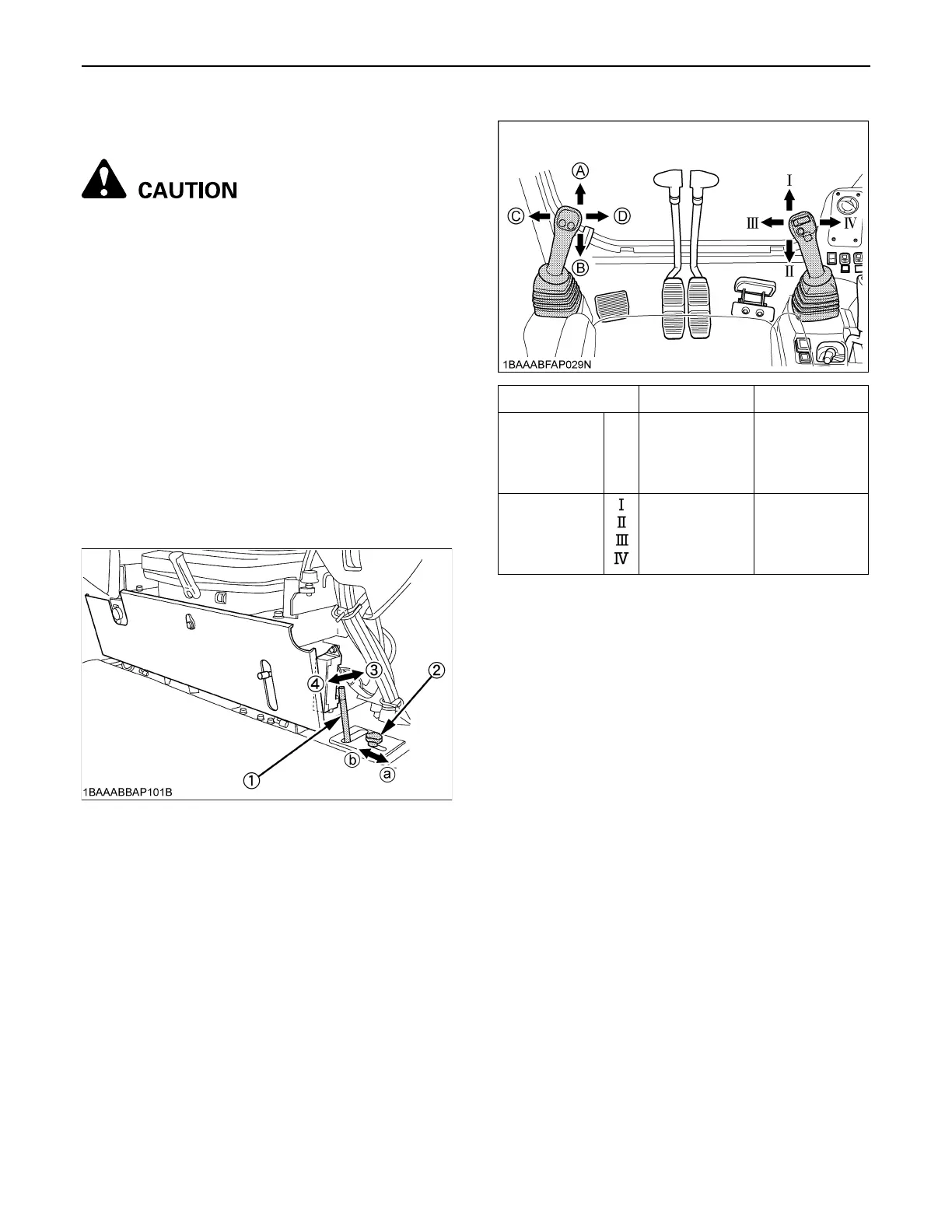

EXCAVATOR OPERATION30
TWO PATTERN SELECTION
SYSTEM(TPSS)
To avoid personal injury:
A Study control lever pattern A and pattern B.
Then choose the one which is most familiar.
A Position the pattern selector lever (located on
the left side of operator's seat) in either the rear
position (pattern A) or the front position
(pattern B).
A Engage the lock lever to prevent accidental
pattern change.
A Familiarize yourself with the pattern selected
by operating slowly.
BPattern Change
1. Loosen the lever lock knob (2) and slide it to the
direction (a), and position the pattern selector lever (1)
to the desired position.
2. Slide the lever lock knob (2) to the direction (b) and
tighten it.
(1) Pattern selector lever
(Two Pattern Selection System:TPSS)
(2) Lever lock knob
(3) Pattern A
(4) Pattern B
Lever Position Pattern A Pattern B
Attachment
Control Lever
(Left)
A
B
C
D
Boom down
Boom up
Swing left
Swing right
Arm up
Arm crowd
Swing left
Swing right
Attachment
Control Lever
(Right)
Arm up
Arm crowd
Bucket crowd
Bucket dump
Boom down
Boom up
Bucket crowd
Bucket dump
