15OPERATION OF THE ENGINE
BDisplay Selector Switch
Press the display selector switch while the engine is
running. The LCD meter display will change from one
indication mode to the other.
Change the two-mode display according to your jobs.
A With the starter key at the "STOP" position, press the
electronic meter's display selector switch or the
working light switch, and the LCD display shows the
hour meter, fuel gauge and water temperature gauge
for 10 seconds.
BCharge Lamp
This warning lamp lights up if the charging system fails the
engine running. When the starter switch is turned "RUN"
with the engine off, the lamp lights up, and when the
engine gets started, the lamp goes out. If the lamp stays
on with the engine running, stop the engine and check the
fan belt.
A If there is disconnection or failure in the charging
system when the key is turned to "RUN", the following
symbol will appear.
BOil Lamp
The engine oil pressure warning lamp lights up due to
failure of the lubricating system with the engine running.
When the starter switch is turned "RUN" with the engine
off, this lamp lights up, and when the engine starts, the
lamp goes out. If the lamp stays on with the engine
running, stop the engine and check the engine oil level.
A If there is disconnection, failure or breakdown in the
lubricating system when the key is turned to "RUN",
the following symbol will appear.
BGlow Lamp
With the starter key at the "RUN" position, the engine's
preheat status is indicated.
A When the starter switch is turned to the "RUN"
position, the engine will be preheated for a given
period of time and the lamp will turn on.
A The above indication appears momentarily when the
engine is started, but it does not mean any trouble.
(This is because the oil charge sensor output becomes
unstable when the engine is started.)
A The symbol appears momentarily as the engine
starts. This is not an error.

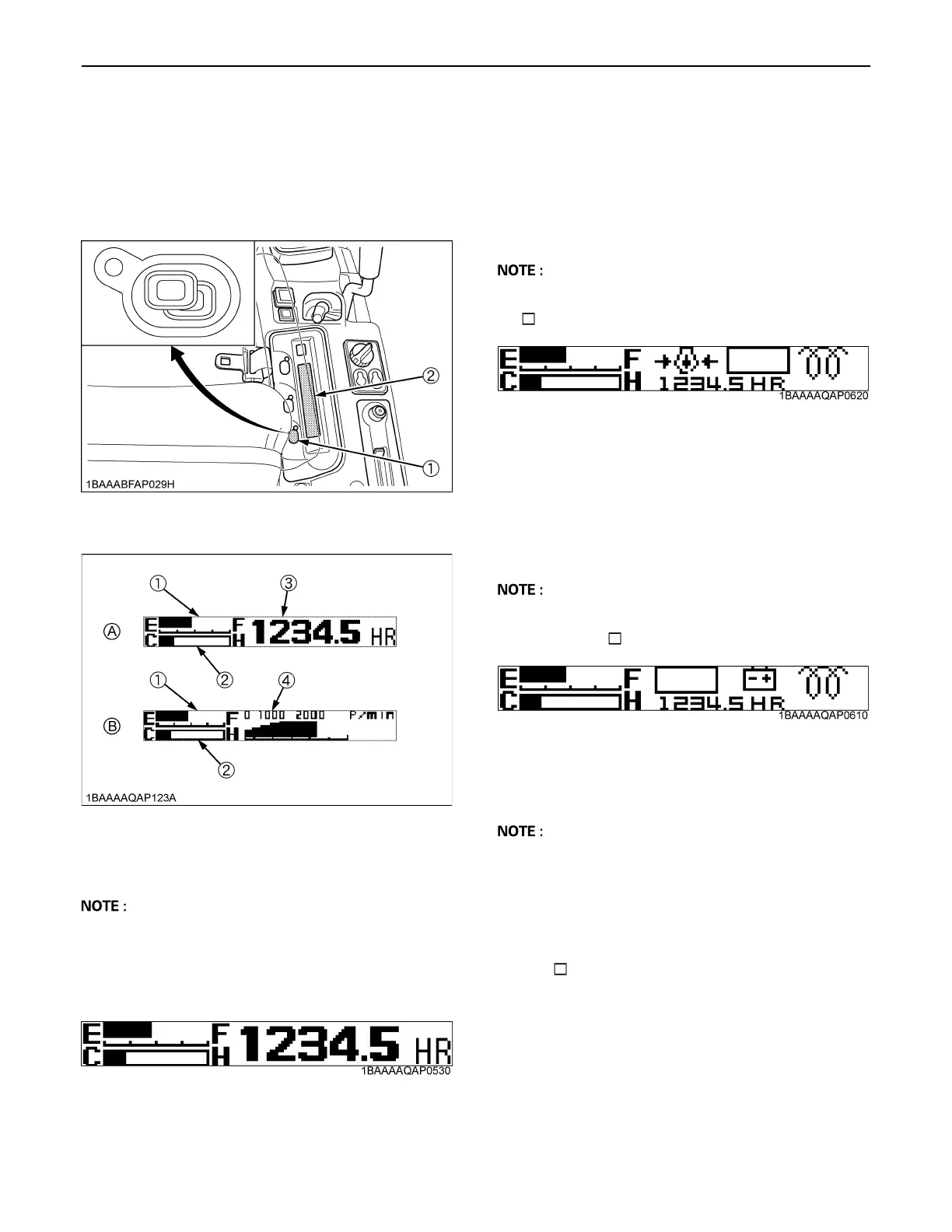

(1) Display selector switch
(2) LCD display
(1) Fuel gauge
(2) Water temperature gauge
(3) Hour meter
(4) Engine tachometer
(A) "INDICATION MODE 1"
(B) "INDICATION MODE 2"
