47LIFTING OF THE EXCAVATOR
3. Tackle
The weights of the excavators and the recommended
tackle for lifting these loads are mentioned in the
following table. Choose components having enough
strength.
*Excavator Weight: With CAB, steel tracks.

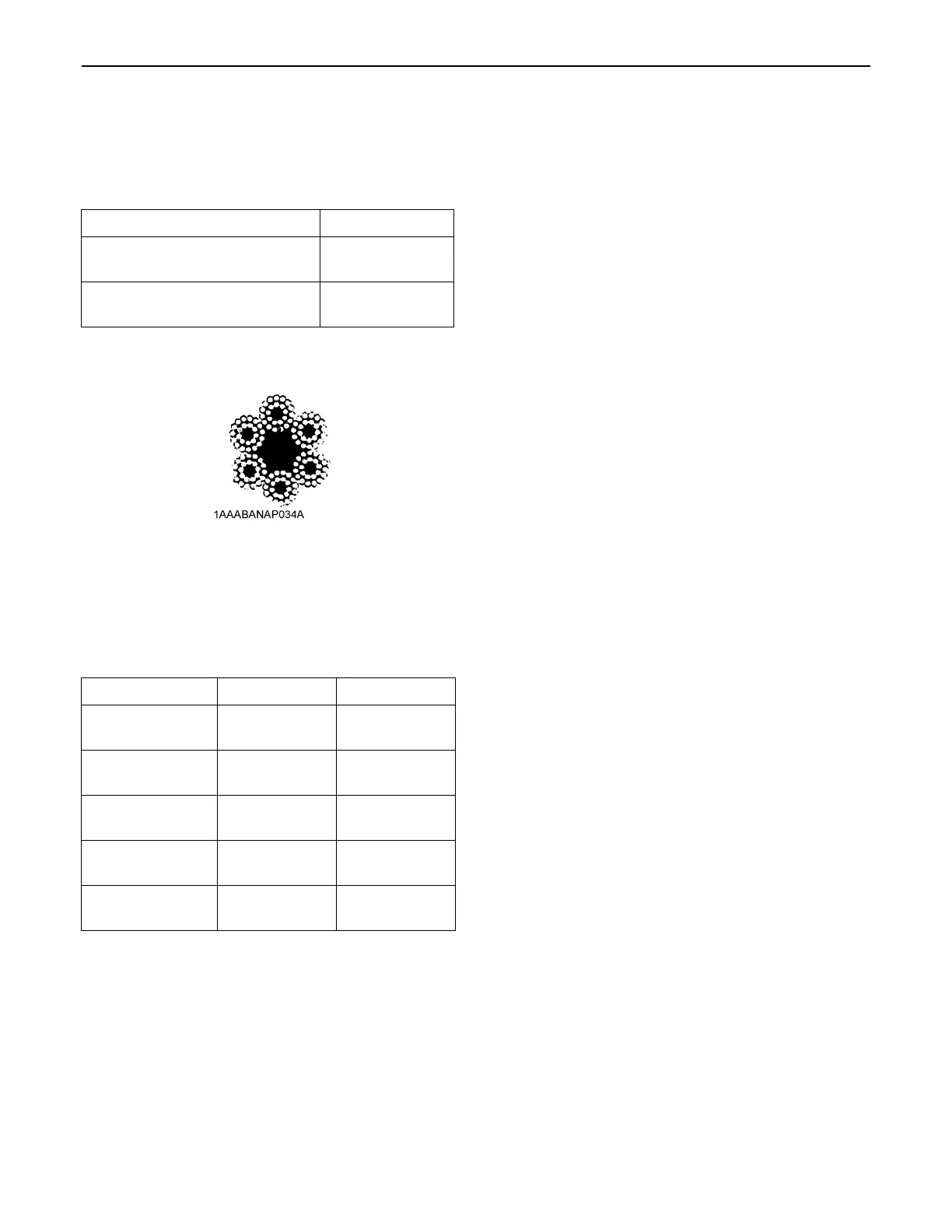

Steel wire: 6X24
4. Lifting
(1) Lift slowly and safely
(2) Do not enter the excavator area when lifting.
(3) Lift the excavator horizontally. (Modify cable or
strap connections according to needs)
Maximum strength
for example: (JIS G 35 25) - "6X24"
Excavator Weight* kg 8250
Load / Cable
kN
(kgf)
30.7
(3131)
Minimum Wire Diameter
(Safety factor=6)
mm 22.4 or more
Diameter zinc-plated not zinc-plated
14 mm
(9/16)
kN
(kgf)
89.7
(9147)
96.6
(9850)
16 mm
(5/8)
kN
(kgf)
117
(11931)
126
(12848)
18 mm
(45/64)
kN
(kgf)
148
(15092)
160
(16315)
20 mm
(3/4)
kN
(kgf)
183
(18661)
197
(20088)
22.4 mm
(-)
kN
(kgf)
230
(23453)
247
(25187)
