4 INSTRUMENT PANEL AND CONTROL ELEMENTS
INSTRUMENT PANEL AND CONTROL ELEMENTS

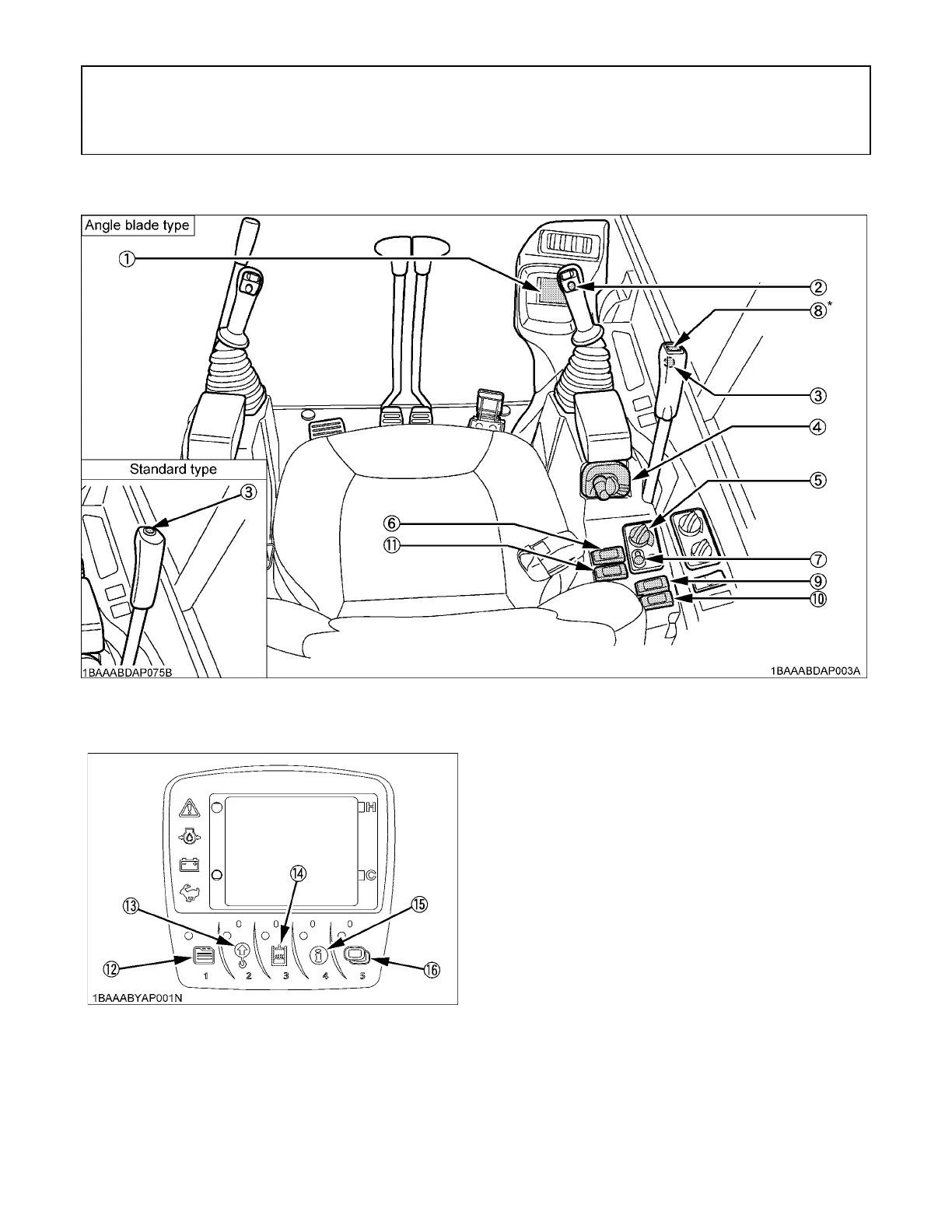

B Instrument Panel, Switch
(1) LCD display
(2) Horn switch
(3) Travel speed switch
(4) Starter switch
(5) Throttle potentiometer
(6) Light switch
(7) Auto idle control switch
(8) Angle blade control switch
*Angle blade type only
(9) Eco mode switch
(10) DPF inhibit switch
(11) Beacon light switch
Ref. page
Starter switch............................................................. 6
LCD display................................................................ 7
Fuel gauge
Water temperature gauge
Hour meter
Engine tachometer
Glow lamp
User setting switch
AUX port enable switch
Information switch
Display selector switch............................................... 7
Warning lamp............................................................. 10
(12) User setting switch (Switch 1)
(13) - (Switch 2)
(14) AUX port enable switch (Switch 3)
(15) Information switch (Switch 4)
(16) Display selector switch (Switch 5)
Horn switch................................................................ 17
Light switch................................................................ 17
Auto idle control switch............................................... 18
Throttle potentiometer................................................ 18
Travel speed switch................................................... 18
