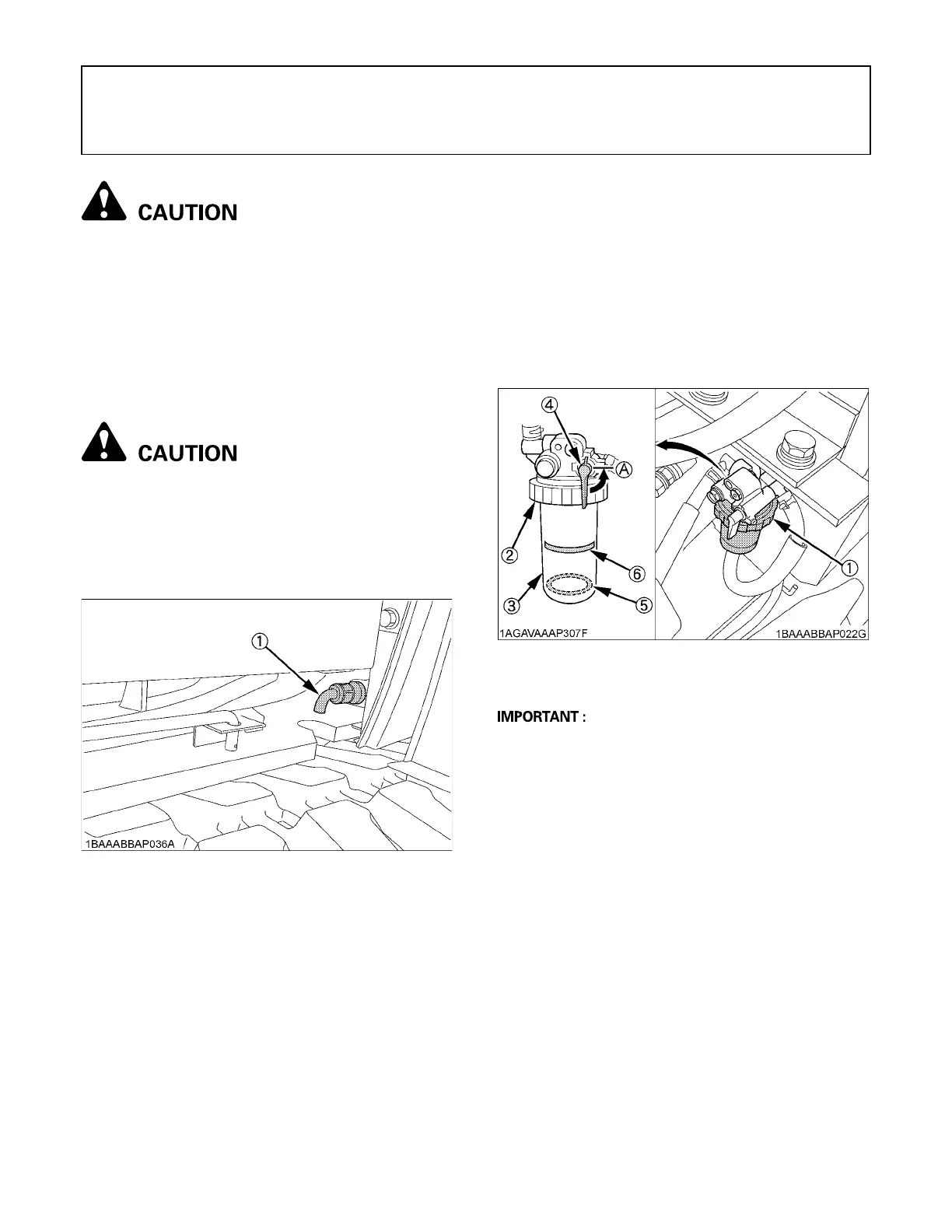

REGULAR CHECKS AND MAINTENANCE WORK
To avoid personal injury:
A When operating, keep hands and body inside
of the ROPS/OPG (Top Guard Level I)
protective envelope.
A Do not touch the control levers and the pedals
from outside the cab during the engine
running.
EVERY 50 SERVICE HOURS
BDraining the Water from the Fuel Tank
To avoid personal injury:
A Before draining the water from the fuel tank, be
sure to stop the engine and remove the key.
A Do not smoke during inspection.
1. Open the side cover.
2. Open the drain shutoff-valve.
BDraining Water Separator
1. Open the side cover.
2. When the separated water is entering the sediment
cup, the red float moves upwards.
When the float reaches the line, close the shutoff-
valve so that no fuel can run out. Now loosen the ring
nut, and remove the cup and empty completely.
3. Finally, do not forget to open the shutoff-valve and
close the side cover after the cup has been
reinstalled.
A If the water separator is full with water, it means that
there may be water in the fuel filter. In such case, drain
the fuel filter.
(See "Draining Fuel Filter" in "REGULAR CHECKS
AND MAINTENANCE WORK" section.)
(1) Drain shutoff-valve
(1) Water separator
(2) Ring nut
(3) Cup
(4) Shutoff-valve
(5) Float
(6) Line
(A) CLOSE
