LIFTING OF THE EXCAVATOR58
A While lifting, carefully keep the machine well balanced
with its center of gravity in mind.
A Do not lift the machine with the boom swinging or the
upper structure swiveling.
3. Tackle
The weights of the excavators and the recommended
tackle for lifting these loads are mentioned in the
following table. Choose components having enough
strength.

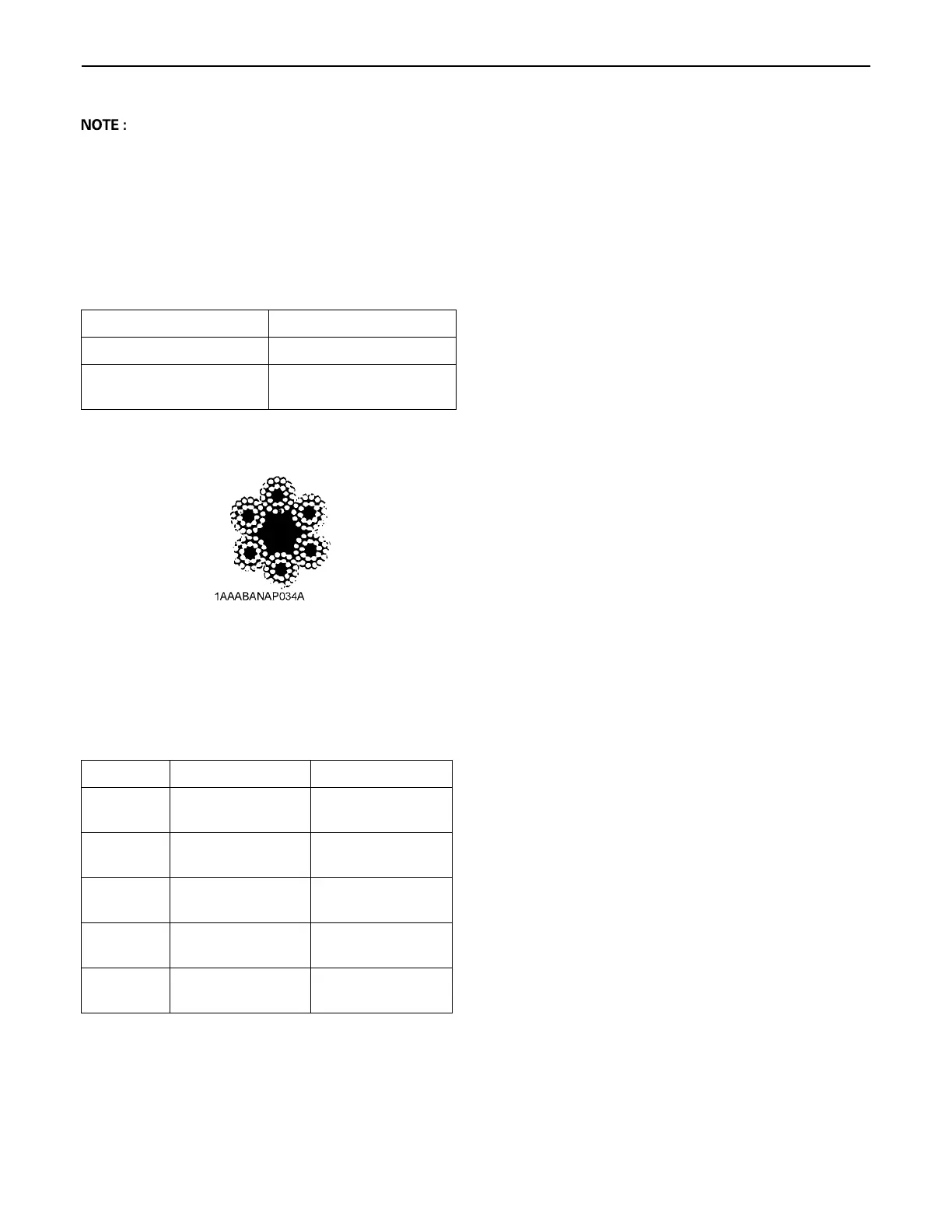

*Excavator Weight: With CAB, steel tracks.
Steel wire: 6X24
4. Lifting
(1) Lift slowly and safely
(2) Do not enter the excavator area when lifting.
(3) Lift the excavator horizontally. (Modify cable or
strap connections according to needs)
Maximum strength
for example: (JIS G 35 25) - "6X24"
Excavator Weight* 8680 kg (19136 lbs)
Load / Cable 32.0 kN (7194 lbf)
Minimum Wire Diameter
(Safety factor=6)
22.4 mm (0.88 in.) or more
Diameter zinc-plated not zinc-plated
14 mm
(9/16)
89.7 kN (20165 lbf) 96.6 kN (21717 lbf)
16 mm
(5/8)
117 kN (26303 lbf) 126 kN (28326 lbf)
18 mm
(45/64)
148 kN (33272 lbf) 160 kN (35969 lbf)
20 mm
(3/4)
183 kN (41140 lbf) 197 kN (44287 lbf)
22.4 mm
(-)
230 kN (51706 lbf) 247 kN (55528 lbf)
