53INTELLIPANEL(TM) CONTROL
C Setting the engine rpm memory
1. Touch the target engine rpm point on the engine rpm memory control graph (3), and the slider will move to the touched
point.
2. With the "Plus (+)" or "Minus (-)" switch (5 or 6), finely adjust the rpm memory setting.
Every time the switch is pressed, the speed varies in 10-rpm increments or decrements.
3. The engine rpm memory control (B) can also be preset in the same procedure.

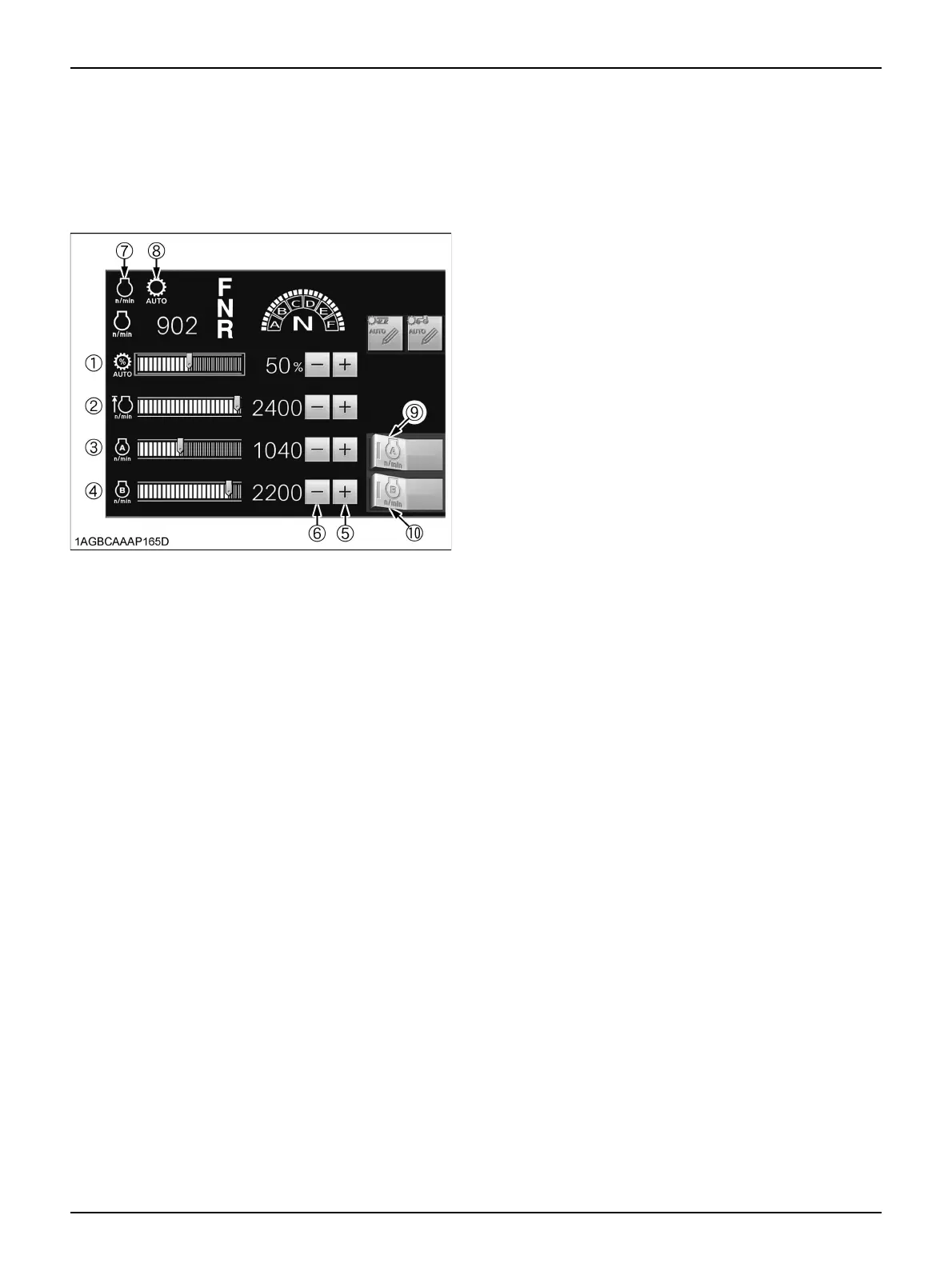

(1) Auto shift sensitivity control
(2) Rev-limiter control
(3) Engine RPM memory (A) control
(4) Engine RPM memory (B) control
(5) Plus (+) switch
(6) Minus (-) switch
(7) Engine RPM memory (A/B) indicator
(8) Auto shift mode (Road/Field) indicator
(9) Engine RPM memory (A) switch
(10) Engine RPM memory (B) switch
