7. - Instructions for transport
KN270BGB_F
Mower conditioner

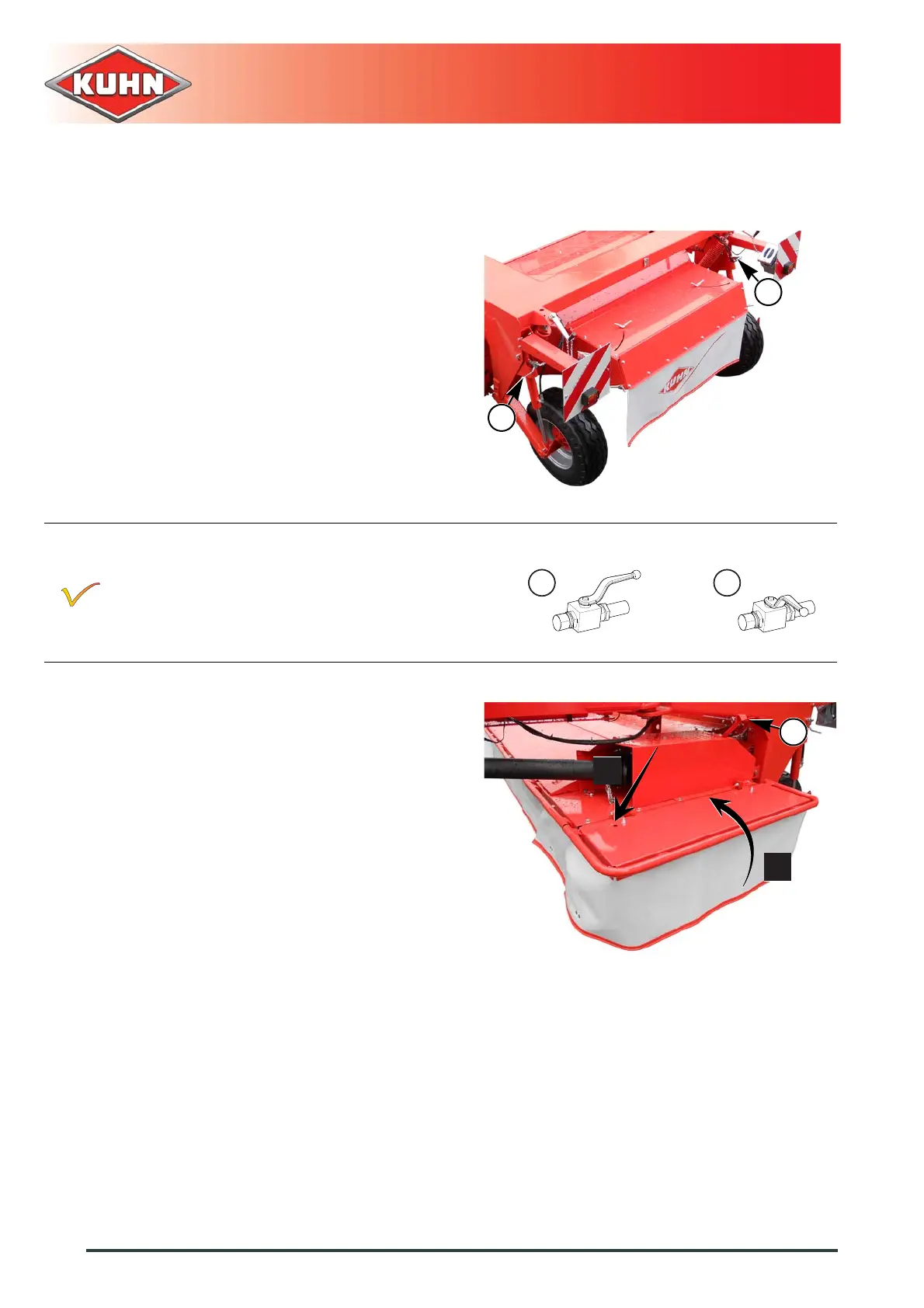

- Activate mowing unit lift cylinders to fully raise the
machine.
- Shut-off mowing unit lift cylinder lock valves (1).
Opened position (1).
Closed position (2).
- Release and lift side guard using 18mm box
spanner supplied with the machine:
• (a): Position wrench.
• (b): Unlock and raise side guards.
- Lock guard in raised position using spring (1).
- Proceed the same way on the other side.
