10.3.2 Checking cutterbar oil level
FC302G - FC302GI

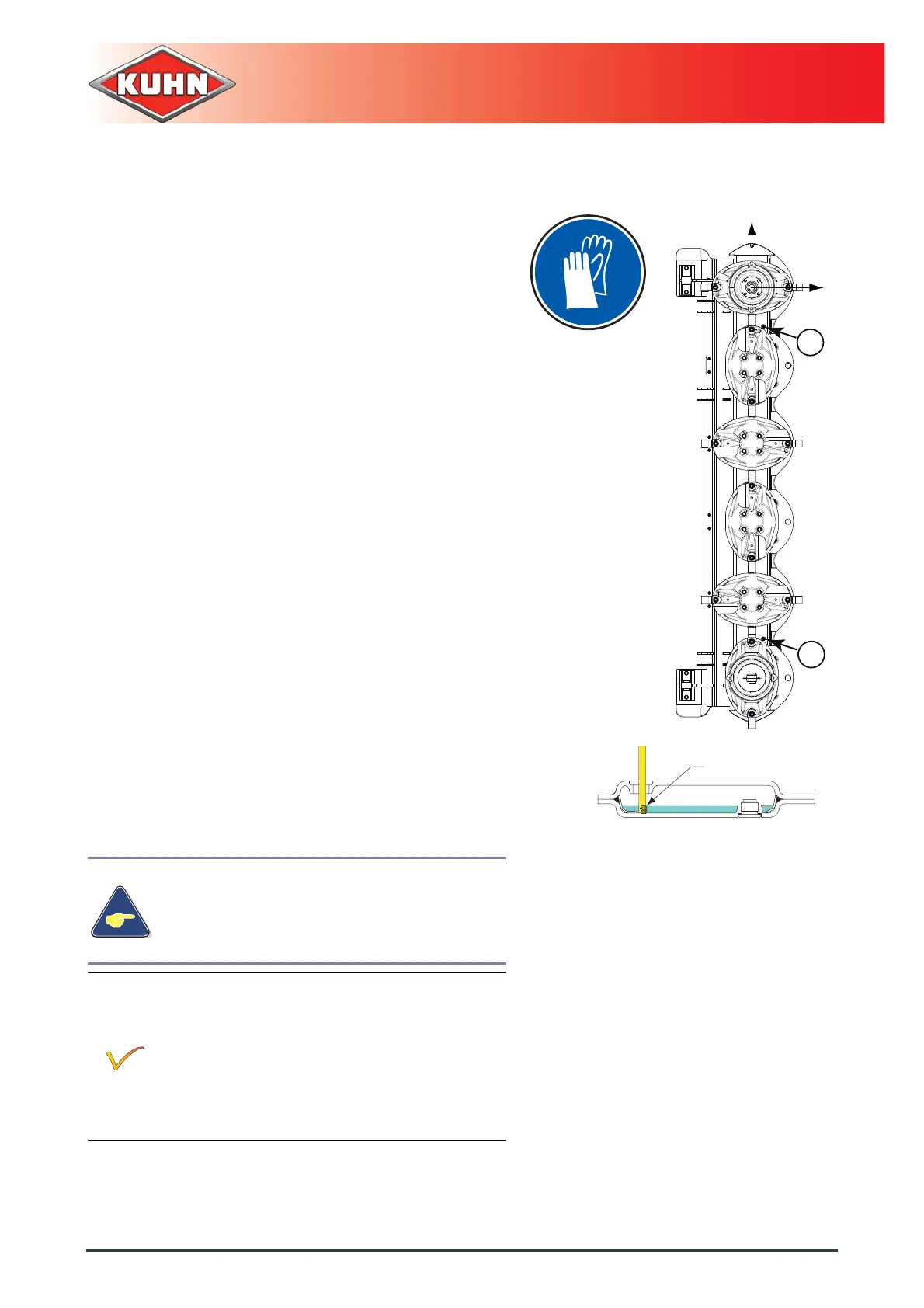

- Regularly check the cutterbar oil level:
• Place the cutterbar in horizontal position (with
regards to X and Y axis).
• Remove filler plug (1) and (2) as well as their
seals.
• Check, through openings, that the oil height
corresponds to a value (h) comprised between
2 mm (0.08’’) and 3 mm (0.11’’).
• Top up if necessary.
• Clean and reinstall filler plugs and their seals (1)
and (2). (Replace if necessary).
h
X
Y
1
2
If in doubt as to the oil quantity contained in
the cutterbar, fully drain and refill cutterbar
respecting recommended oil quantity and
quality.
If it is found that the transmission case is very hot
to touch by hand, there is no cause of alarm
provided:
- Lubrication recommendations have been
respected.
- Discs can be rotated freely by hand when the
machine is hot.
