Disc mower
6. Putting into service

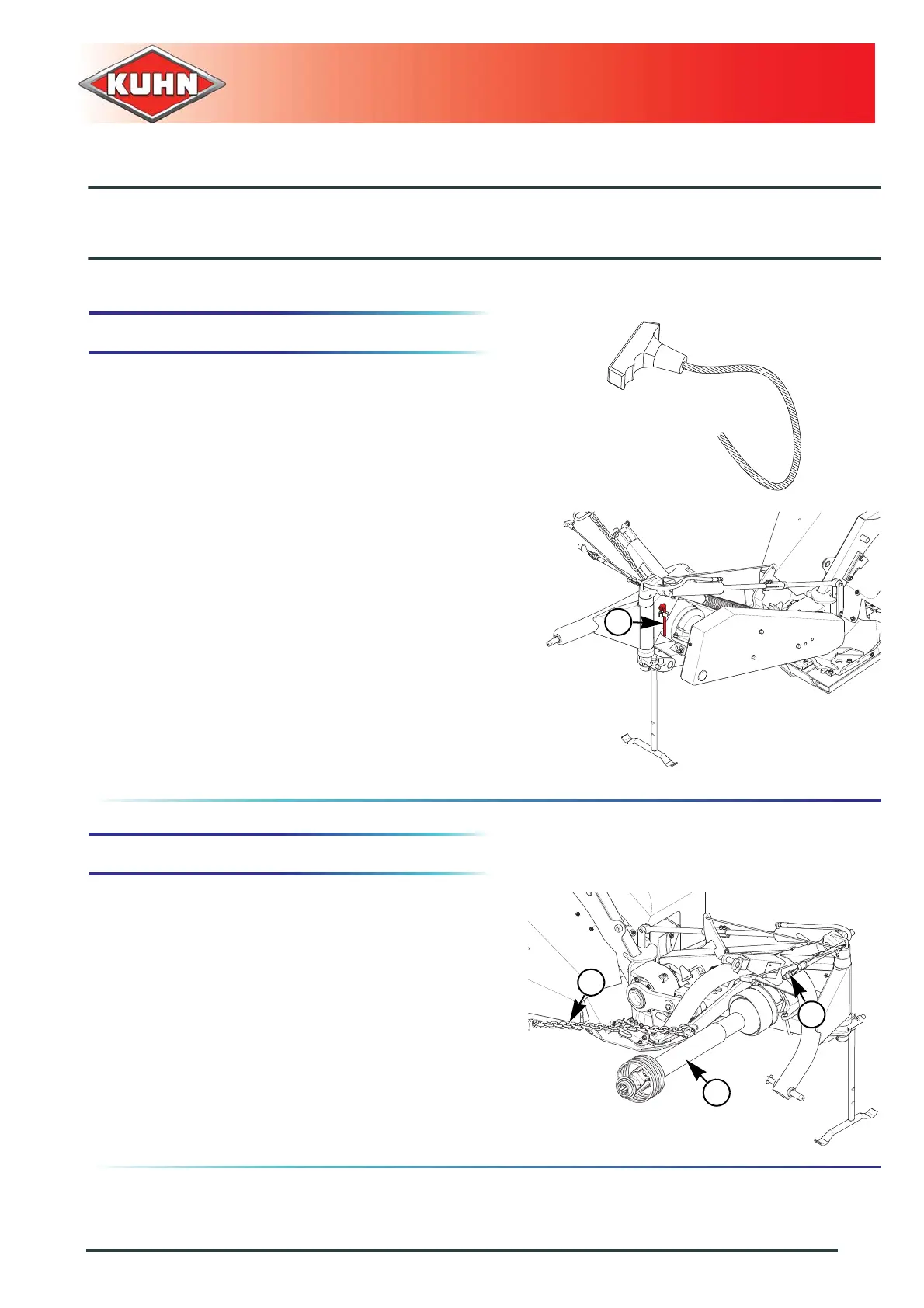

6.1 Description of control elements
The machine is fitted with a release cord operated
from the tractor cab.
The machine is supplied with an 18 mm box wrench
(1) to carry out certain adjustment and maintenance
tasks.
6.2 Coupling and uncoupling
The machine adapts to tractors fitted with a 3 point
linkage category 2.
6.2.1 Description of coupling elements
• A PTO shaft 1 3/8’’ - 6 splines (1).
• A check chain (2).
• One hydraulic hose which controls the machine
transport/work position setting (3).
1
3
1
2
