KUHN GMD28 - Appendix: Load Calculations; Calculating the Load on an Axle

12. - Appendix
GMD24-GMD28 / HD
79
KN226BGB_A
Disc mower
12. Appendix

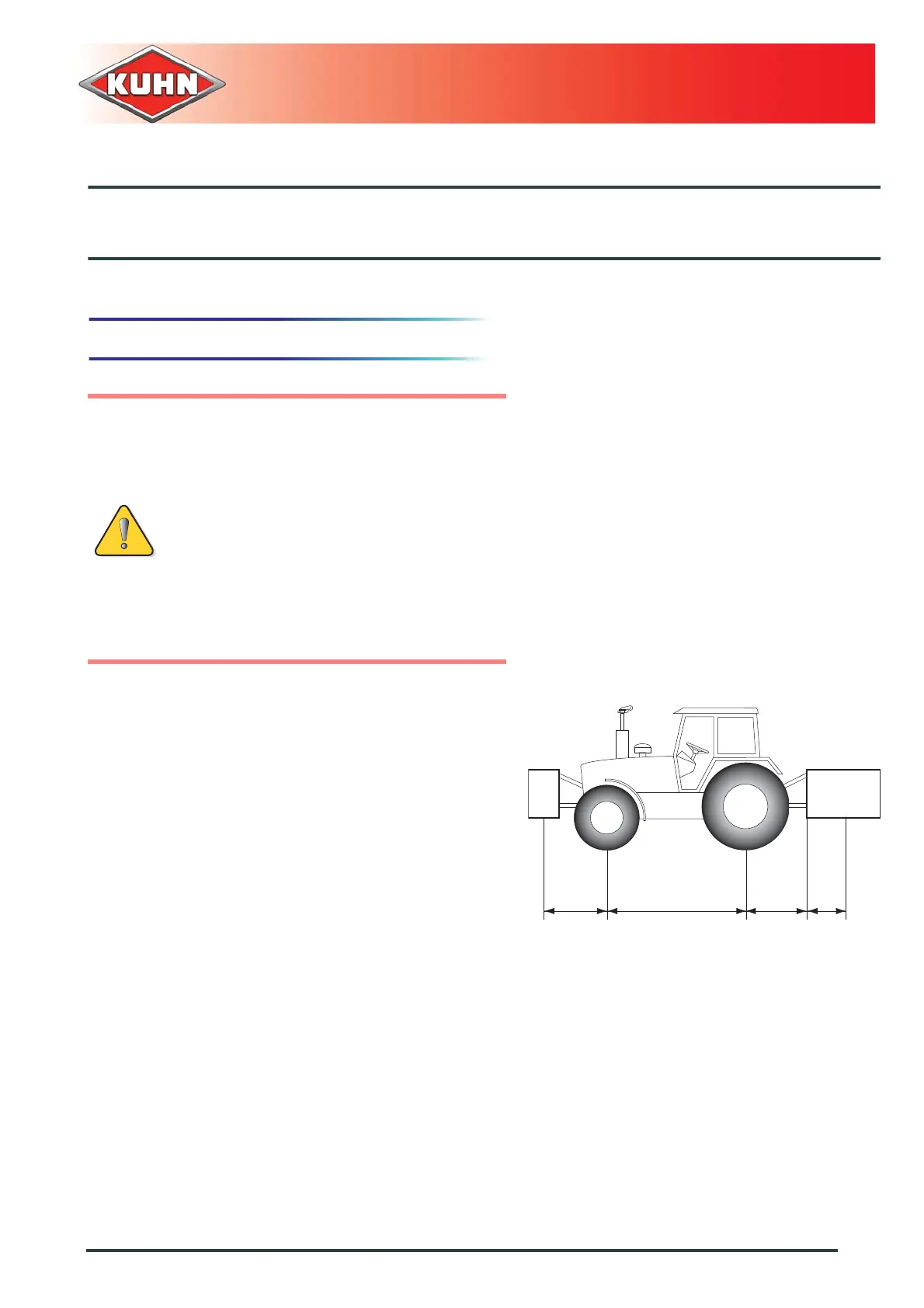

12.1 Calculating the load on an axle
When coupling a tool to the front and/or rear
3-point lift linkage, the maximum authorized
payload must not be exceeded.
When coupling tools to the front and/or rear
3-point lift linkages, the maximum load on
tractor's tires must not be exceeded.
The load on the tractor front axle must
always represent 20 % of the tractor unladen
weight.
Prior to use, check that these conditions are
satisfied by making this calculation or by
weighing the tractor-machine unit

Define the total weight, axle loads, tyre
capacity and minimum additional mass
The following values are required for the calculation:
M1
abcd
T
1
T2
M2
