KUHN GMD28 - Disc Replacement

GMD24-GMD28 / HD
74
10. - Maintenance and storage
KN226BGB_A
Disc mower

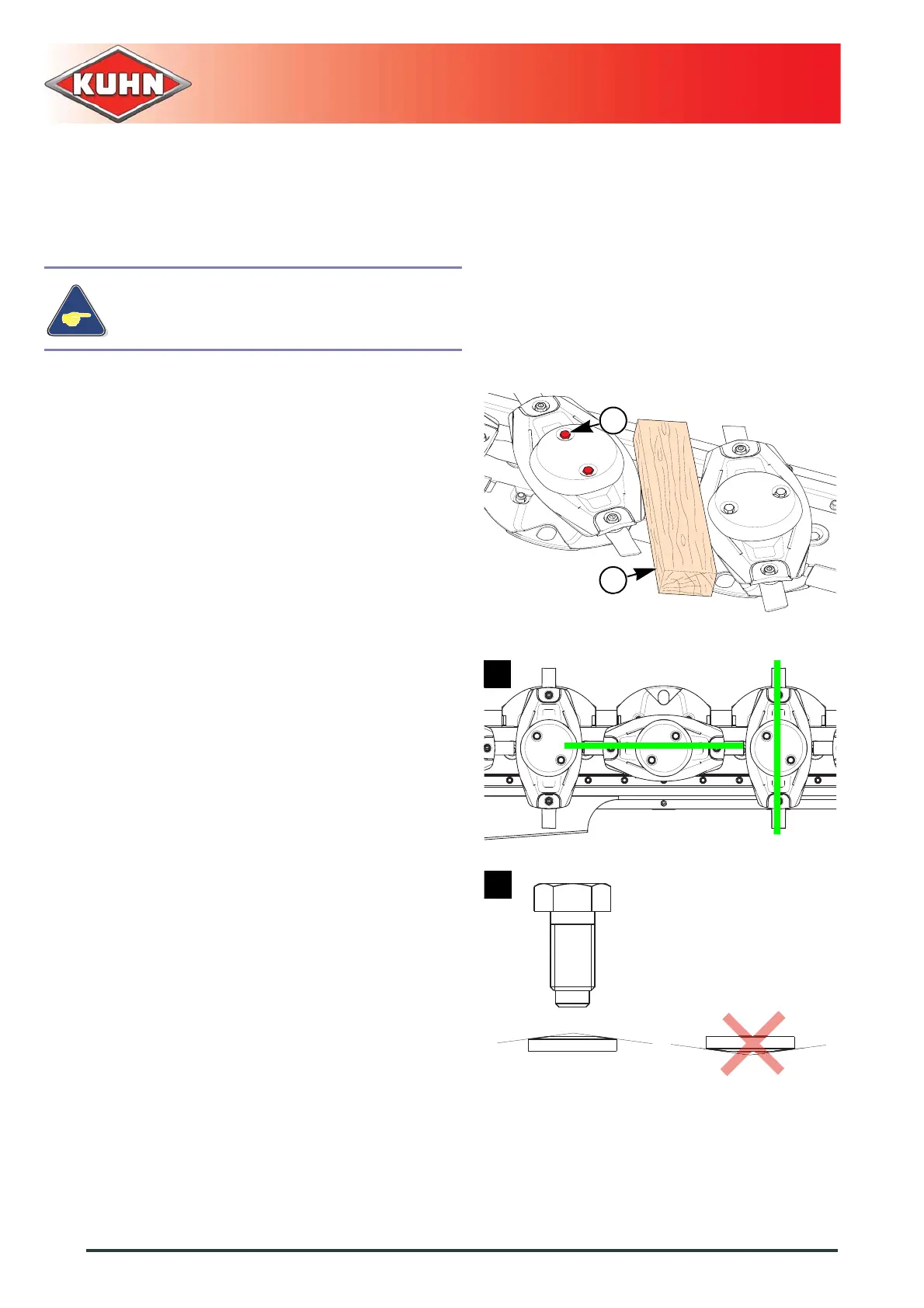

10.3.6 Disc replacement
 Inner disc
The replacement of the inner disk must be
carried out by your Kuhn authorized dealer.

Intermediate discs
- Place a wooden wedge (2) between two discs to
stop them from moving.
- Remove 2 bolts (1) and their spring washers using
the box spanner supplied with the machine.
- Remove the disc conical cover.
- Remove the 2 other nipple-screws and their spring
washers.
- Remove the disc.
When remounting:
- Position their largest diameters at right angles to
each other: (a).
- Position conical centre of spring washer at the top:
(b).
1
2
a
+
+
+
+
+
+
+
+
+
b
