10. - Maintenance and storage
GMD24-GMD28 / HD
75
KN226BGB_A
Disc mower

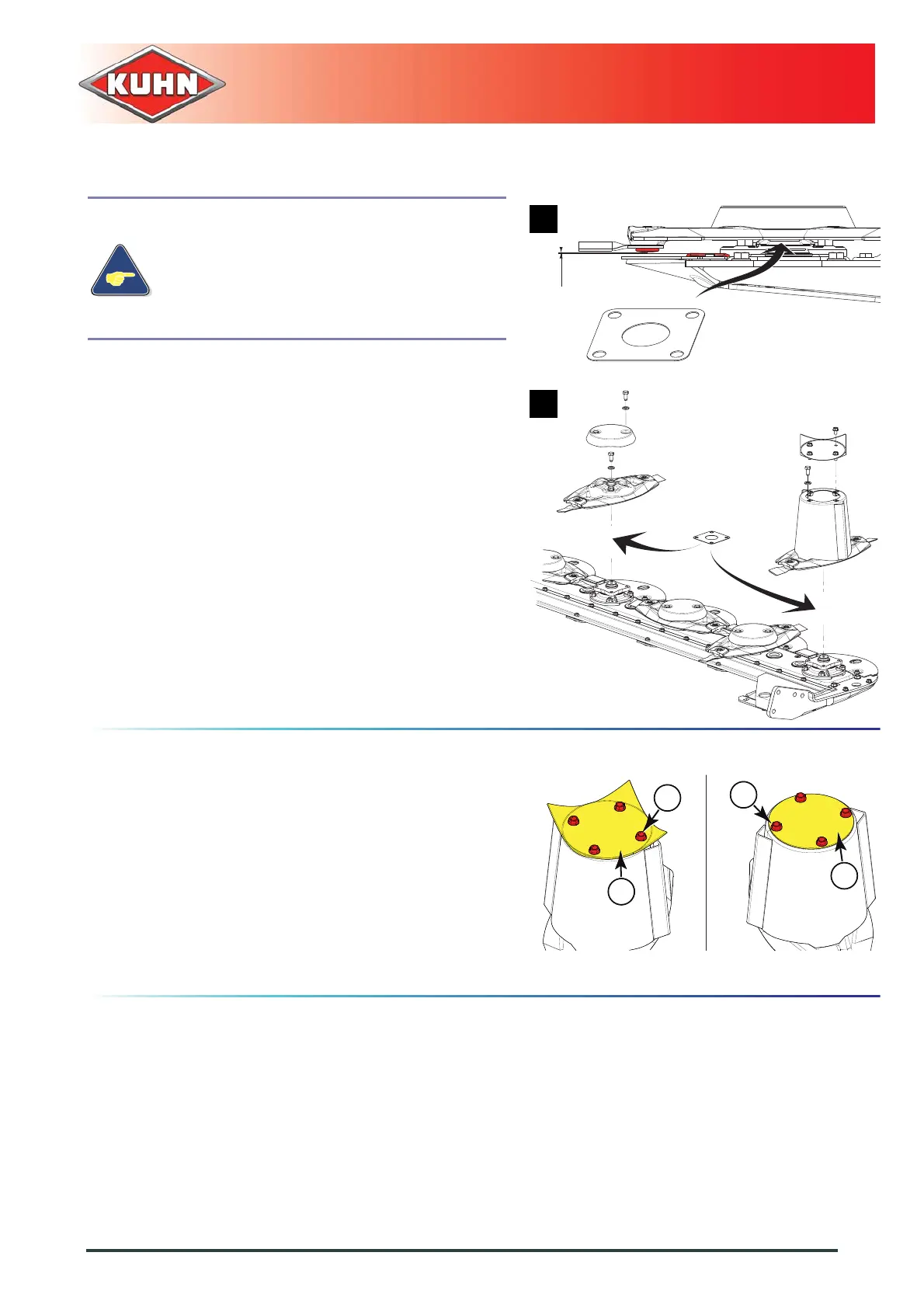

- Check if there is still a minimum gap X = 1
mm (0.04’’) between the disk lower part and
the cutter bar wear plates(c).
- If this is not the case, fit one (maximum
two) spacer(s) between the disc and the
mounting hub (d).
- Tighten screws:
• Torque: 12 daNm (89 lbf ft).
10.3.7 Outer and inner cones
- Check torque of attachment bolts (1) of outer and
inner cone covers (2) and (3):
• Torque: 6 daNm (44 lbf ft).
- Replace any lost or damaged cover.
X
c
d
1
2
3
1
