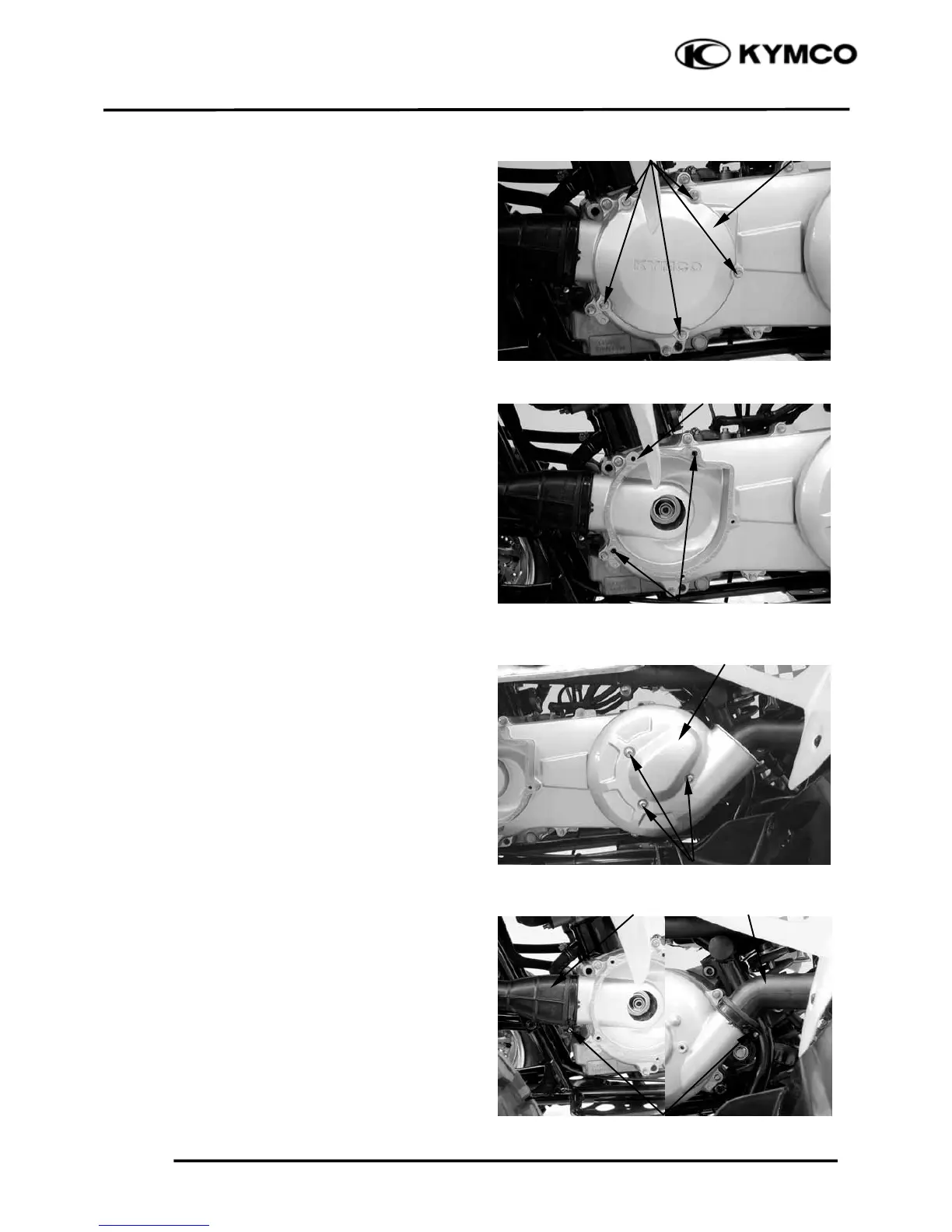

9.DRIVE AND DRIVEN PULLEYS
9-3
Mongoose/KXR 250
LEFT CRANKCASE COVER
REMOVAL
Remove the five bolts.
Remove the starting cover.
Remove the dowel pins and gasket.
Remove the three bolts.
Remove the outlet hose cover.
Loosen the drive belt air inlet and outlet hose
band screws and disconnect them from the
left crankcase cover.
Bolts
Starting Cove
r
Dowel Pins
Gaske
t
Bolts
Outlet Hose Cove
r
Screws
Inlet Hose Outlet Hose
