16. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
16-6
Mongoose/KXR 250
CHARGING SYSTEM
SHORT CIRCUIT TEST

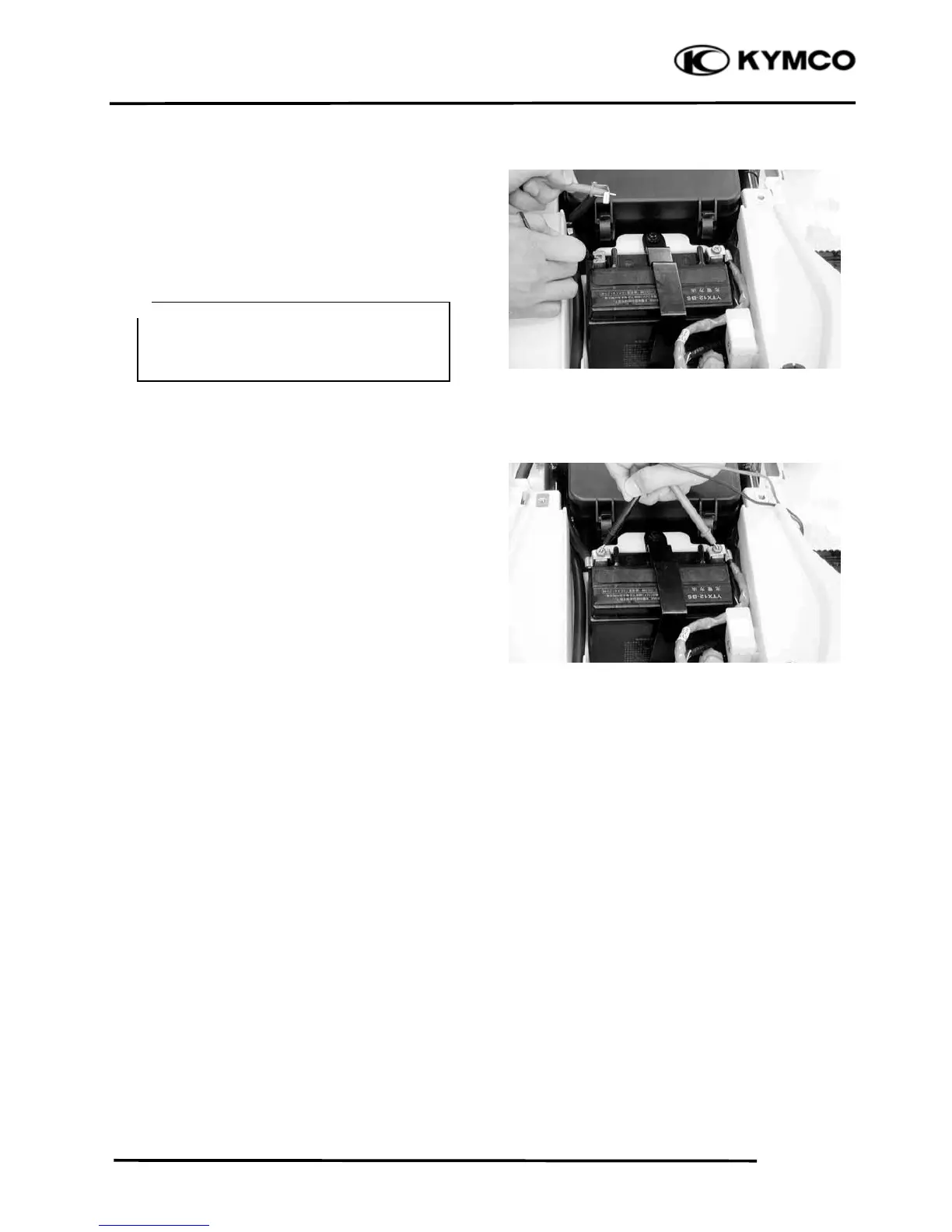

Disconnect the ground wire from the battery
and connect an ammeter across the battery
negative (-) terminal and the ground wire.
Turn the ignition switch OFF and check for
short circuit.
If any abnormality is found, check the
ignition switch and wire harness for short
circuit.
CURRENT TEST
This inspection must be performed with an
electric tester when the battery is fully
charged.
Warm up the engine for inspection.
Connect the electric tester across the battery
terminals. Disconnect the red wire from the
fuse terminal and connect an ammeter
between the red wire lead and the fuse
terminal as shown.
Attach a tachometer to the engine.
Start the engine and gradually increase the
engine speed to measure the limit voltage
and current.
Limit Voltage/Current: 13.5～15.5V/0.5A
max.
If the limit voltage is not within the
specified range, check the
regulator/rectifier.
Connect the electric tester positive (+)
terminal to ground wire and the tester
negative (-) terminal to the battery
negative (-) terminal.
＊
