9.DRIVE AND DRIVEN PULLEYS
9-7
Mongoose/KXR 250

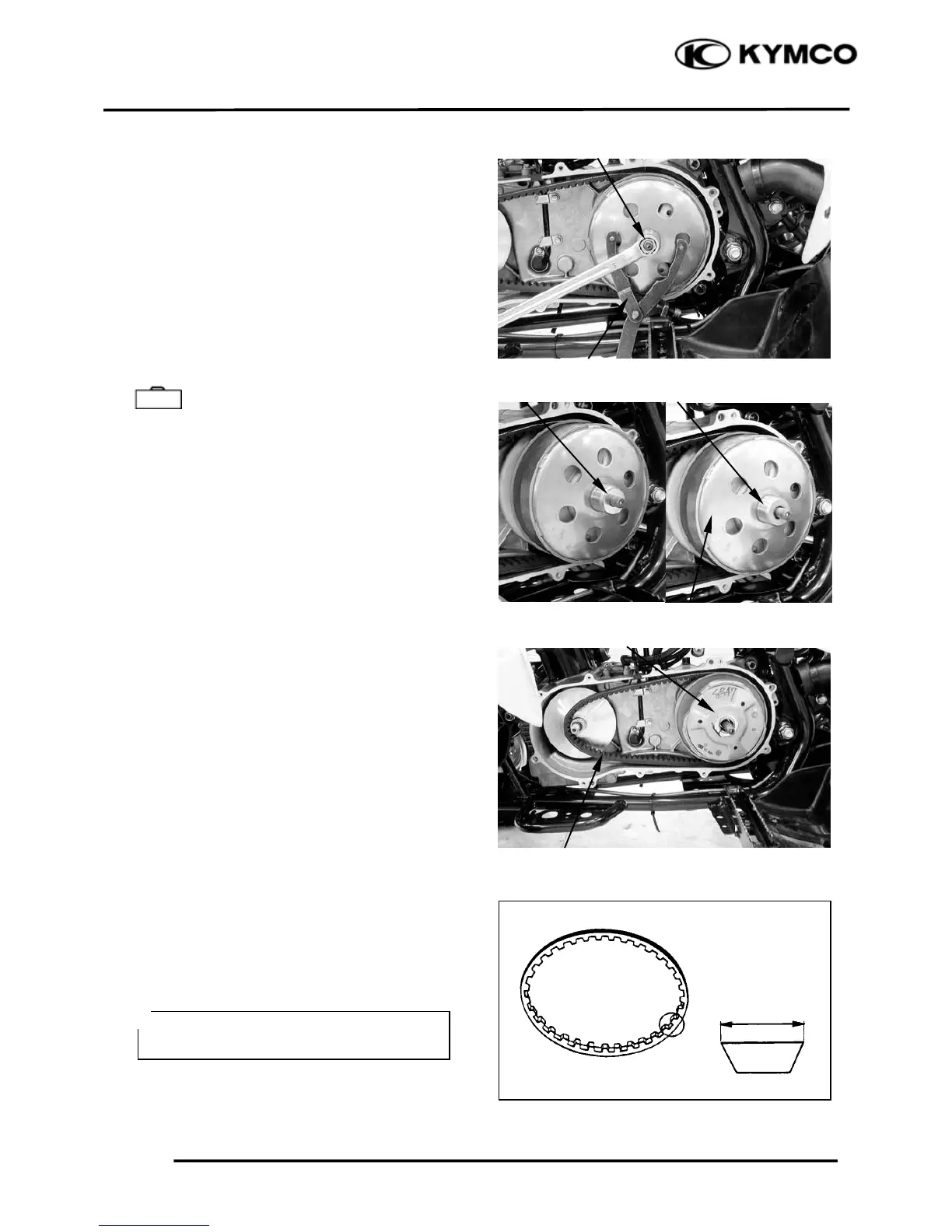

CLUTCH/DRIVEN PULLEY
REMOVAL
Remove the left crankcase cover. (Refer to
the “LEFT CRANKCASE COVER
REMOVAL” section in the chapter 9)
Remove the drive pulley. (Refer to the
“DRIVE PULLEY REMOVAL” section in
the chapter 9)
Hold the clutch outer with the universal
holder and remove the clutch outer nut.
Universal Holder E017
Remove the wash, collar and clutch outer.
Remove the clutch/driven pulley and drive
belt.
DRIVE BELT INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Measure the drive belt width.
Service Limit: 22.0mm replace if below
Washe
r
N
u
t
Universal Holde
r
Colla
r
Clutch Oute
r
Clutch/Driven Pulley
Drive Bel
t
Special
Use specified genuine parts for replace-
ment.
＊
