KYMCO Mongoose/KXR 250

2. FRAME COVERS/EXHAUST MUFFLER
2-3
Mongoose/KXR 250

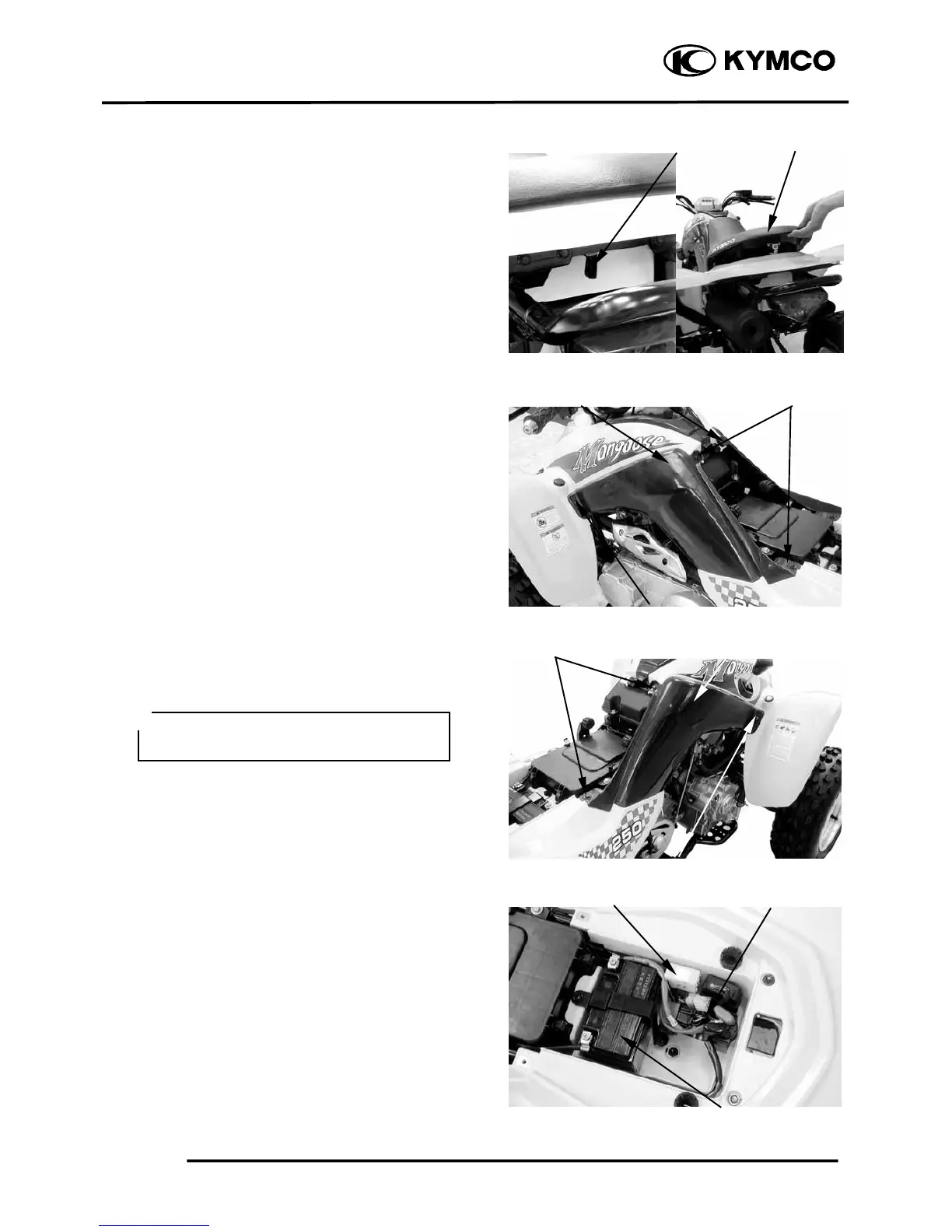

FRAME COVERS
SEAT REMOVAL
Pull the lever right and pull up the seat at
the rear.
Remove the seat.
LEFT/RIGHT FRAME COVER
REMOVAL
Remove the seat. (See page 2-3)
Remove the screw and two bolts at the left
frame cover, then remove left frame cover.
Remove the screw and two bolts at the right
frame cover, then remove right frame cover.
REAR FENDER REMOVAL
Remove seat. (See page 2-3)
Remove right and left frame cover. (See
page 2-3)
Remove battery. (See page 16-4)
Remove the fuse box.
Remove the screw attaching the ignition
unit/change gear control unit/starter relay
holder and remove holder.
Sea
t
Frame Lef
t
Cove
r
Bol
t
s
Screw
Battery
Bolts
During removal, do not pull the joint
claws forcedly to avoid damage.
＊
Leve
r
Screw
Frame Righ
t
Cove
r
Screw and Holde
r
Fuse Box
