KYMCO Mongoose/KXR 250

5. FUEL SYSTEM
5-8
Mongoose/KXR 250
Pry off the needle retainer and remove the jet
needle.
Check the throttle valve and jet needle for
wear or damage.
ASSEMBLY
Reverse the “DISASSEMBLY” procedures.
Install the throttle valve into the carburetor
body.
CARBURETOR
REMOVAL
Remove the fuel tank and carburetor cap.
(Refer to “FUEL TANK” and “THROTTLE
VALVE DISASSEMBLY” section in the
chapter 5)
Loosen the drain screw to drain the gasoline
from the float chamber.
Loosen the screw on the lock plate for
disconnect the choke cable.

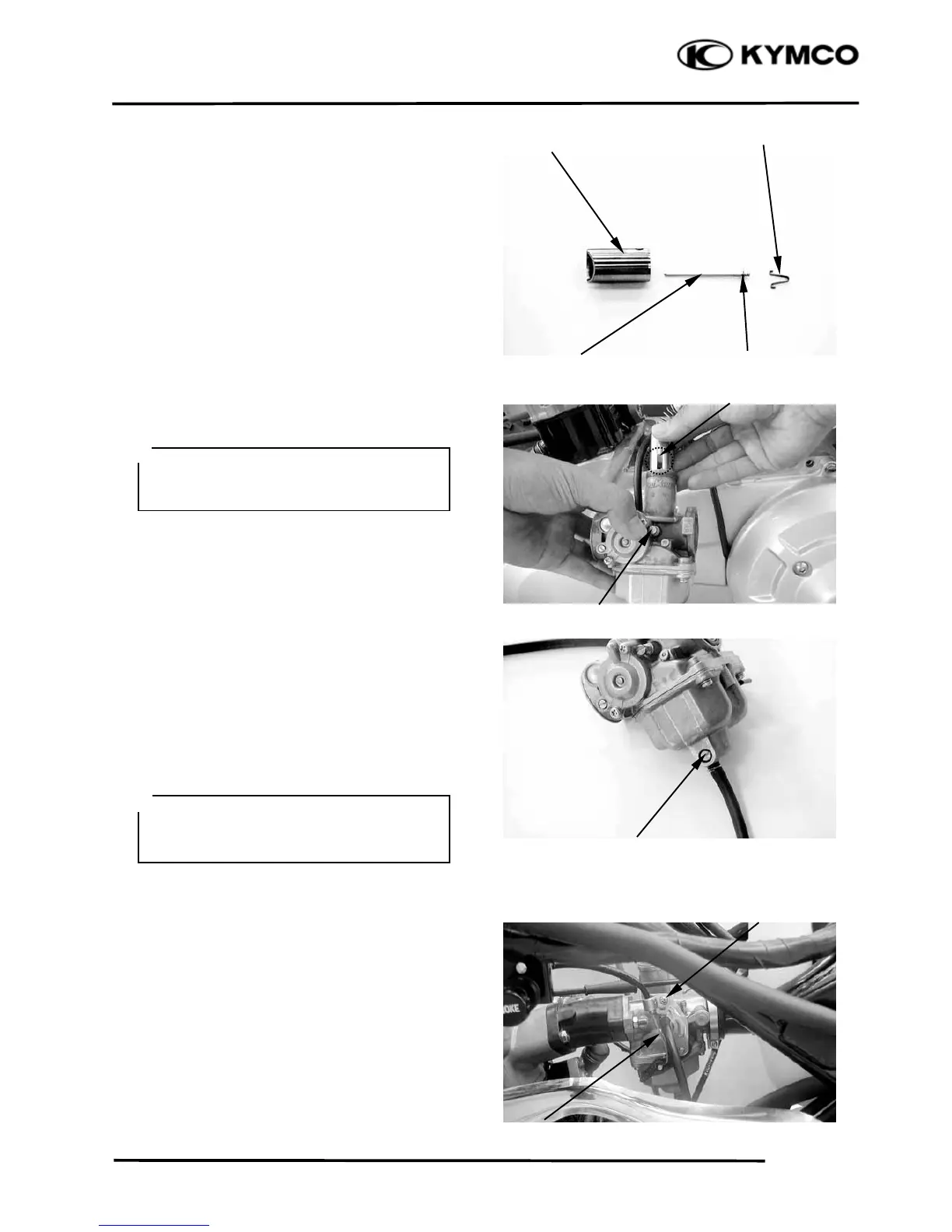

Throttle Valve
N
eedle Retaine
r
Jet Needle Clip
Fuel Drain Plu
g
Choke Cable
Screw
Align the groove in the throttle valve
with the throttle stop screw on the
carburetor body.
＊
Throttle Stop Screw
Groove
• Keep sparks and flames away from the
work area.
• Drain gasoline into a clean container.
＊
