9.DRIVE AND DRIVEN PULLEYS
9-5
Mongoose/KXR 250

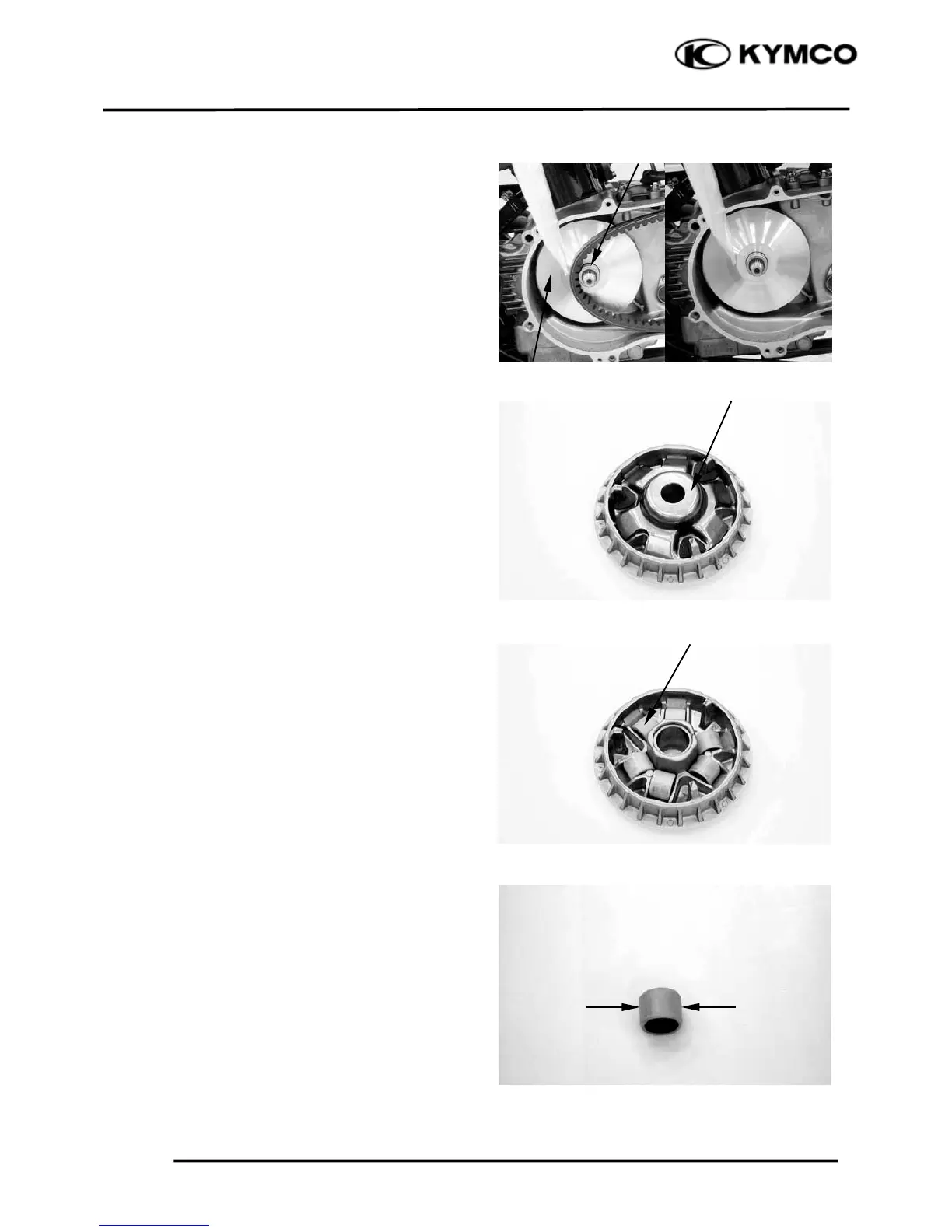

Remove the movable drive face assembly and
drive pulley collar.
DISASSEMBLY
Remove the ramp plate.
Remove the six weight rollers.
INSPECTION
Check each weight roller for wear or damage.
Measure each weight roller O.D.
Service Limit: 22.8mm replace if below.
Drive Pulley Colla
r
Drive Face
Ramp Plate
Rolle
r
