11.CRANKCASE/CRANKSHAFT/
BALANCE SHAFT
11-3
Mongoose/KXR 250
CRANKCASE/CRANKSHAFT/BA
LANCE SHAFT

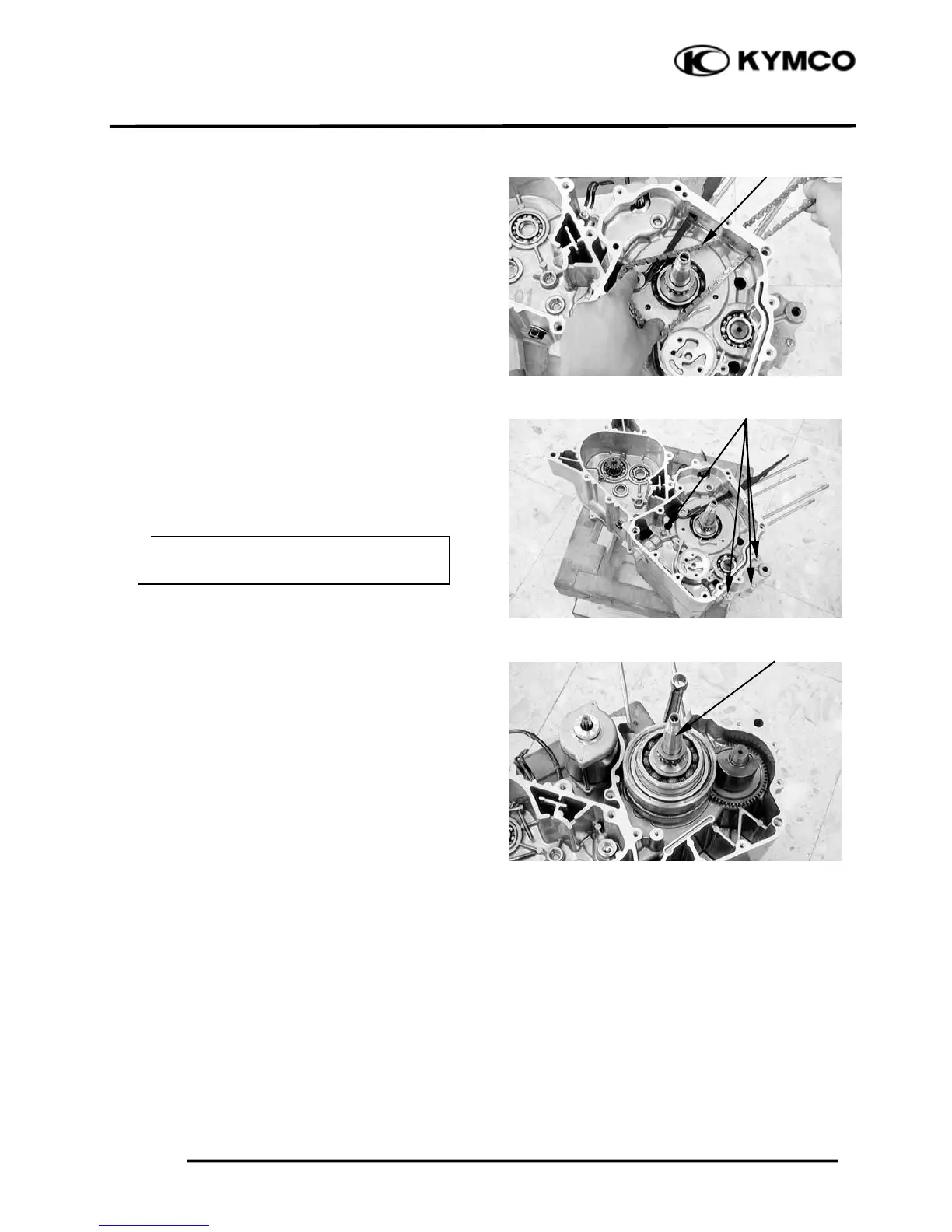

REMOVAL
Remove the timing chain from right
crankcase.
Remove the left and right crankcase
attaching bolts.
Separate the left and right crankcase halves.
Remove the gasket and dowel pins.
Remove the crankshaft from the left
crankcase.
Timing Chain
Do not damage the crankcase gasket
surface.
＊
Bolts
Crankshaf
