14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-15
Mongoose/KXR 250

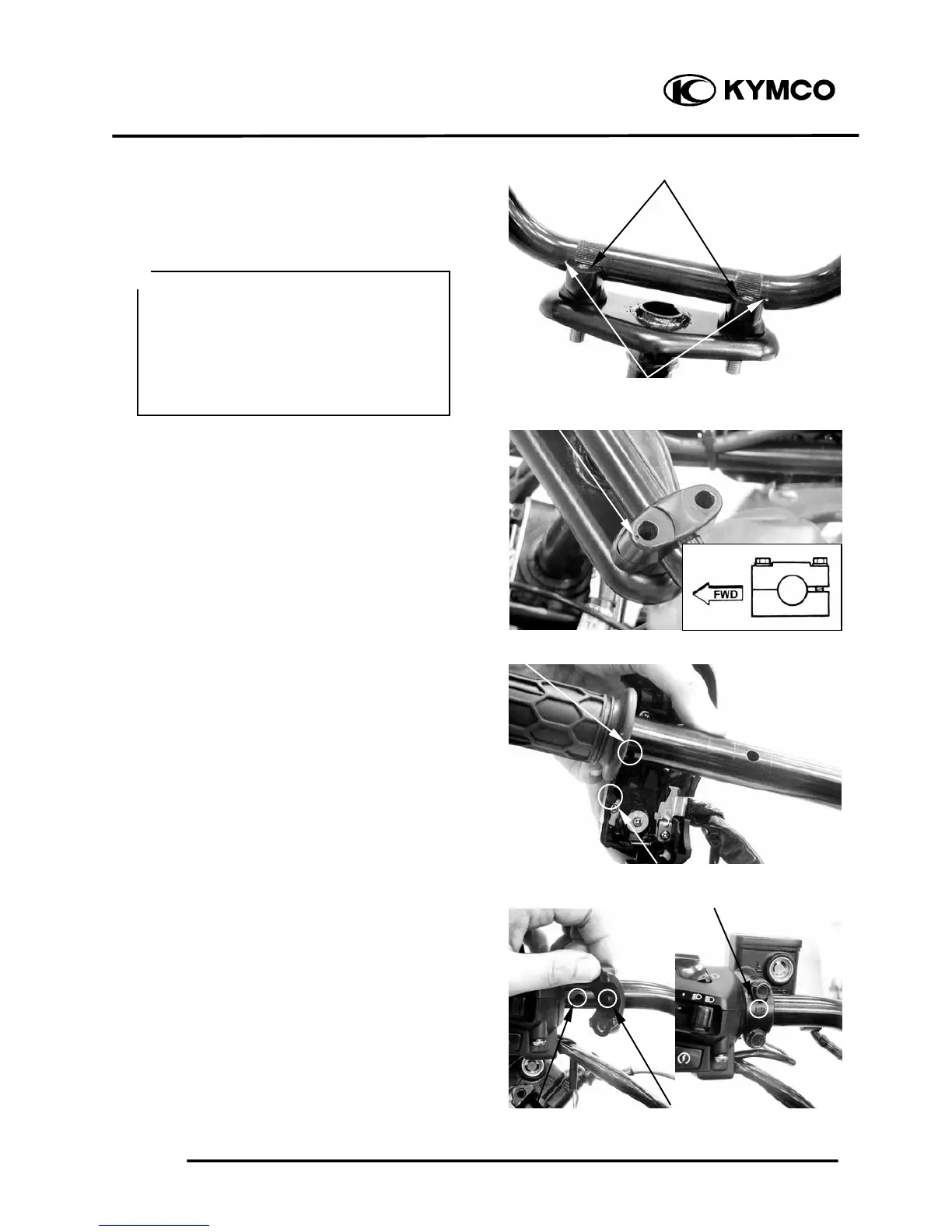

INSTALLATION
Install handlebar and handlebar holder, then
tighten the four bolts.
Torque: 1.8～2.5kgf-m
Install the handlebar switch by aligning the
pin on the handlebar switch with the hole in
the handlebar and then tighten the two
screws.
Place the right and left brake master
cylinder on the handlebar and install the
master cylinder holder with the “UP” mark
facing up, aligning the punch mark on the
handlebar with the holder joint seam. First
tighten the upper bolt and then tighten the
lower blot.
Torque: 0.8 ~ 1.2kg-m
• Align the mark on the handlebar with
the lower handlebar holder surface.
• Be sure the upper handlebar holder
mark face to front.
• Fist tighten the bolts on the front side
of the handlebar holder, and then
tighten the bolts on the rear side.
＊
Mark
Holder Surface
Forward Mark
Hole
Pin
Joint Sea
To Next Page
